Engine Control Harness

Fig 1: Identifying Engine Control Harness Routing (I35)
G00103790Courtesy of NISSAN MOTOR CO., U.S.A.
ENGINE CONTROL HARNESS CONNECTOR IDENTIFICATION (I35)

Connector Name (1) Color Number Of Pins Description
Engine Control Harness
F8 Black 2 To F131
F9 Brown 3 Rear Electronic Controlled Engine Mount
F10 Gray 10 To F151
F14 Brown 8 To F91
F15 Gray 5 Mass Airflow Sensor
F17 Gray 8 To E8
F18 Black 8 To E15
F22 Gray 2 ECT Sensor
F23 Brown 3 Front Electronic Controlled Engine Mount
F25 Green 4 To F171
F28 Gray 2 Injector No. 6
F29 Black 2 VIAS Control Solenoid Valve
F30 Gray 3 Ignition Coil No. 6
F31 Gray 3 Ignition Coil No. 4
F34 White 2 Condenser
F35 Gray 3 Ignition Coil No. 2
F36 Gray 2 Injector No. 4
F37 Gray 2 Injector No. 2
F39 ..... ..... Engine Ground
F40 ..... ..... Engine Ground
F41 ..... ..... Engine Ground
F42 ..... ..... Engine Ground
F46 Blue 12 Joint Connector No. 18
F48 Gray 111 ECM
F49 White 20 To M81
F50 Gray 24 TCM
F51 White 24 TCM
F53 White 18 To M223
F54 Blue 12 Joint Connector No. 17
F55 Black 3 Power Steering Pressure Sensor
F56 Green 8 To F197
F57 Green 6 To F221
F58 Blue 4 To F211
F59 Light Blue 3 HO2S 1 (Bank 1)
F60 Light Blue 3 HO2S 1 (Bank 2)
F61 Blue 4 HO2S 2 (Bank 1)
F62 Black 2 Intake Valve Timing Control Solenoid Valve (Bank 2)
F63 Green 6 Electric Throttle Control Actuator
F64 Black 3 Camshaft Position Sensor (PHASE) (Bank 2)
F65 Gray 8 To F114
F66 White 18 To M229
F67 White 20 To M230
F68 Green 4 HO2S 2 (Bank 2)
Engine Control Sub-Harness No. 1
F91 Brown 8 To F14
F92 Black 8 Terminal Cord Assembly
Engine Control Sub-Harness No. 2
F112 Black 3 Revolution Sensor
F113 Gray 2 Vehicle Speed Sensor
F114 Gray 8 To F65
F115 Black 3 Powertrain Revolution Sensor
Engine Control Sub-Harness No. 3
F131 Black 2 To F8
F132 Gray 2 Knock Sensor
Engine Control Sub-Harness No. 4
F151 Gray 10 To F10
F152 Black 10 Park/Neutral Position Switch
Engine Control Sub-Harness No. 5
F171 Green 4 To F25
F173 Black 3 Crankshaft Position Sensor (POS)
Engine Control Sub-Harness No. 6
F192 Gray 2 Injector No. 1
F193 Gray 2 Injector No. 3
F194 Gray 2 Injector No. 5
F197 Green 8 To F56
F198 Black 1 Oil Pressure Switch
F199 Blue 2 EVAP Canister Purge Volume Control Valve
F200 Green 2 Intake Valve Timing Control Solenoid Valve (Bank 1)
Engine Control Sub-Harness No. 7
F211 Blue 4 To F58
F212 Green 3 Camshaft Position Sensor (PHASE) (Bank 1)
Engine Control Sub-Harness No. 8
F221 Green 6 To F57
F222 Gray 3 Ignition Coil No. 1
F223 Gray 3 Ignition Coil No. 3
F224 Gray 3 Ignition Coil No. 5
(1) For locations, see Fig 2 .

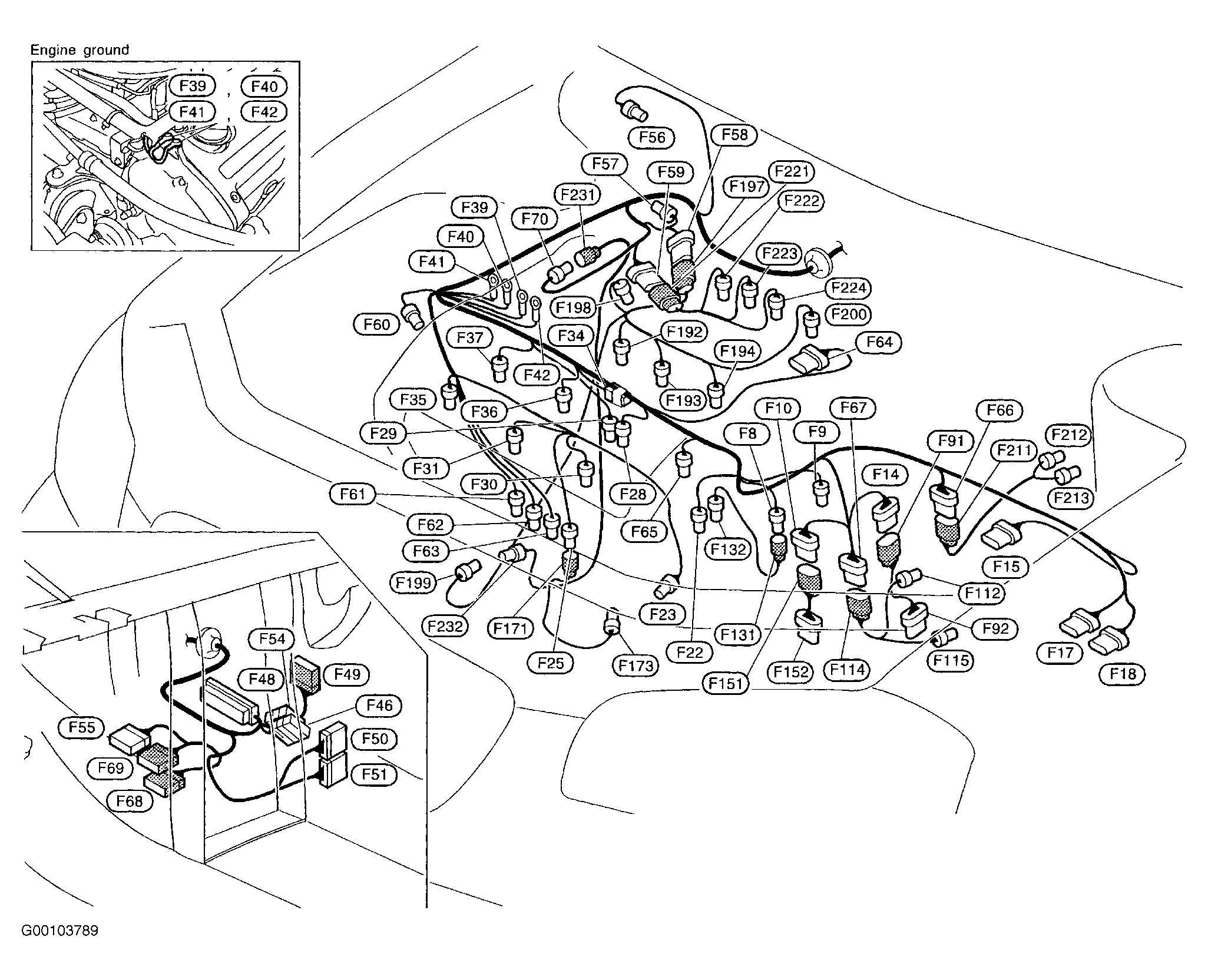

Fig 2: Identifying Engine Control Harness Routing (Maxima)
G00103789Courtesy of NISSAN MOTOR CO., U.S.A.
ENGINE CONTROL HARNESS CONNECTOR IDENTIFICATION (MAXIMA)

Connector Name (1) Color Number Of Pins Description
Engine Control Harness
F8 Black 2 To F131
F9 Brown 3 Rear Electronic Controlled Engine Mount (With A/T)
F10 Gray 10 To F151 (With A/T)
F14 Brown 8 To F91 (With A/T)
F15 Gray 5 Mass Airflow Sensor
F17 Gray 8 To E8
F18 Black 8 To E15
F22 Gray 2 ECT Sensor
F23 Brown 3 Front Electronic Controlled Engine Mount (With A/T)
F25 Green 4 To F171
F28 Gray 2 Injector No. 6
F29 Black 2 VIAS Control Solenoid Valve
F30 Gray 3 Ignition Coil No. 6
F31 Gray 3 Ignition Coil No. 4
F34 White 2 Condenser
F35 Gray 3 Ignition Coil No. 2
F36 Gray 2 Injector No. 4
F37 Gray 2 Injector No. 2
F39 ..... ..... Engine Ground
F40 ..... ..... Engine Ground
F41 ..... ..... Engine Ground
F42 ..... ..... Engine Ground
F46 Blue 12 Joint Connector No. 18
F48 Gray 111 ECM
F49 White 20 To M81
F50 Gray 24 TCM (With A/T)
F51 White 24 TCM (With A/T)
F54 Blue 12 Joint Connector No. 19
F55 White 18 To M162
F56 Black 3 Power Steering Oil Pressure Sensor
F57 Light Blue 3 HO2S 1 (Bank 1)
F58 Green 8 To F197
F59 Green 6 To F221
F60 Green 2 Intake Valve Timing Control Solenoid Valve (Bank 2)
F61 Light Blue 3 HO2S 1 (Bank 2)
F62 Green 4 HO2S 2 (Bank 2)
F63 Blue 4 HO2S 2 (Bank 1)
F64 Green 6 Electric Throttle Control Actuator
F65 Black 3 Camshaft Position Sensor (PHASE) (Bank 2)
F66 Gray 6 To F211 (With M/T)
F67 Gray 8 To F114 (With A/T)
F68 White 18 To M161
F69 White 20 To M166
F70 Blue 4 To F231
Engine Control Sub-Harness No. 1
F91 Brown 8 To F14 (With A/T)
F92 Black 8 Terminal Cord Assembly (With A/T)
Engine Control Sub-Harness No. 2
F112 Black 3 Revolution Sensor (With A/T)
F114 Gray 8 To F67 (With A/T)
F115 Black 3 Powertrain Revolution Sensor
Engine Control Sub-Harness No. 3
F131 Black 2 To F8
F132 Gray 2 Knock Sensor
Engine Control Sub-Harness No. 4
F151 Gray 10 To F10 (With A/T)
F152 Black 10 Park/Neutral Position Switch (With A/T)
Engine Control Sub-Harness No. 5
F171 Green 4 To F25
F173 Black 3 Crankshaft Position Sensor (POS)
Engine Control Sub-Harness No. 6
F231 Blue 4 To F70
F232 Green 3 Camshaft Position Sensor (PHASE) (Bank 1)
Engine Control Sub-Harness No. 7
F211 Gray 6 To F66 (With M/T)
F212 Black 2 Back-Up Light Switch (With M/T)
F213 Black 2 Park/Neutral Position Switch (With M/T)
Engine Control Sub-Harness No. 8
F221 Green 6 To F59
F222 Gray 3 Ignition Coil No. 1
F223 Gray 3 Ignition Coil No. 3
F224 Gray 3 Ignition Coil No. 5
Engine Control Sub-Harness No. 9
F192 Gray 2 Injector No. 1
F193 Gray 2 Injector No. 3
F194 Gray 2 Injector No. 5
F197 Green 8 To F58
F198 Green 2 Intake Valve Timing Control Solenoid Valve (Bank 1)
F199 Black 1 Oil Pressure Switch
F200 Blue 2 EVAP Canister Purge Volume Control Solenoid Valve
(1) For locations, see Fig 2 .
