Component Locations

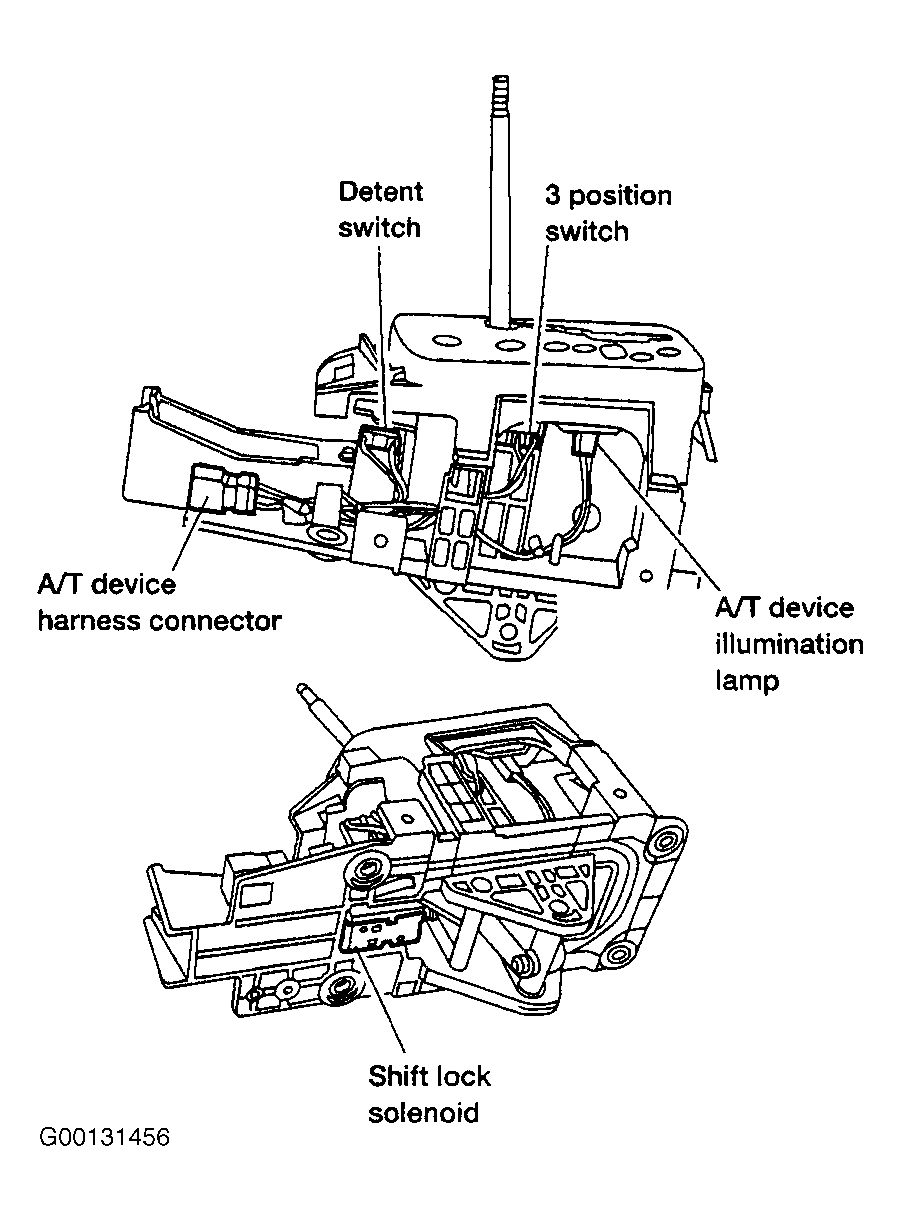

Fig 1: Locating Gearshift Assembly Shift Interlock Components (Altima)

Courtesy of NISSAN MOTOR CO., U.S.A.

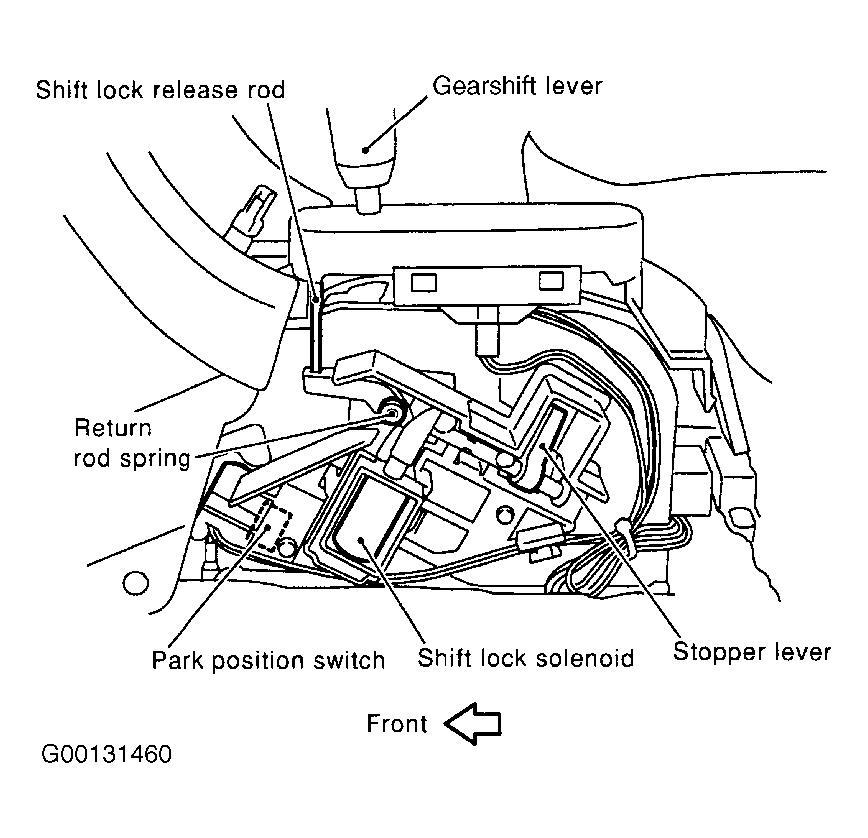

Fig 2: Locating Gearshift Assembly Shift Interlock Components (I35 & Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

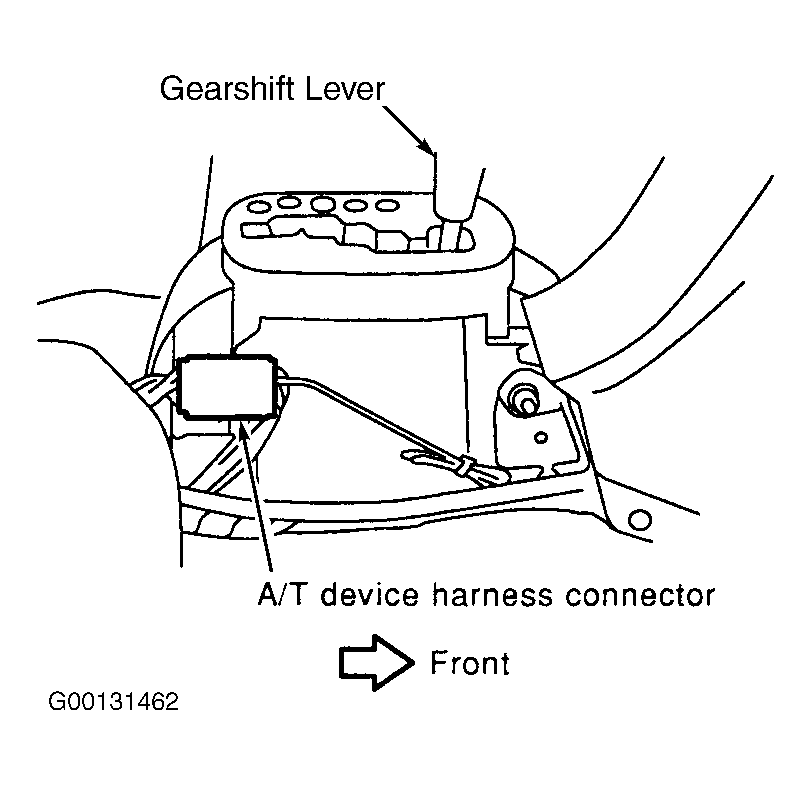

Fig 3: Locating Gearshift Lever Assembly A/T Device Connector (I35 & Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

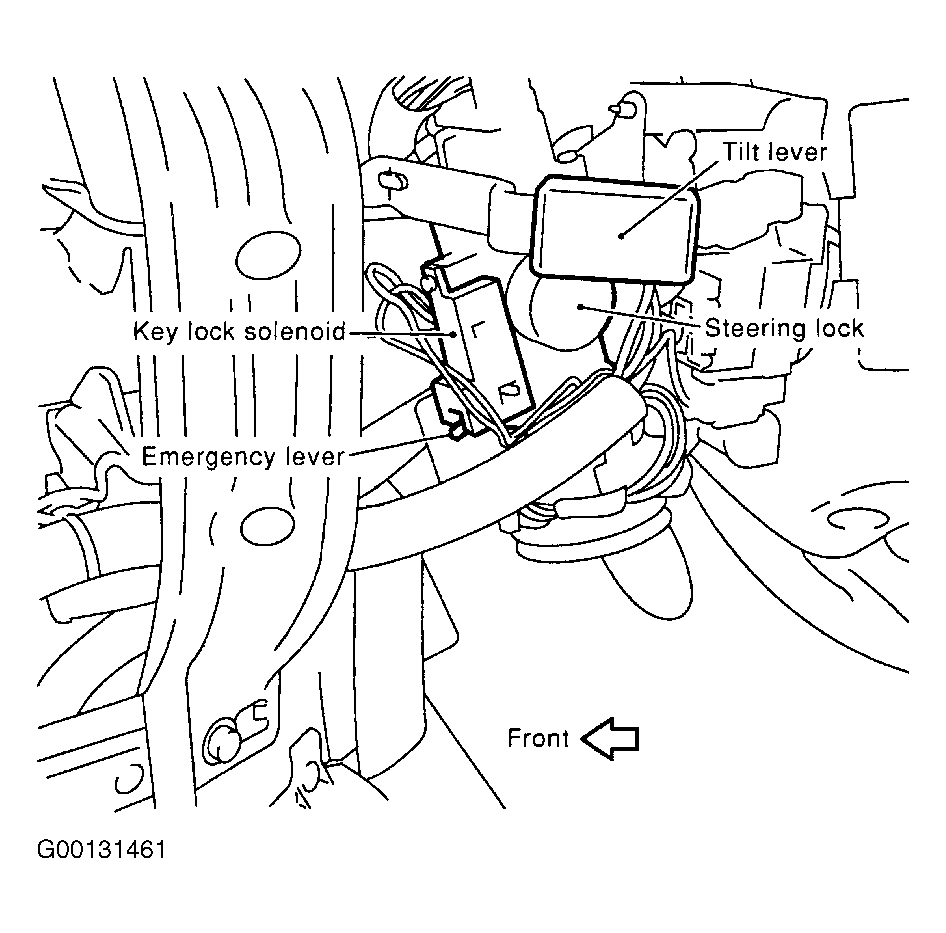

Fig 4: Locating Key Lock Solenoid (I35 & Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

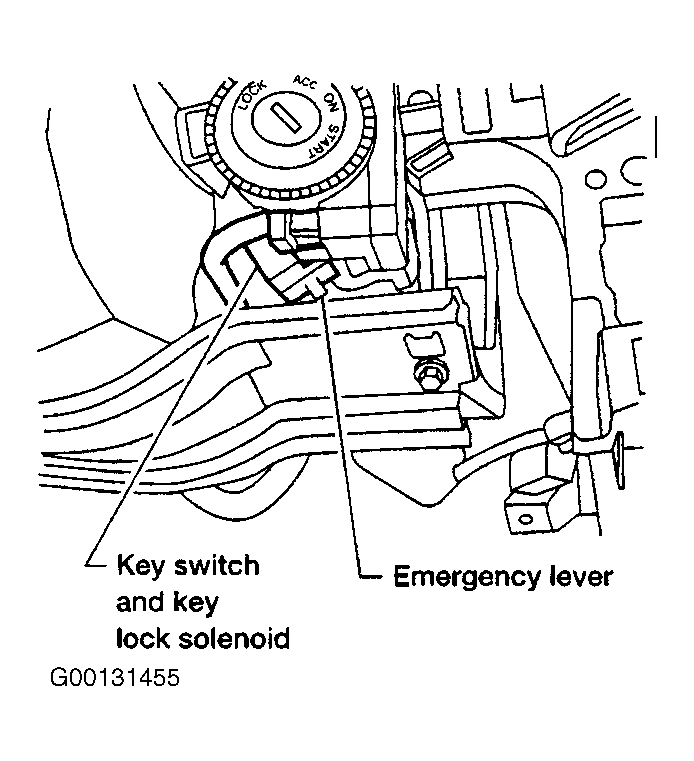

Fig 5: Locating Key Switch & Key Lock Solenoid (Altima)

Courtesy of NISSAN MOTOR CO., U.S.A.

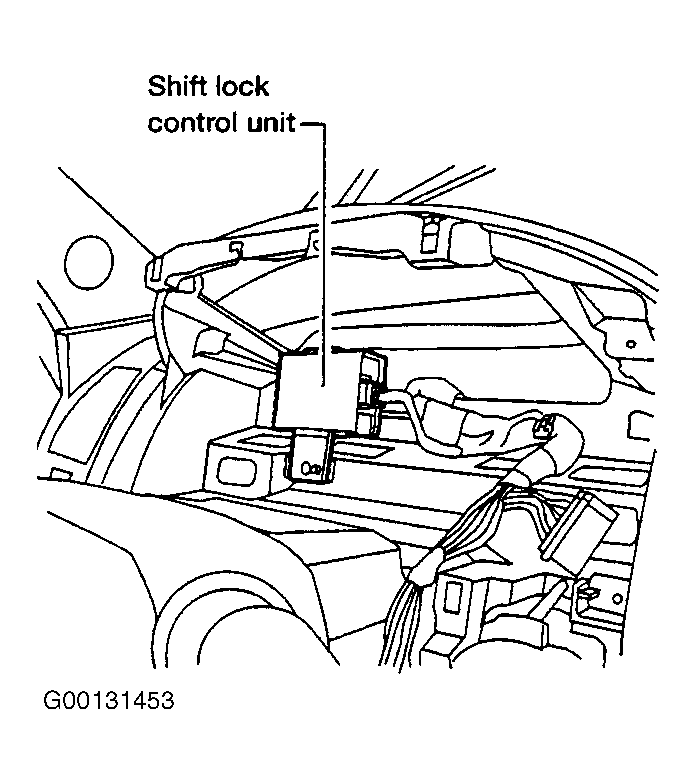

Fig 6: Locating Shift Lock Control Unit (Altima)

Courtesy of NISSAN MOTOR CO., U.S.A.

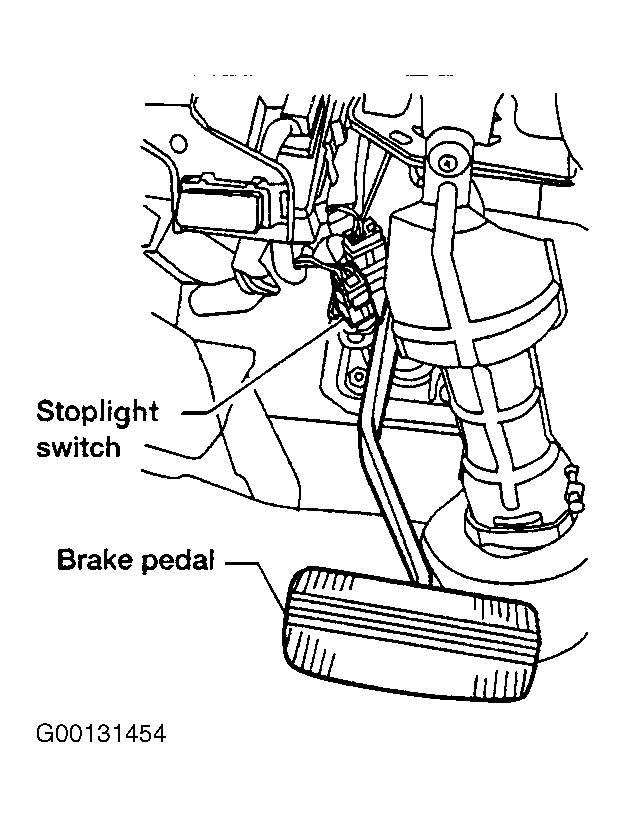

Fig 7: Locating Stoplight Switch (Altima)

Courtesy of NISSAN MOTOR CO., U.S.A.

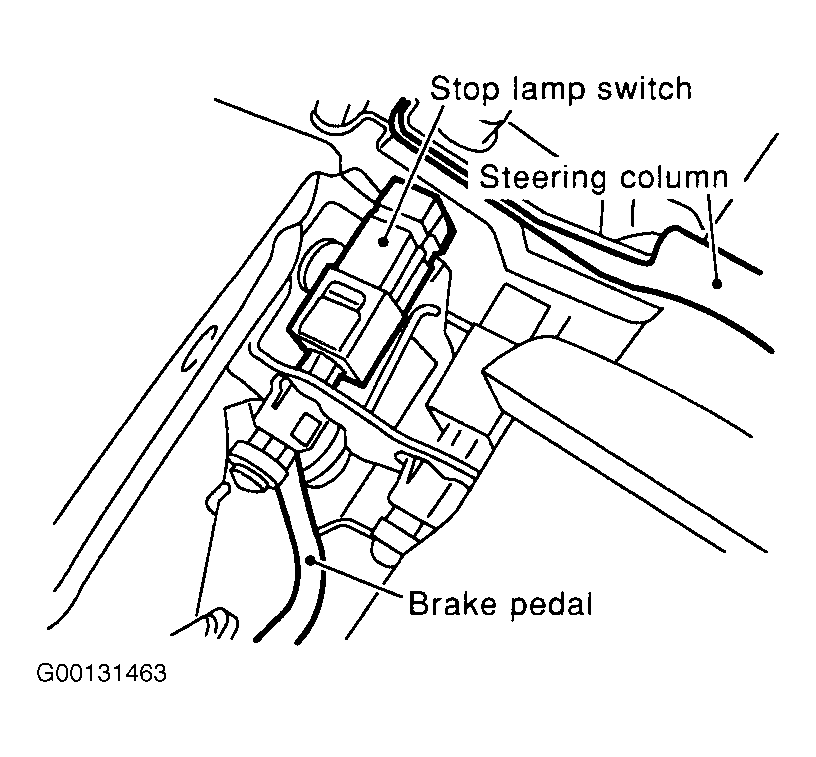

Fig 8: Locating Stoplight Switch (I35 & Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.
