Consult-II Basic Operation Procedure

With the ignition switch OFF, connect CONSULT-II to the data link connector on vehicle side, and turn the ignition switch ON.

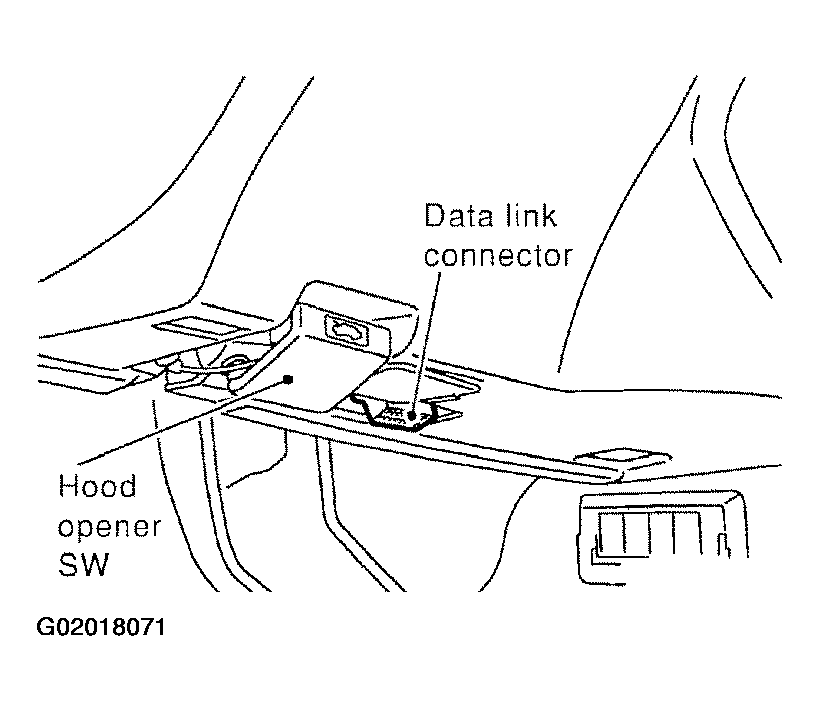

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

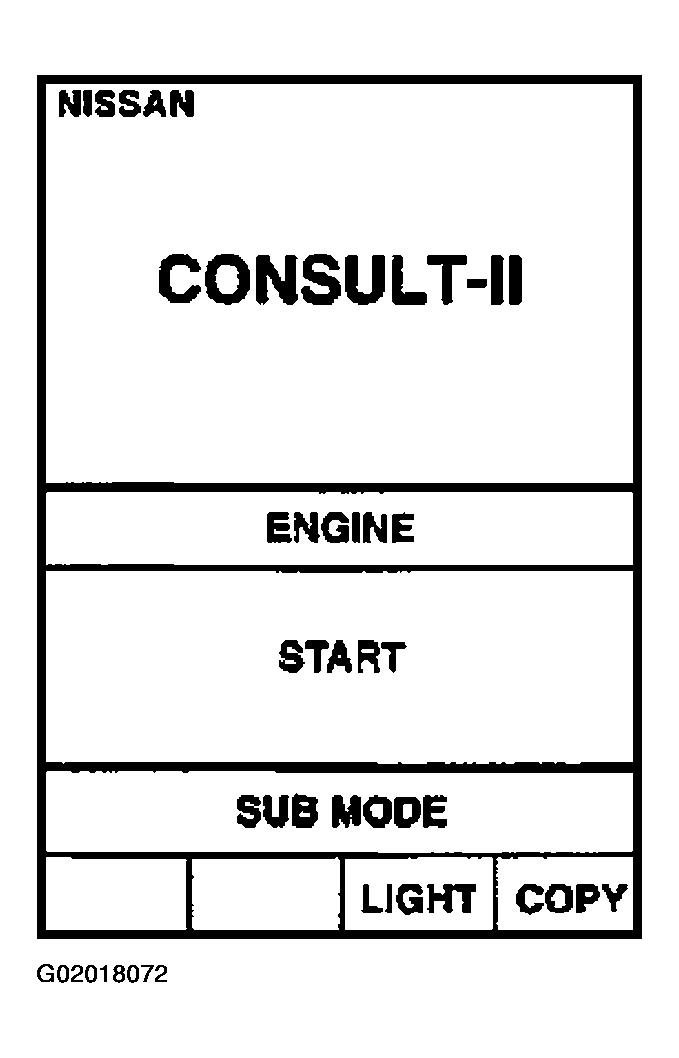

Fig 2: CONSULT-II Display - START
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IVMS".

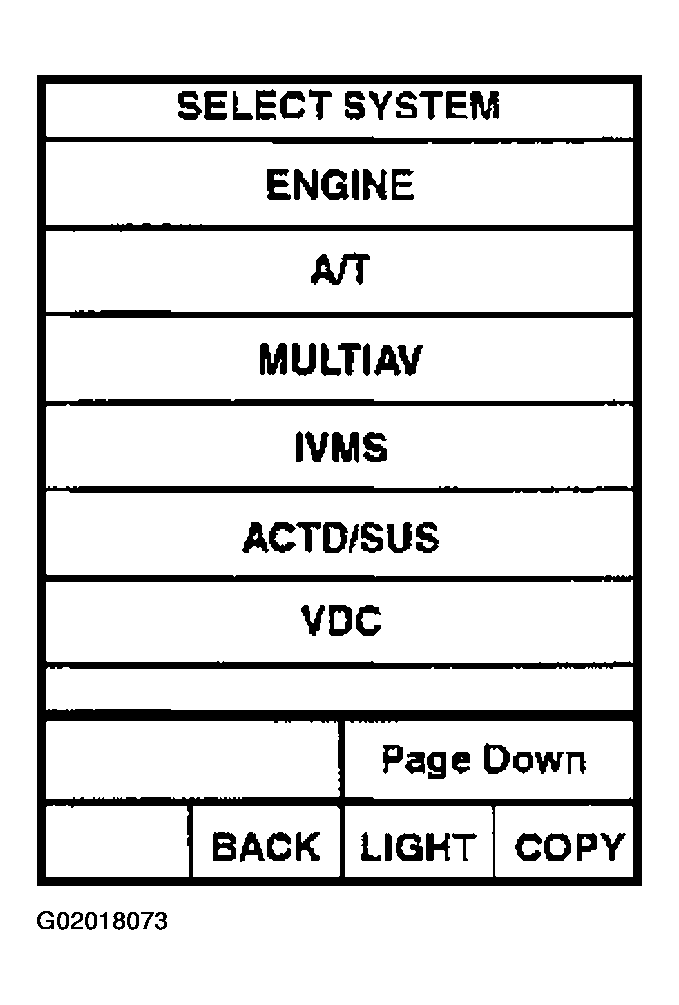

Fig 3: CONSULT-II Display - IVMS
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
Touch "OK". If the selection is wrong, touch "CANCEL".

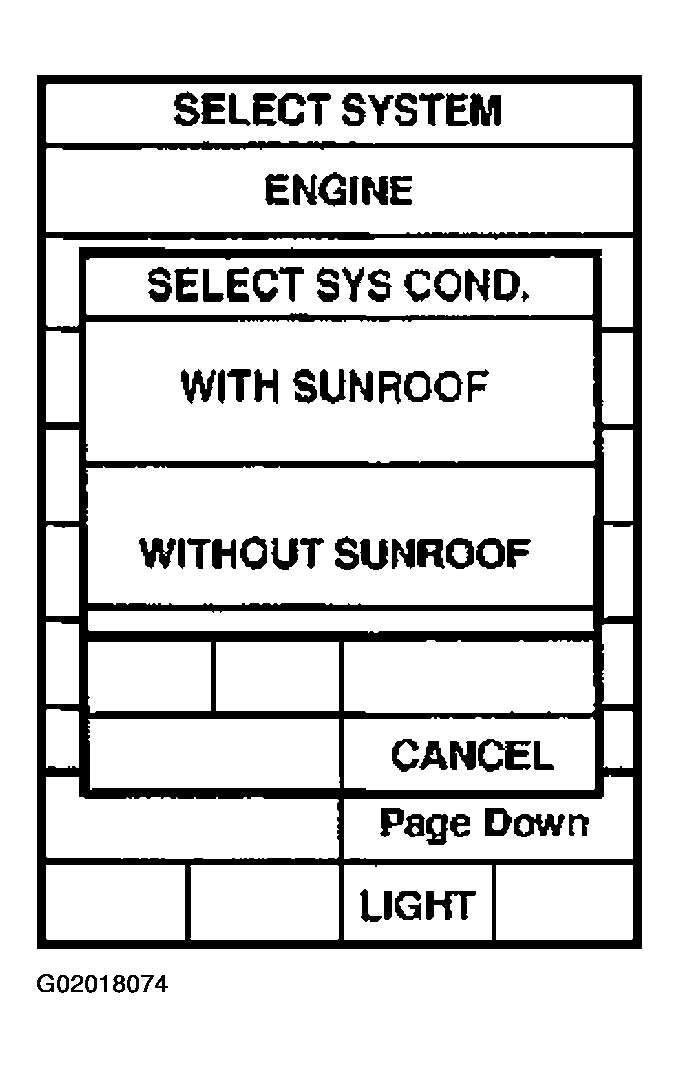

Fig 4: CONSULT-II Display - WITH SUNROOF Or WITHOUT SUNROOF
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
