Infiniti
>>
2002
>>
Q45
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Remote Keyless Entry System
>>
CONSULT-II Function
>>
Data Monitor
>>
Remote keyless entry item.
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Remote keyless entry item.

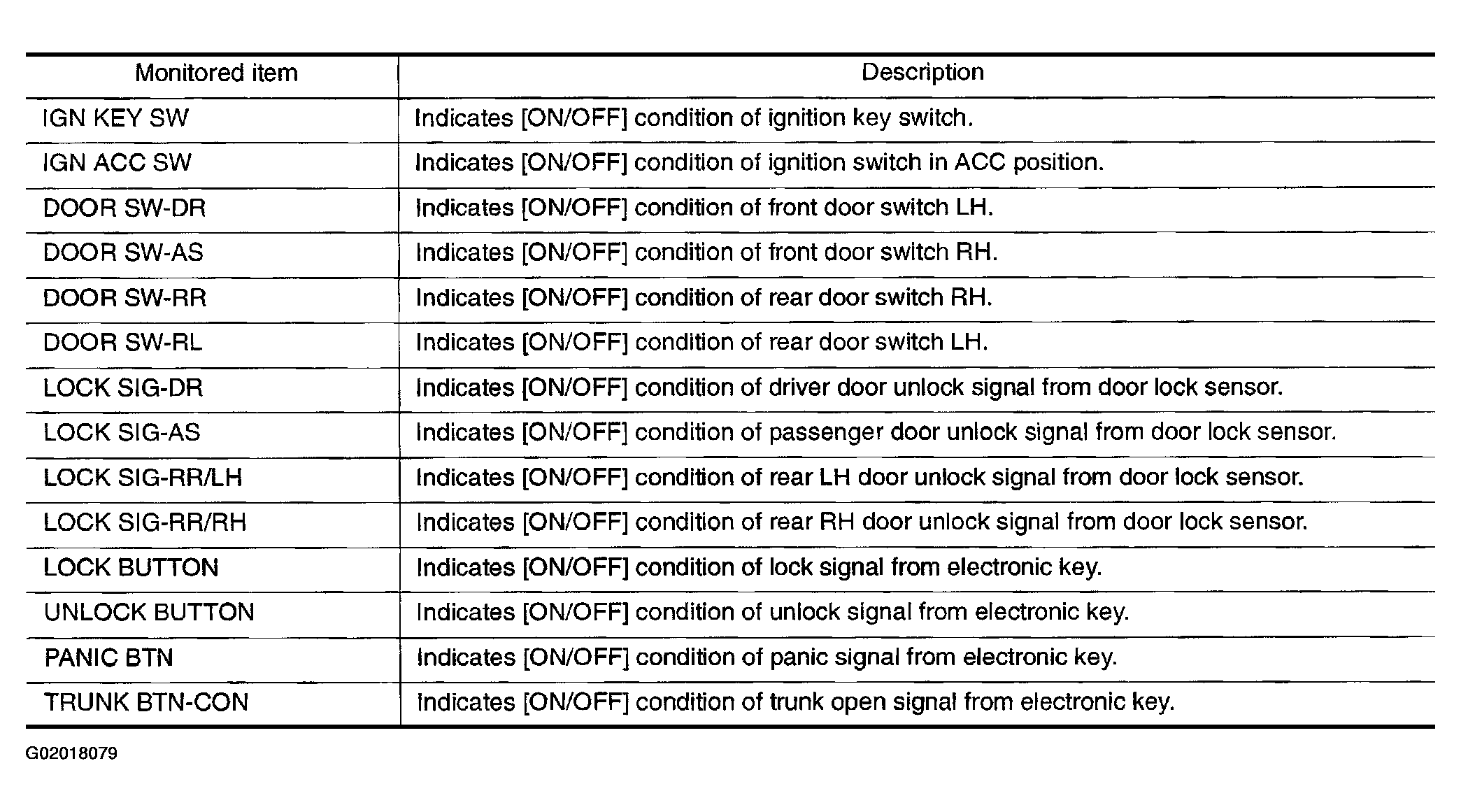

Fig 1: Remote Keyless Entry Item Description
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
