Remote Controller Battery Check

Remove battery and measure voltage across battery positive and negative terminals, "+" and "-".

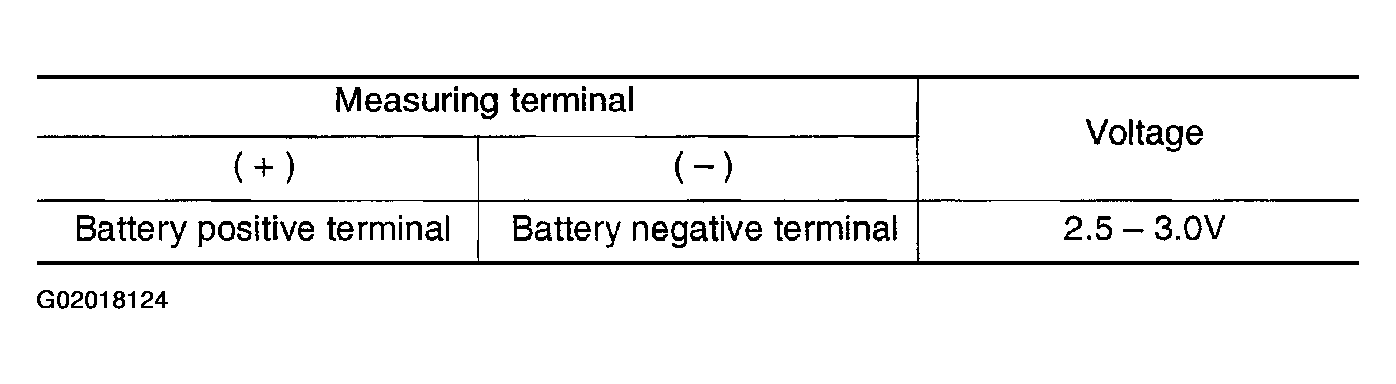

Fig 1: Remote Controller Battery Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.

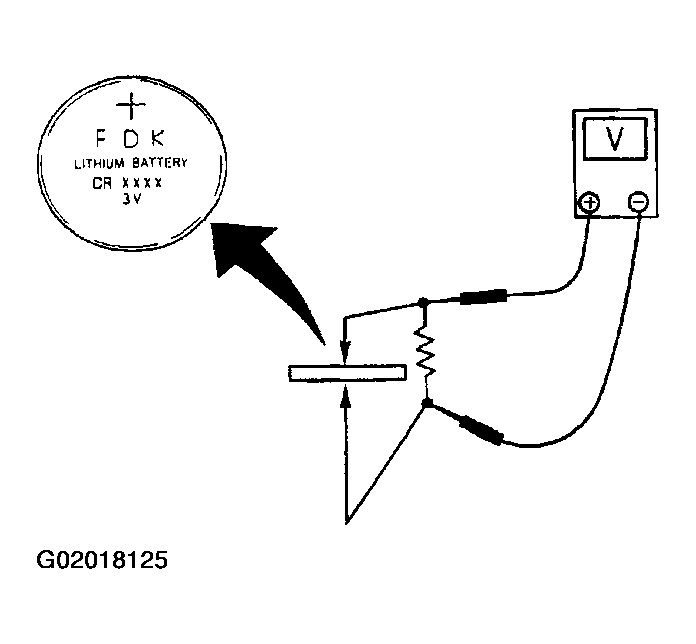

Fig 2: Checking Remote Controller Battery

Courtesy of NISSAN MOTOR CO., U.S.A.
