Key Switch Check

With CONSULT-II

• Check ignition key cylinder switch "IGN KEY SW" in "DATA MONITOR" mode with CONSULT-II. When key is inserted in ignition key cylinder:

IGN KEY SW ON

When key is removed from ignition key cylinder:

IGN KEY SW OFF

With out CONSULT-II

1. Disconnect BCM connector.
2. Check voltage between harness connector M4 terminals 69 (PU/W) and body ground.

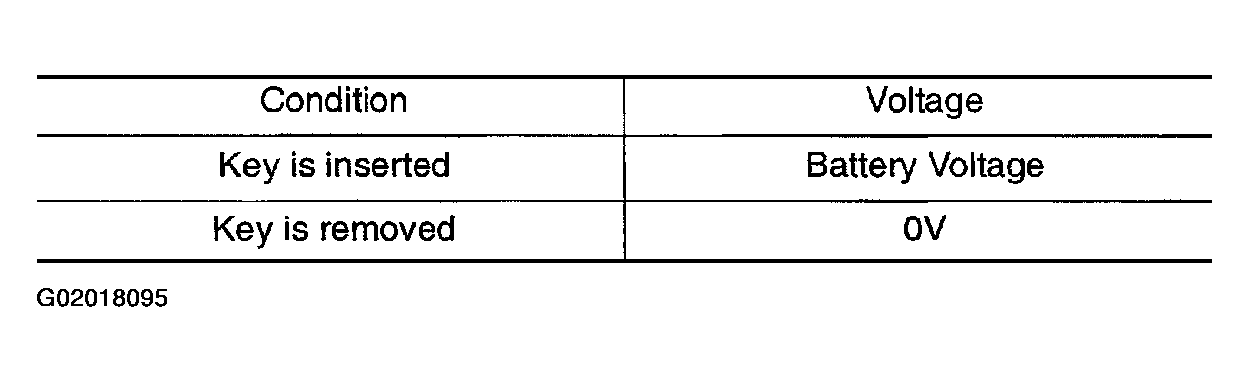

Fig 1: Key Switch Check Voltage Table

Courtesy of NISSAN MOTOR CO., U.S.A.

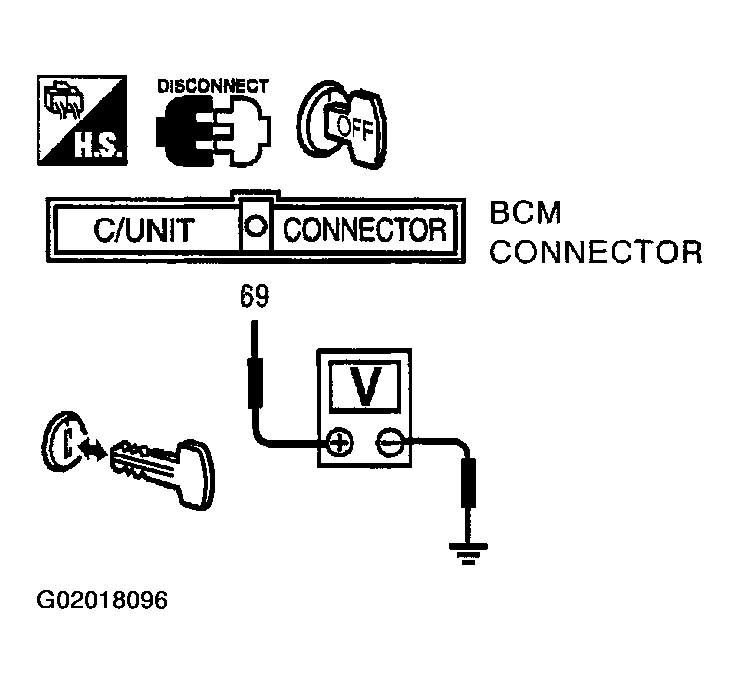

Fig 2: Checking Key Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG?

1. OK >> Key switch is OK.
2. NG >> GO TO 2.

1. Remove the key from the ignition key cylinder.
2. Disconnect key switch connector.
3. Check continuity BCM harness connector M4 terminal 69 (PU/W) and key switch harness connector M64 terminal 4 (PU/W).

   : Continuity should exist.

OK or NG?

1. OK >> GO TO 3.
2. NG >> Repair or replace harness.

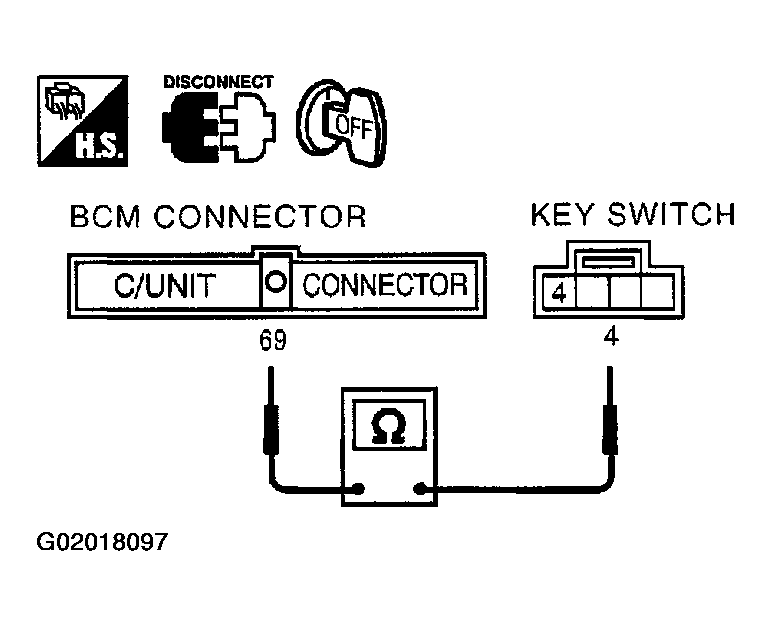

Fig 3: Checking Key Switch Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Check continuity between key switch terminals 3 and 4.

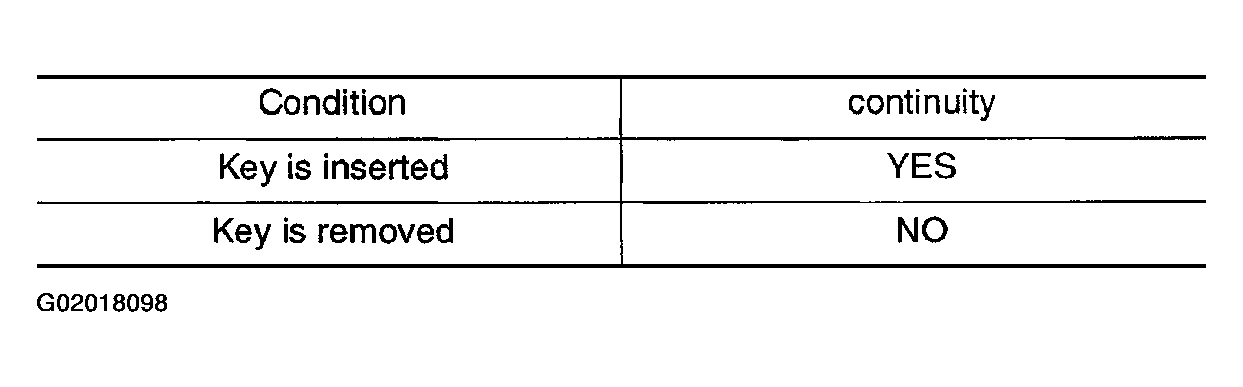

Fig 4: Key Switch Check Continuity Table

Courtesy of NISSAN MOTOR CO., U.S.A.

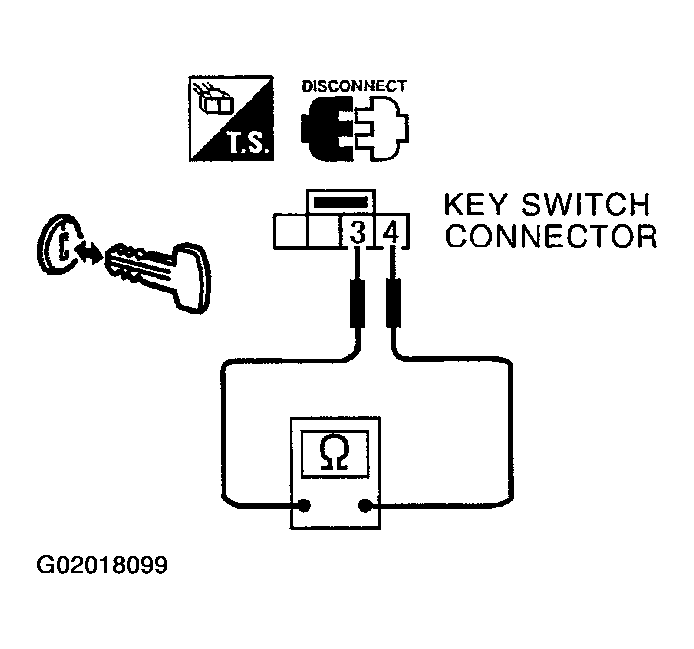

Fig 5: Checking Key Switch Terminals 3 And 4

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG?

1. OK >> Check harness for open or short between key switch and fuse.
2. NG >> Replace key switch.
