Passenger And Rear LH, RH Door Control Unit Terminal Reference Value

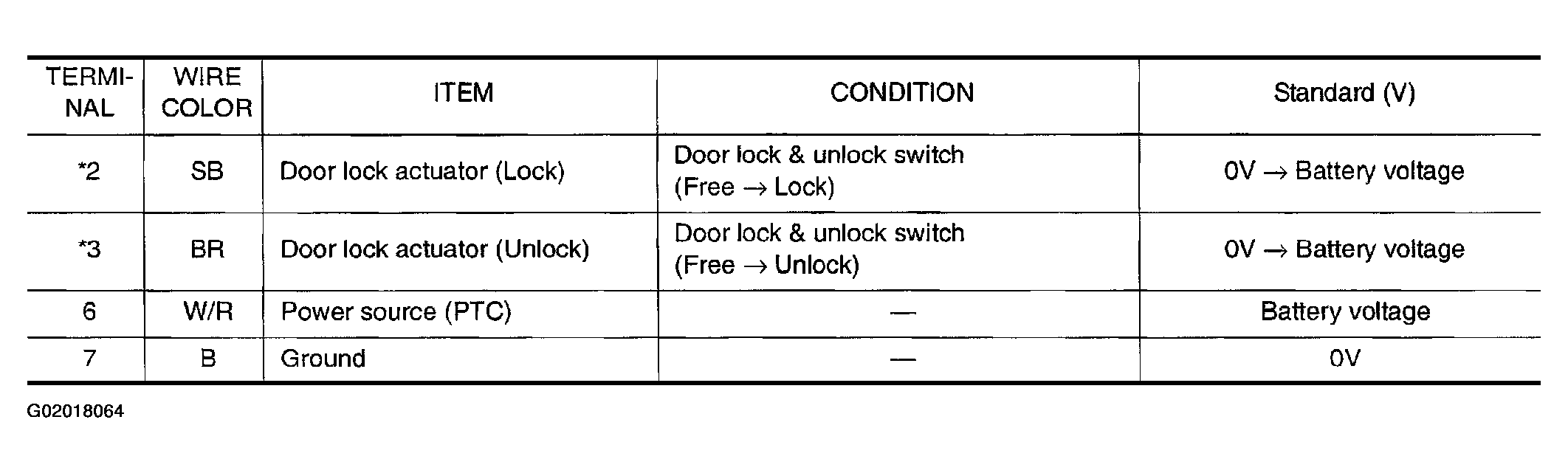

Fig 1: Passenger And Rear LH, RH Door Control Unit Terminal Reference Value (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

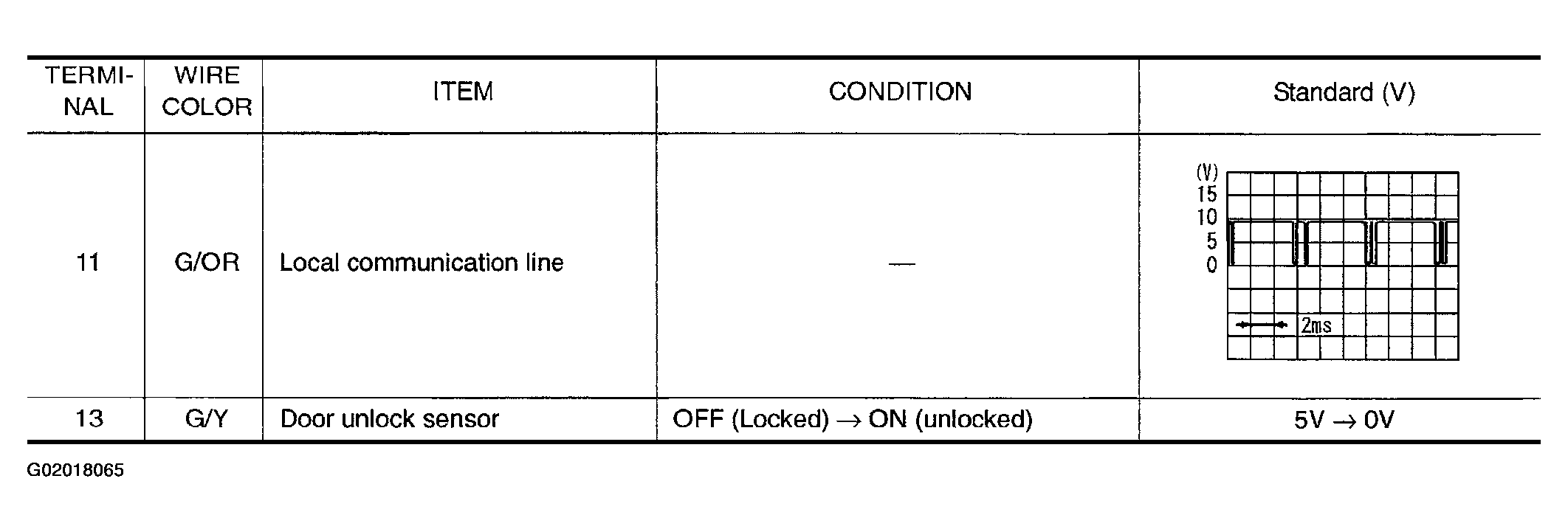

Fig 2: Passenger And Rear LH, RH Door Control Unit Terminal Reference Value (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: *Only for passenger door control unit.
