Filament Check

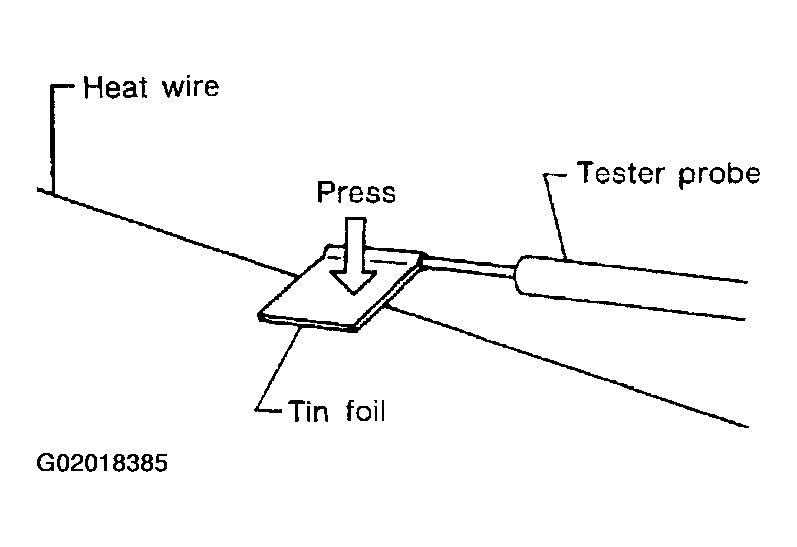

When measuring voltage, wrap tin foil around the top of the negative probe. Then press the foil against the wire with your finder.

Fig 1: Precautions For Measuring Voltage
Courtesy of NISSAN MOTOR CO., U.S.A.

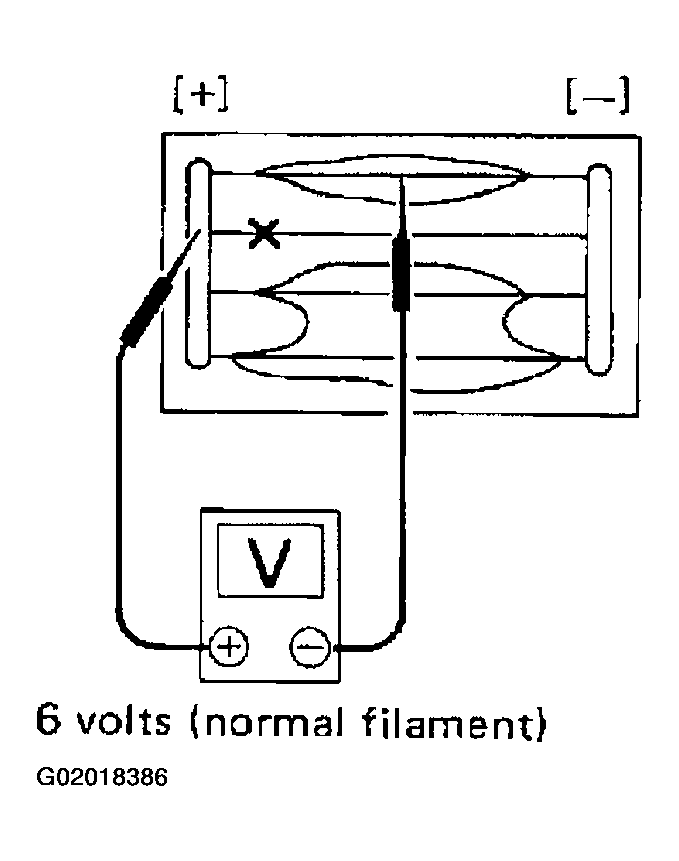

Attach probe circuit tester (in Volt range) to middle portion of each filament.

Fig 2: Attaching Probe Circuit Tester To Filament
Courtesy of NISSAN MOTOR CO., U.S.A.

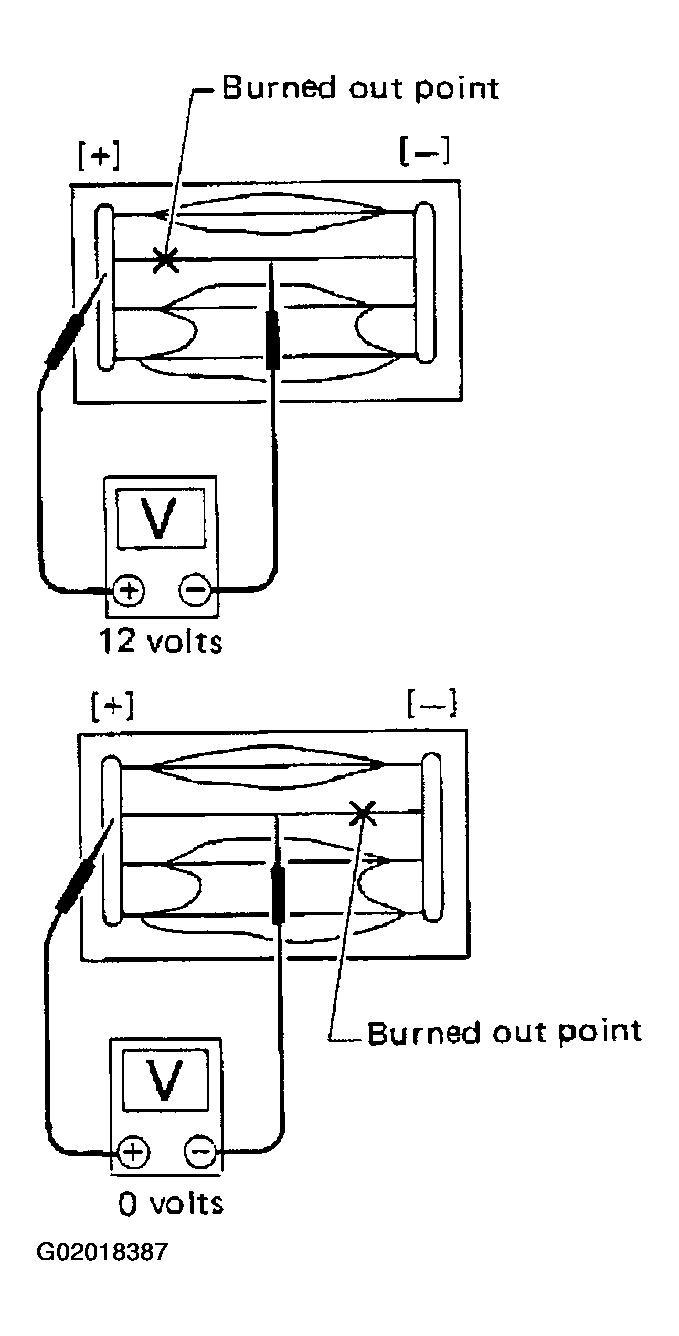

If a filament is burned out, circuit tester registers 0 or battery voltage.
To locate burned out point, move probe to left and right along filament. Test needle will swing abruptly when probe passes the point.

Fig 3: Checking Filament Condition
Courtesy of NISSAN MOTOR CO., U.S.A.
