Standards Using A Circuit Tester And Oscilloscope
NOTE:

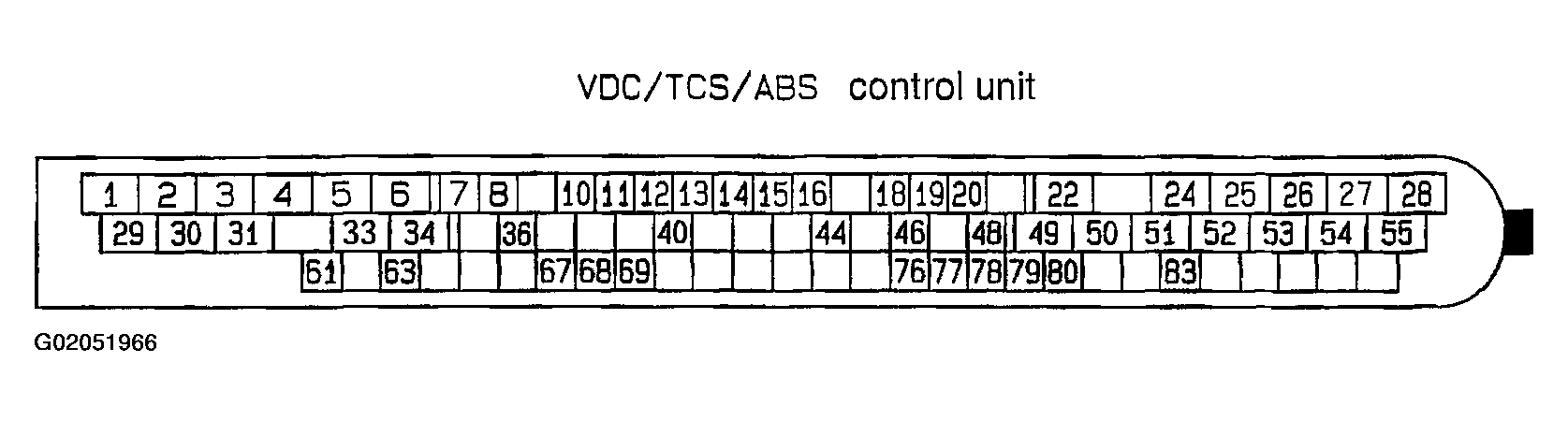

Connect the connectors for the VDC/TCS/ABS control unit and actuator, and turn the ignition switch ON.

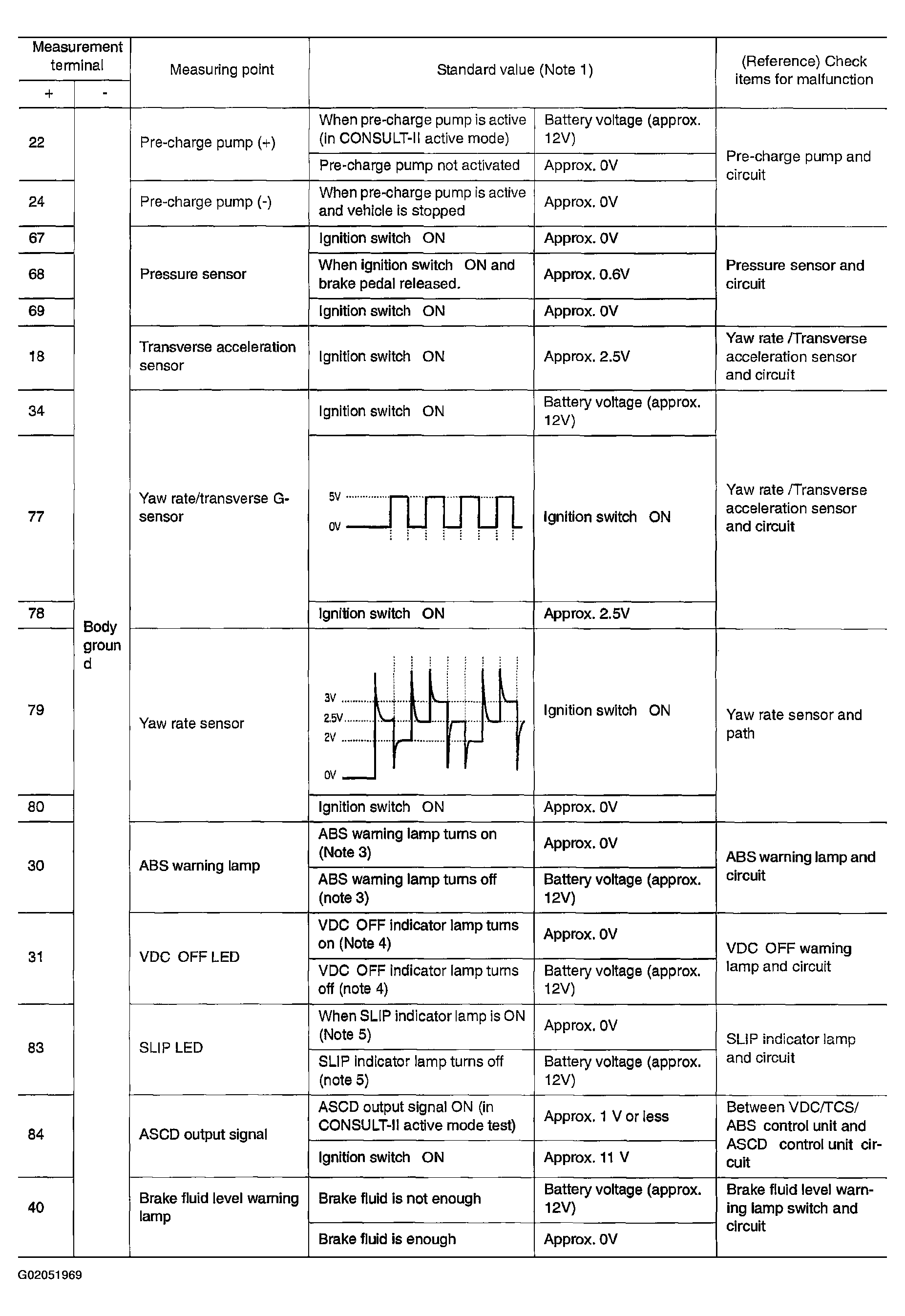

Fig 2: Displaying Input/Output Signal Standards - 1 Of 4 (See Notes
)

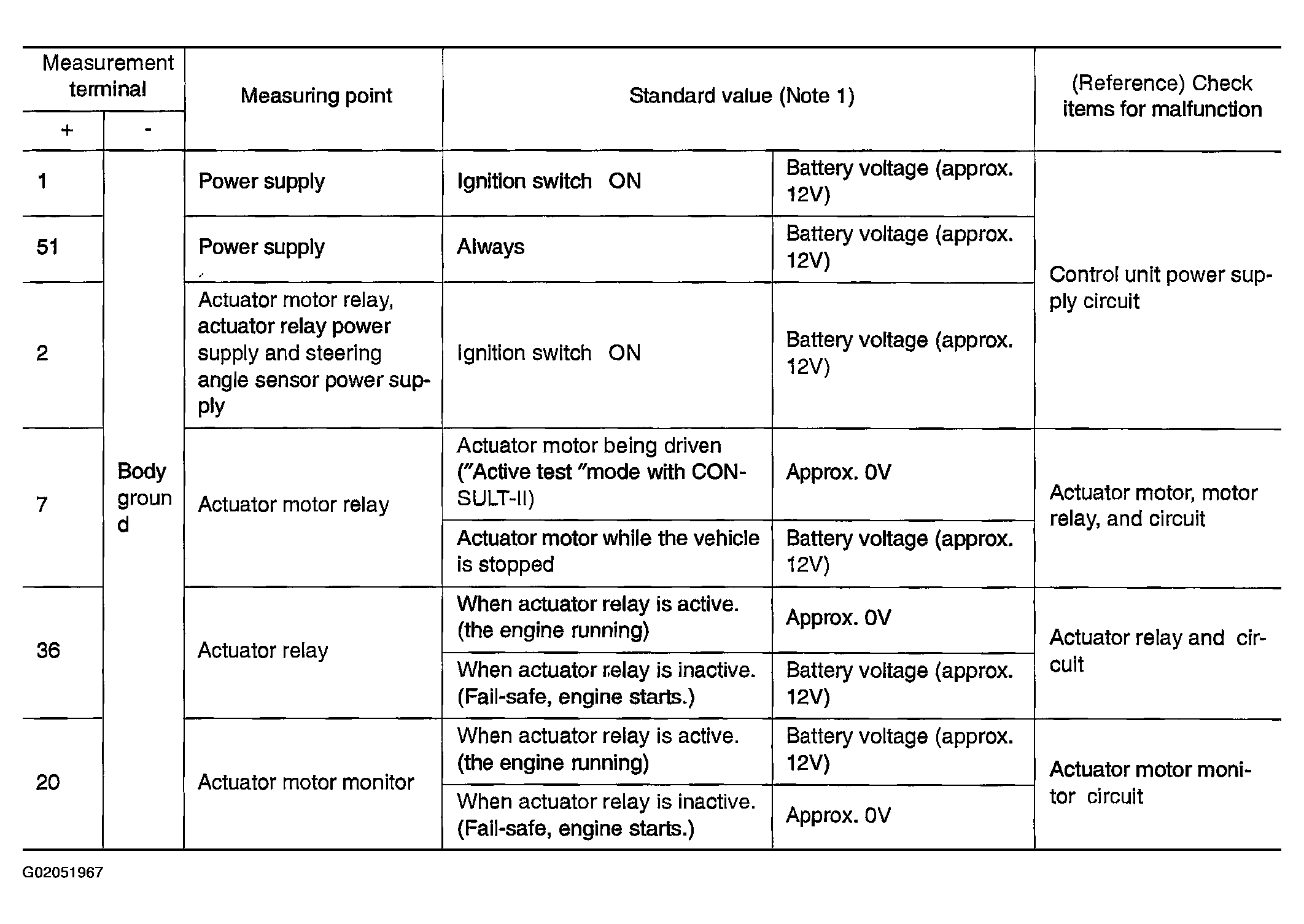

Fig 3: Displaying Input/Output Signal Standards - 2 Of 4 (See Notes
)

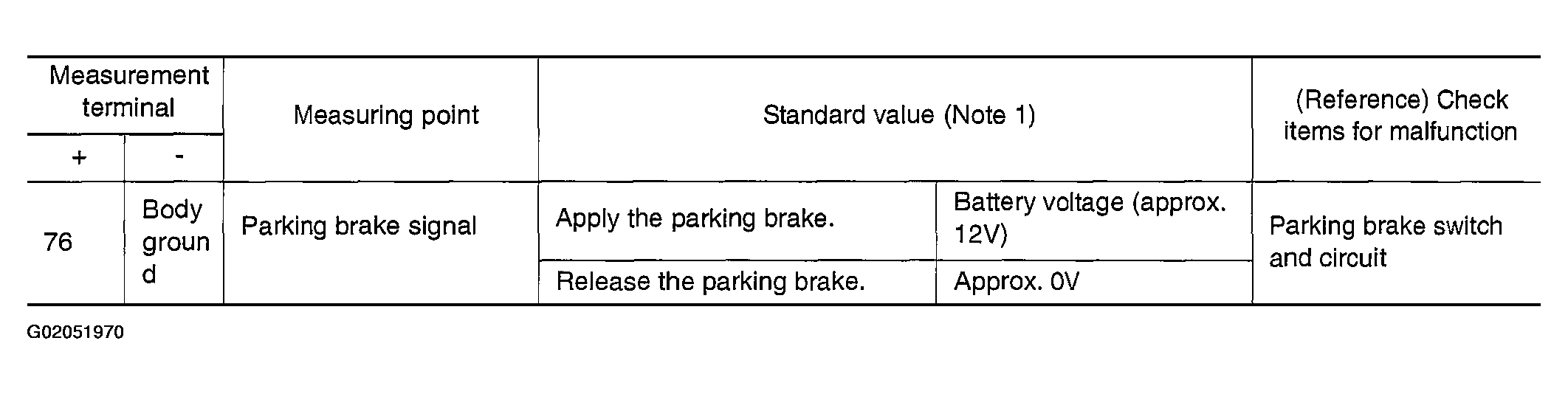

Fig 4: Displaying Input/Output Signal Standards - 3 Of 4 (See Notes
)

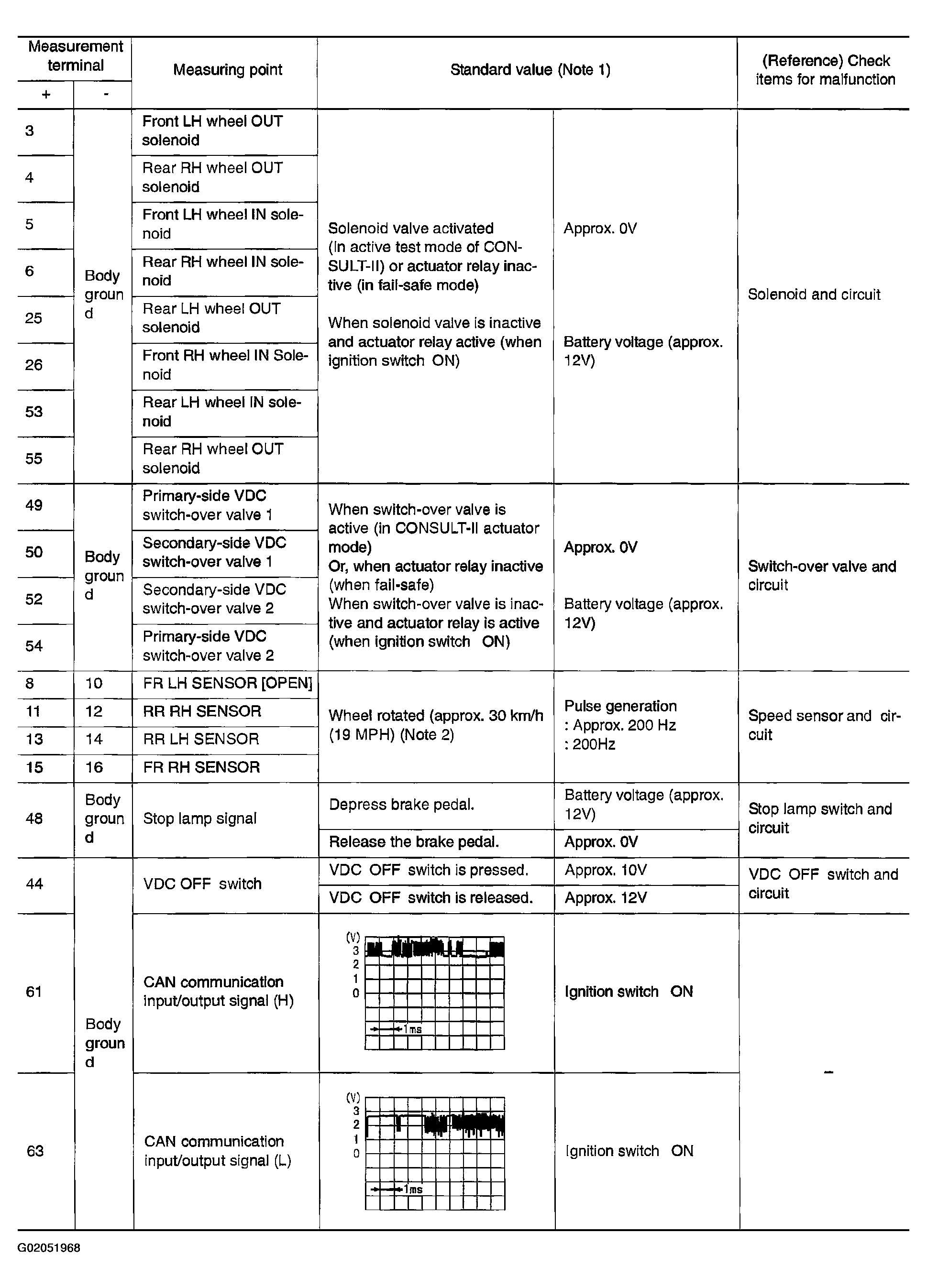

Fig 5: Displaying Input/Output Signal Standards - 4 Of 4 (See Notes
)
