Standards With CONSULT-II
CAUTION:
The displayed item is the data calculated by the control unit, so it may indicate a normal value even if an output circuit (harness) is open or shorted.

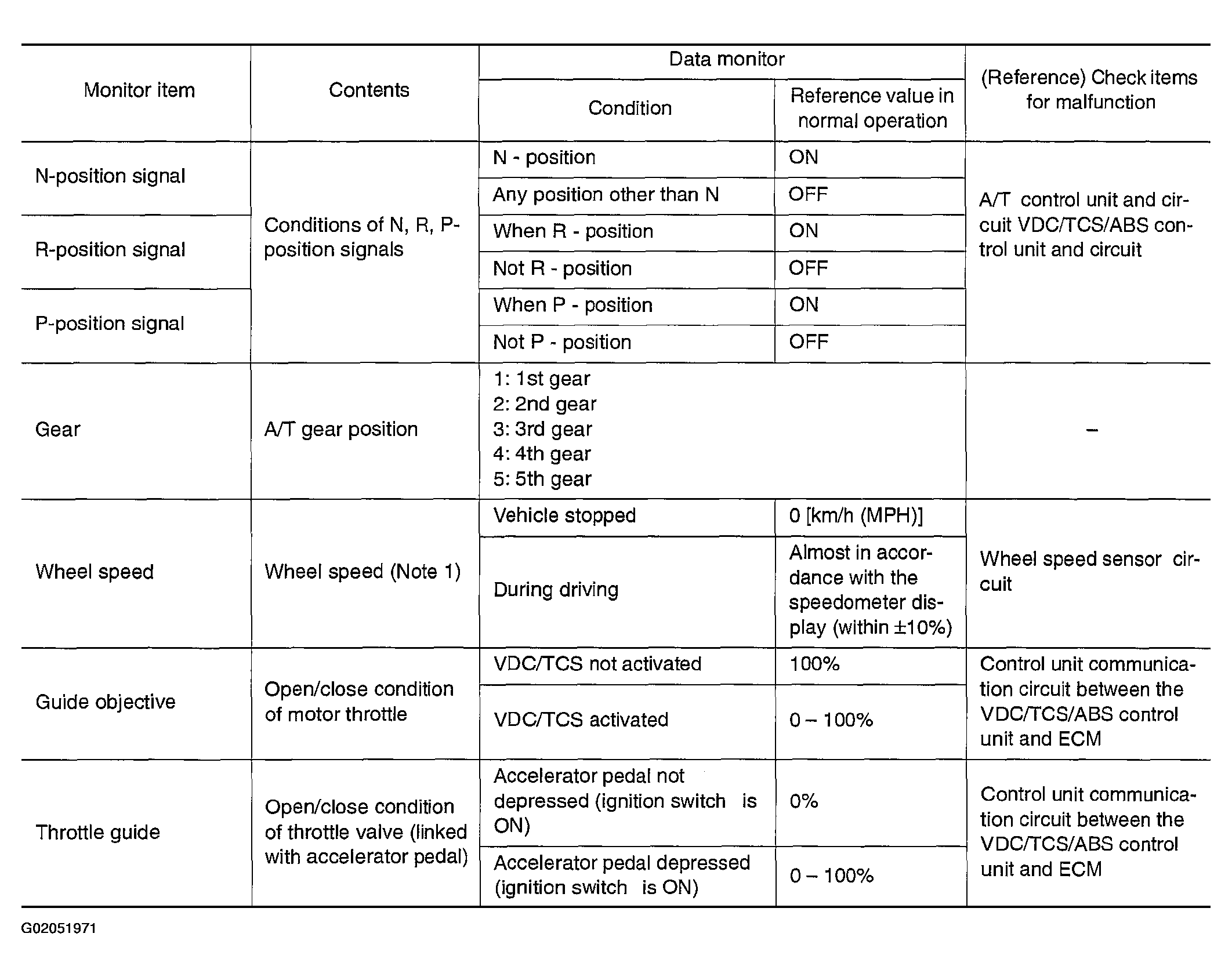

Fig 1: Identifying Standard CONSULT-II Data Parameters - 1 Of 3 - (See Notes
)

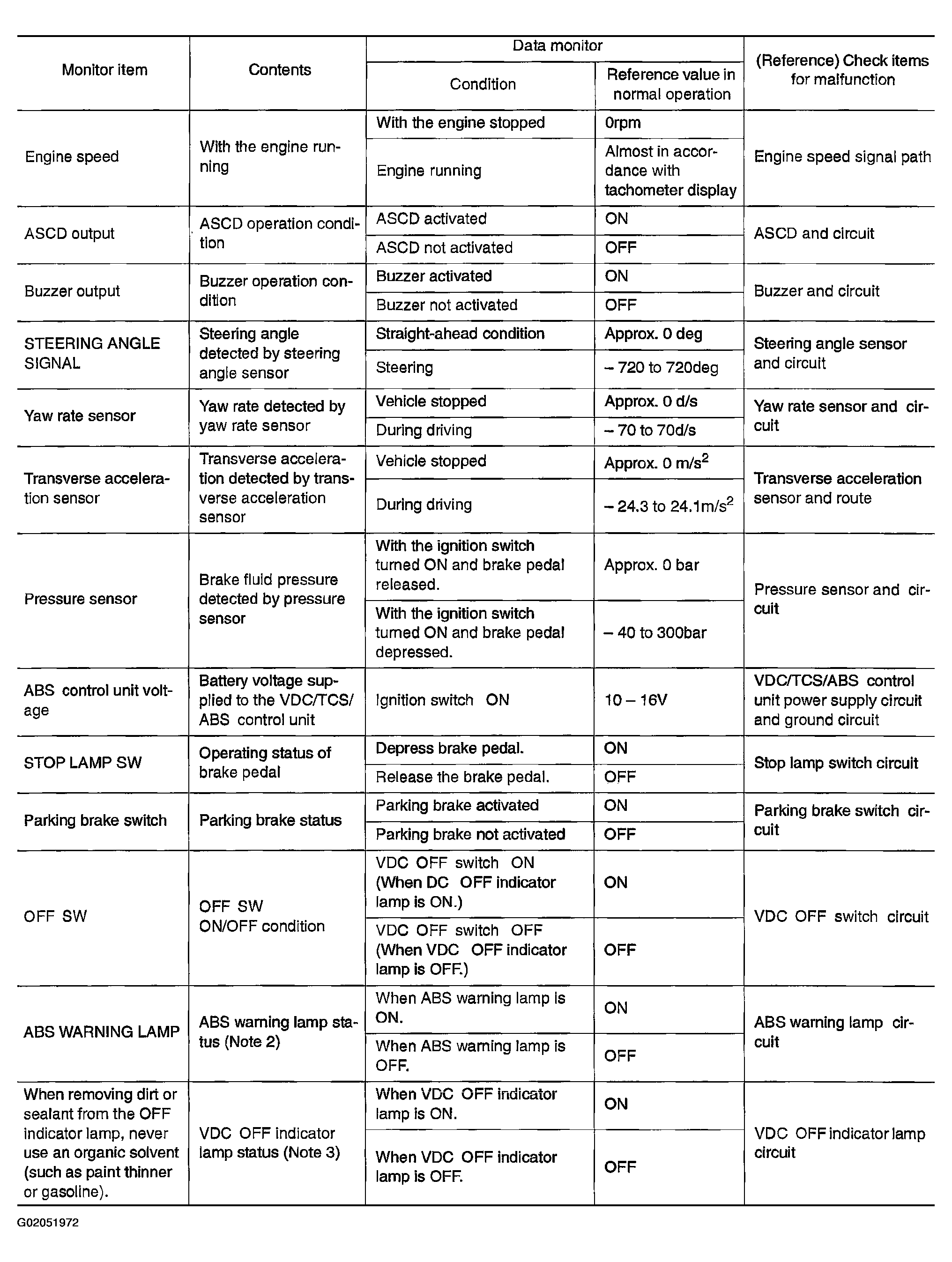

Fig 2: Identifying Standard CONSULT-II Data Parameters - 2 Of 3 - (See Notes
)

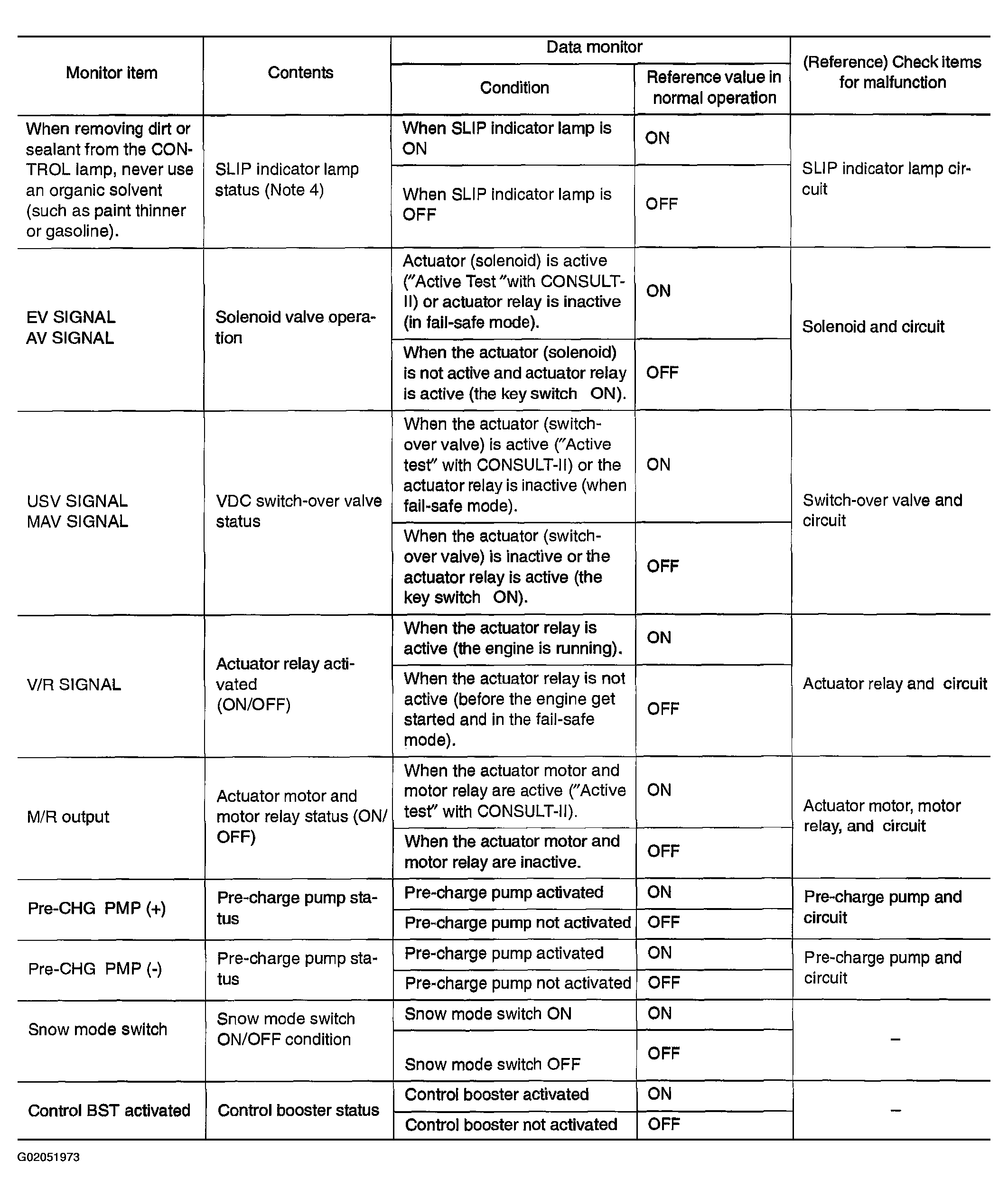

Fig 3: Identifying Standard CONSULT-II Data Parameters - 3 Of 3 - (See Notes
)
