Active Test: Procedure

CAUTION:
  • Do not perform active test while driving the vehicle.
  • Make sure that the brake system's air is completely bled out.
  • The active test cannot be performed with the ABS warning lamp on.
  1. Connect the CONSULT-II connector to the vehicle-side data link connector and start the engine.
  2. Touch "START" on the display.
  3. Touch "VDC" and "ACTIVE TEST".
  4. The test item selection screen is displayed.
  5. Touch necessary test item.

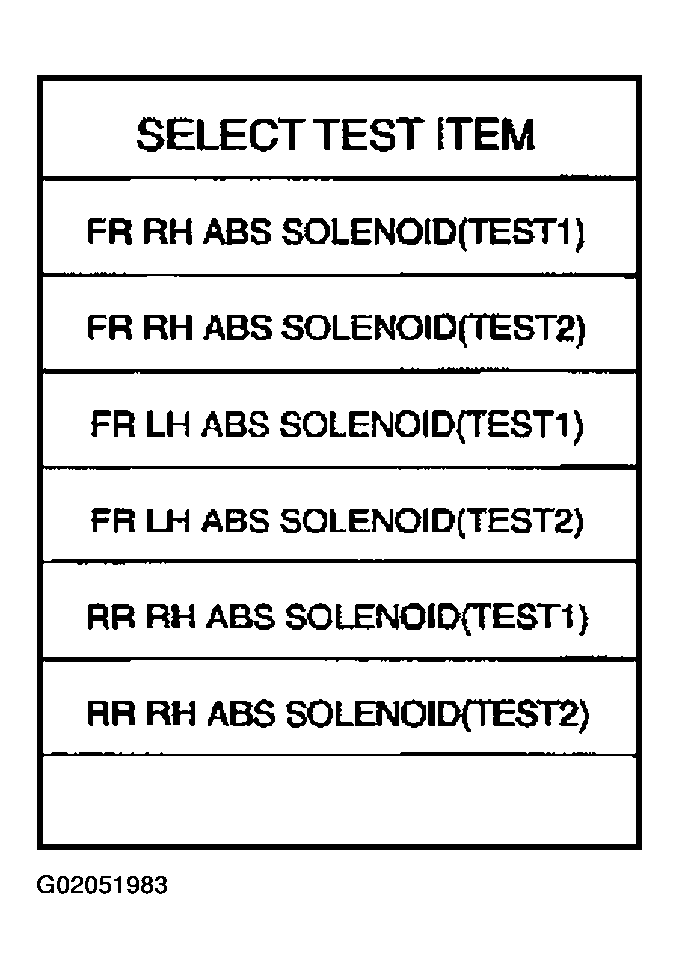

    Fig 1: Displaying The SELECT TEST ITEM Screen
    G02051983Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "START" with "MAIN SIGNALS" line inverted.
  7. The active test screen is displayed.
