Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| A/C Auto Amplifier | Behind right side of dash. See Figure . |
| Active Damper Suspension Control Unit | Behind left rear shock tower. See Figure . |
| Air Bag Diagnosis Sensor Unit | Under rear of center console. See Figure . |
| ASCD Control Unit | Behind dash, left of steering column. See Figure . |
| AV Control Unit | Behind center of dash. See Figure . |

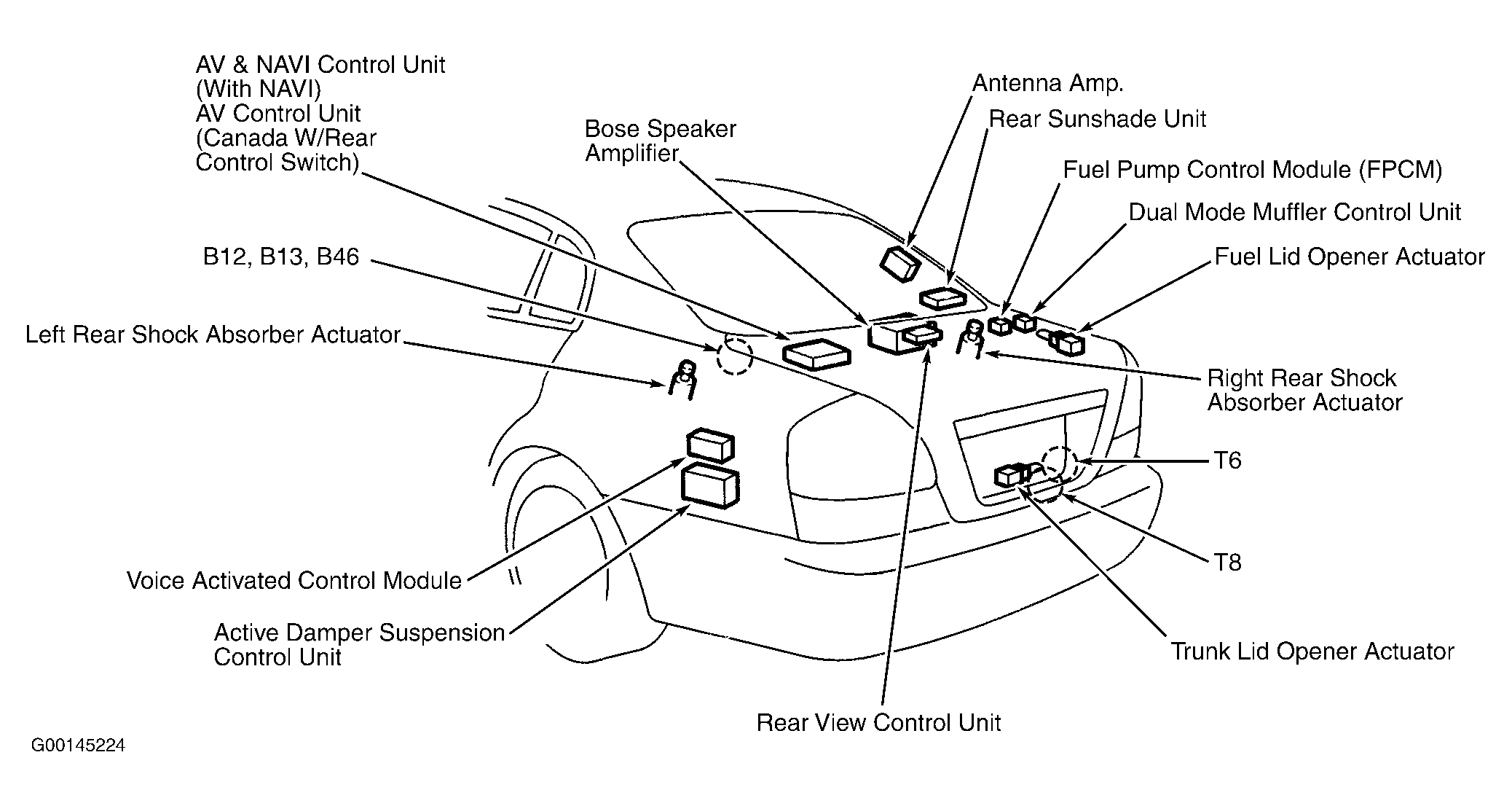

| AV & NAVI Control Unit (With NAVI) | Under left side of rear parcel shelf. See Figure . |
| Body Control Module (BCM) | Behind left kick panel. See Figure . |
| Driver's Seat Control Unit | Under driver's seat. See Figure . |
| Dual Mode Muffler Control Unit | At right side of trunk. See Figure . |
| Engine Control Module (ECM) | Behind glove box. See Figure . |
| Fan Control Amplifier | Behind right side of dash, on cooling unit. |
| Fuel Pump Control Module (FPCM) | On right side of trunk. See Figure . |
| Headlamp Battery Saver Control Unit | Behind dash, left of steering column. See Figure . |
| Left Rear Power Seat Control Unit | Under left rear seat. |
| Low Tire Pressure Warning Control Unit | Behind center of dash. See Figure . |
| NATS IMMU | Behind dash, left of steering column. See Figure . |
| Power Steering Control Unit | Behind dash, right side of center console. See Figure . |
| Rear View Control Unit | Center front of trunk. See Figure . |
| Right Rear Power Seat Control Unit | Under right rear seat. |
| Shift Lock Control Unit | Behind dash, left of steering column. See Figure . |
| Steering Lock Control Unit | Behind dash, right of steering column. See Figure . |
| Transmission Control Module (TCM) | Behind glove box. See Figure . |
| VDC/TCS/ABS Control Unit | Behind right kick panel. See Figure . |
| Voice Activated Control Module | Left rear of trunk. See Figure . |
