Check Key Fob Battery and Function

CHECK KEY FOB BATTERY
1. Remove key fob battery. Refer to KEY FOB BATTERY REPLACEMENT .
2. Measure voltage between battery positive and negative terminals, (+) and (-).
  Voltage : 2.5 - 3.0V

  NOTE: Key fob does not function if battery is not set correctly.

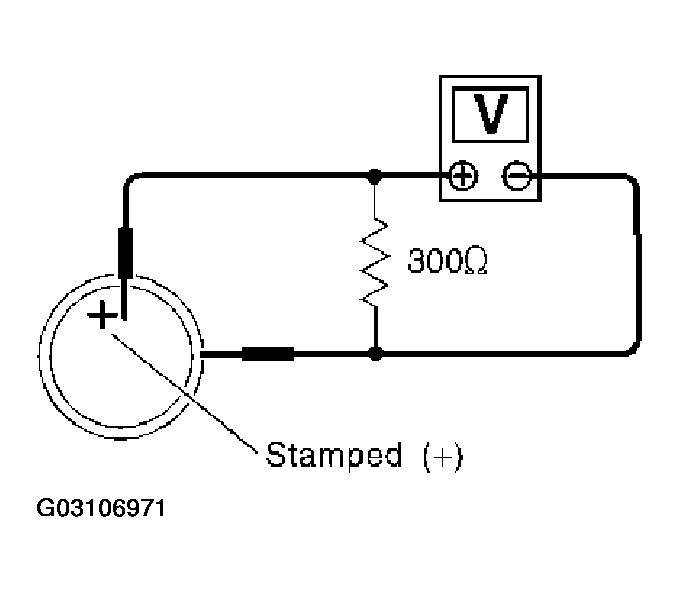

  Fig 1: Measuring Voltage Between Battery Positive And Negative Terminals
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : GO TO 2.
2. NG : Replace battery.

CHECK KEY FOB FUNCTION

With CONSULT-II

Check key fob function in "DATA MONITOR" mode with CONSULT-II. When pushing each button of key fob, the corresponding monitor item should be turned as follows.

KEY CONDITION AND MONITOR ITEM SPECIFICATIONS

Condition	Monitor item
Pushing LOCK	KEYLESS LOCK:ON
Pushing UNLOCK	KEYLESS UNLOCK:ON
Keep pushing UNLOCK	RKE KEEP UNLK:ON
Keep pushing UNLOCK	*: UN BUTTON ON turns to ON three seconds after UNLOCK button keeps pushing.
Pushing PANIC	KEYLESS PANIC:ON
Pushing LOCK and UNLOCK at the same time	RKE LCK-UNLOCK:ON

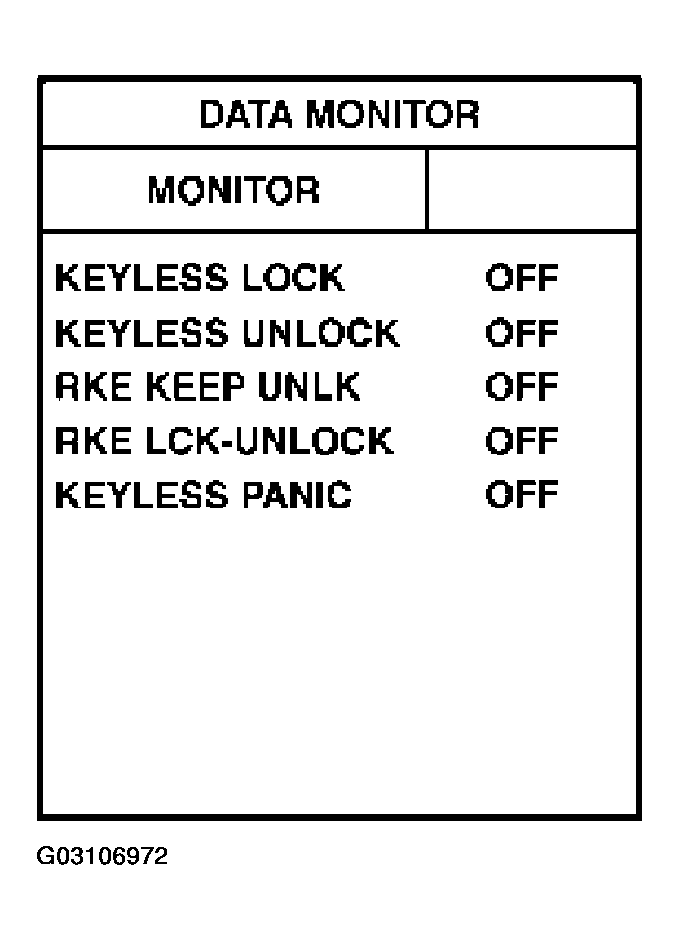

Fig 2: Checking Key Fob Function With CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Key fob is OK.
NG : Replace key fob.
