Power Window Main Switch Power Supply Circuit Check

CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.

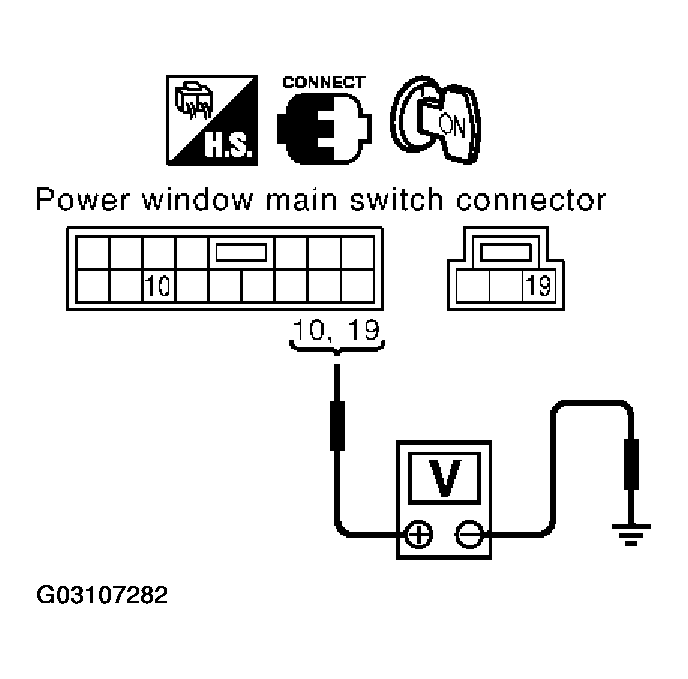

2. Check voltage between power window main switch connector D6, D7 terminal 10,19 and ground.
  10 (BR) - Ground: Battery voltage

  19 (W) - Ground: Battery voltage
OK or NG
1. OK: Power window main switch power supply and ground circuit are OK.
2. NG: GO TO 2.
CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window main switch connector.
3. Check continuity between power window main switch connector D7 terminal 17 and ground.
  17 (B) - Ground: Continuity should exist.

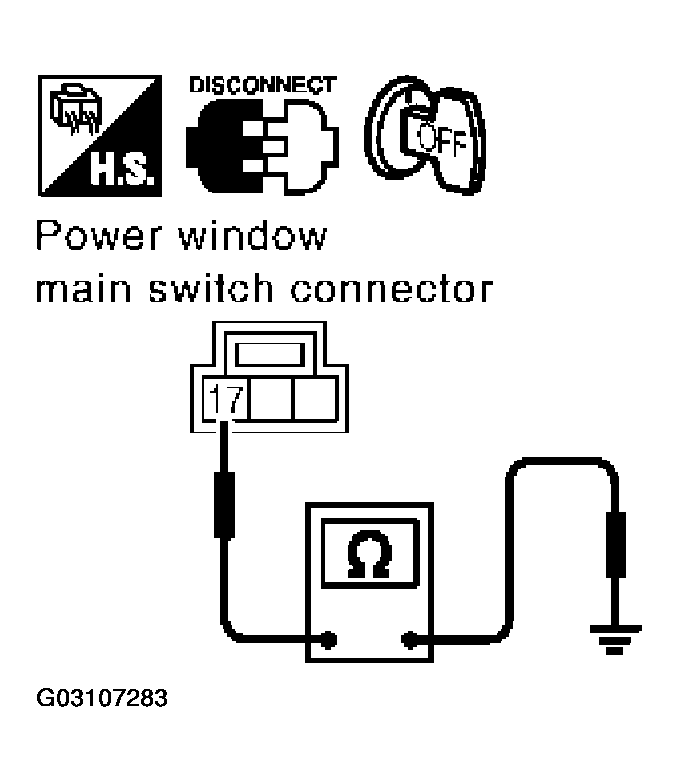

  Fig 2: Checking Power Window Main Switch Ground Circuit
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 3.
2. NG: Repair or replace harness.
CHECK HARNESS CONTINUITY
1. Disconnect BCM connector.
2. Check continuity between BCM connector M4 terminal 53, 54 and power window main switch connector D6, D7 terminal 10, 19.
  53 (Y/B) - 10 (BR): Continuity should exist.

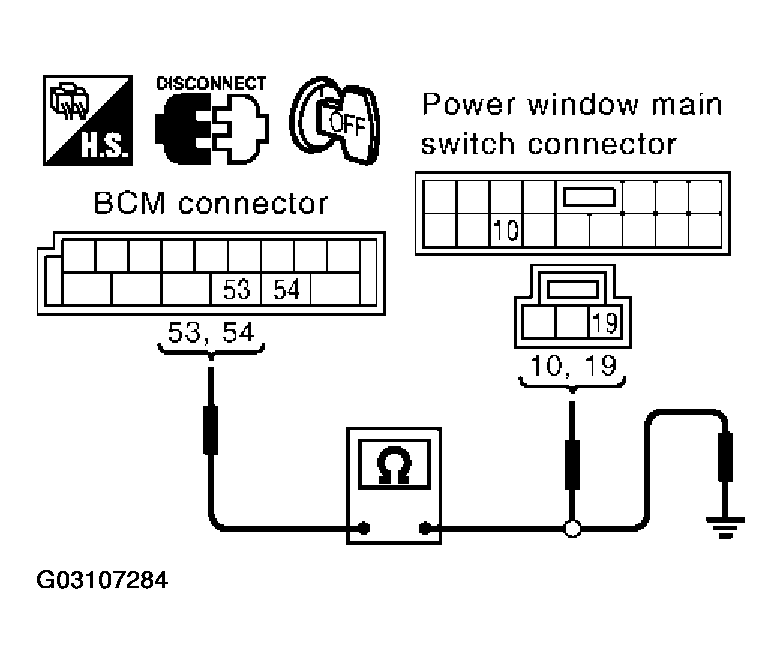

  Fig 3: Checking Power Window Main Switch Harness Continuity
  Courtesy of NISSAN MOTOR CO., U.S.A.

  54 (W) - 19 (W): Continuity should exist.
3. Check continuity between BCM connector M4 terminal 53, 54 and ground.
  53 (Y/B) - Ground: Continuity should not exist.

  54 (W) - Ground: Continuity should not exist.
OK or NG
1. OK: GO TO 4.
2. NG: Repair or replace harness.
CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Turn ignition switch ON.
3. Check voltage between BCM connector M4 terminal 53, 54 and ground.
  53 (Y/B) - Ground: Battery voltage

  54 (W) - Ground: Battery voltage

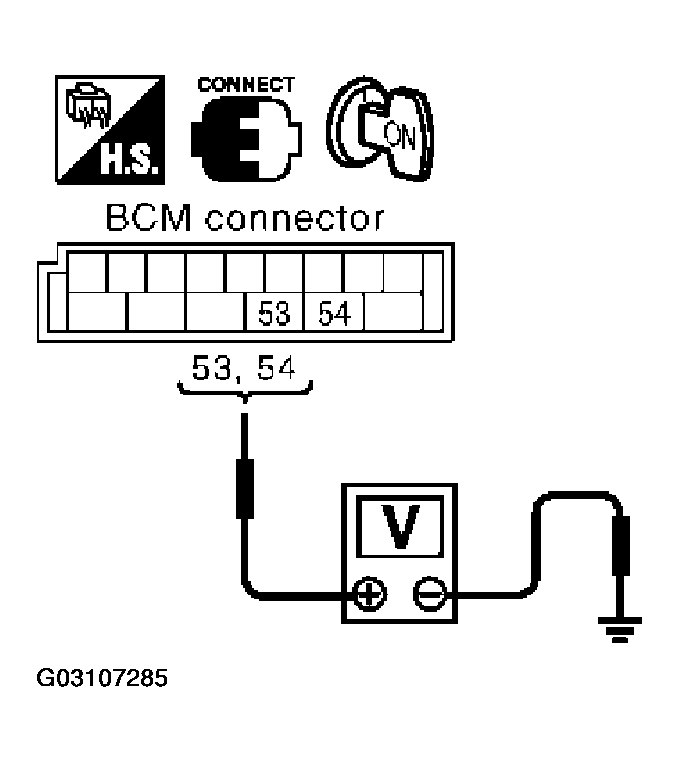

  Fig 4: Checking BCM Output Signal
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Check condition of harness and connector.
2. NG: Replace BCM.
