Component Locations

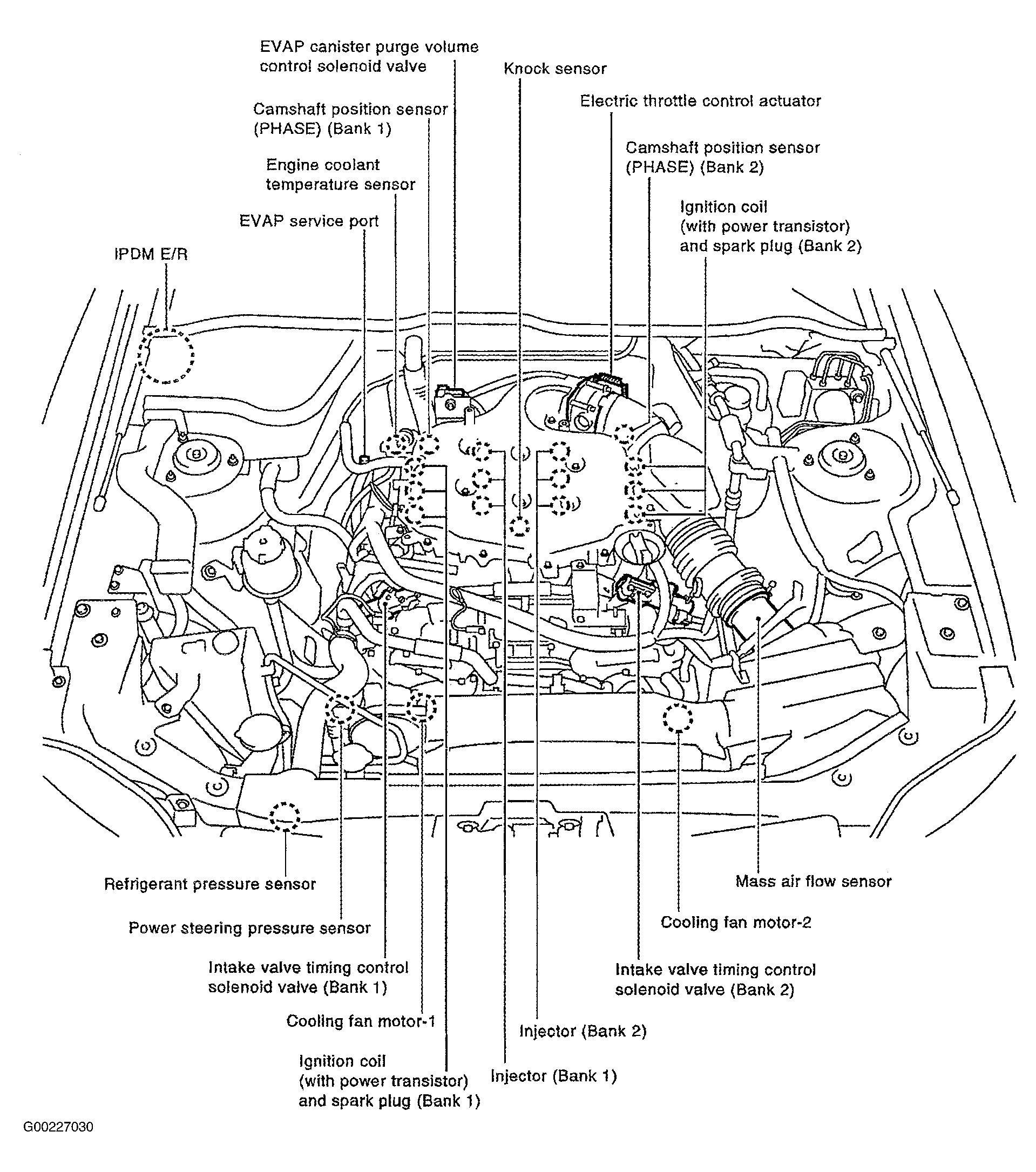

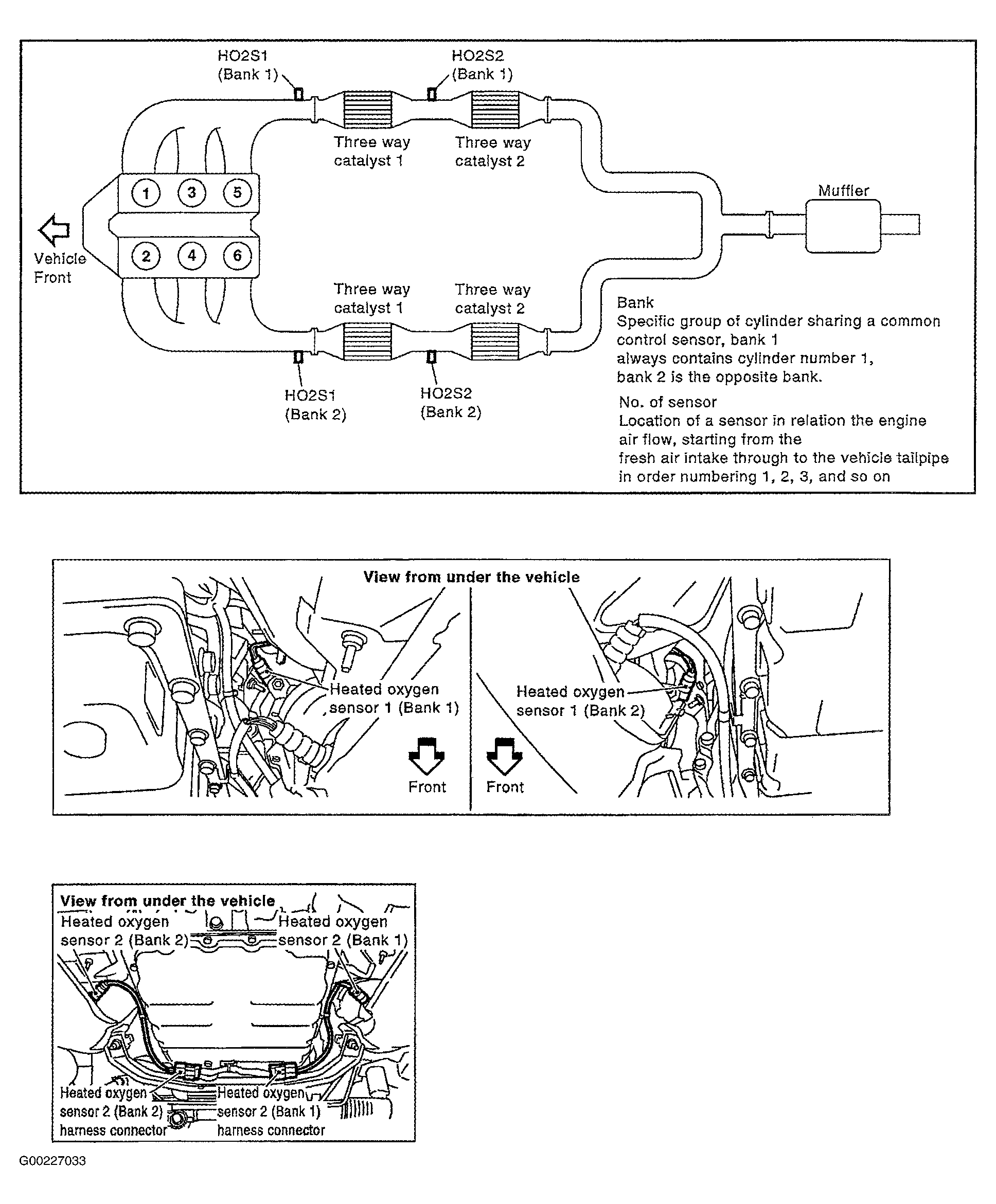

Fig 1: Locating Engine Control Components

Courtesy of NISSAN MOTOR CO., U.S.A.

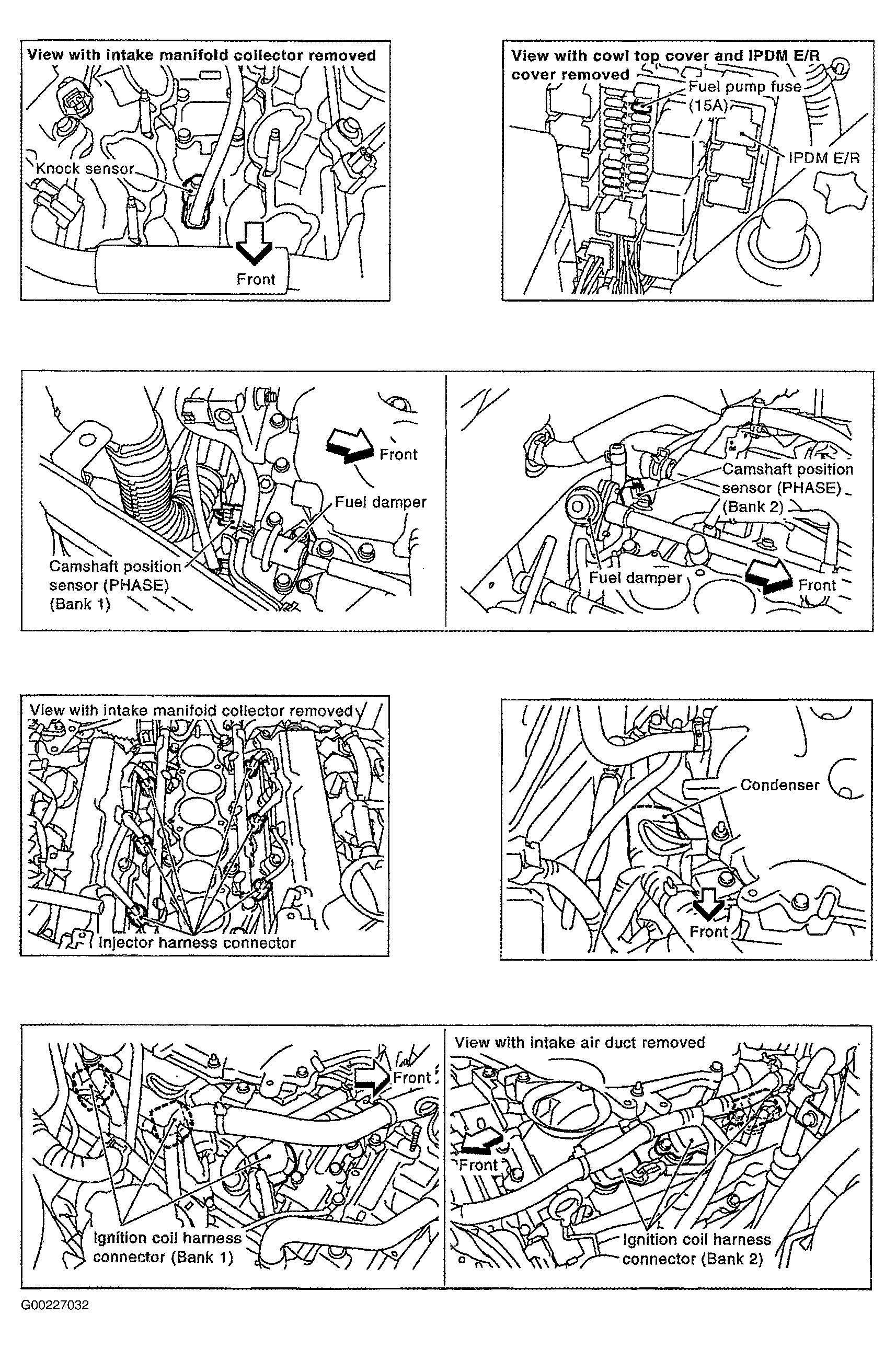

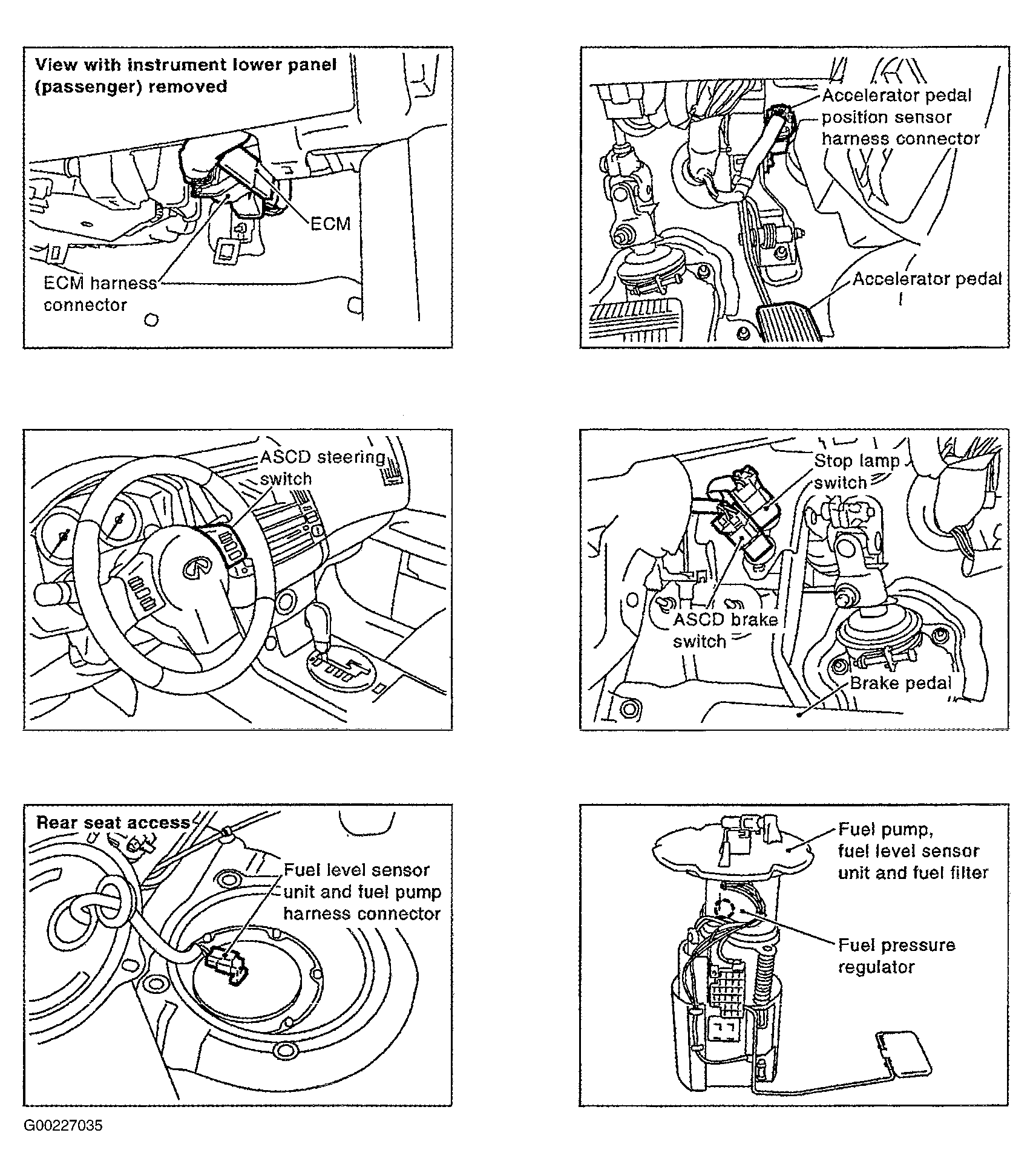

Fig 2: Locating/Identifying Engine Control Components (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

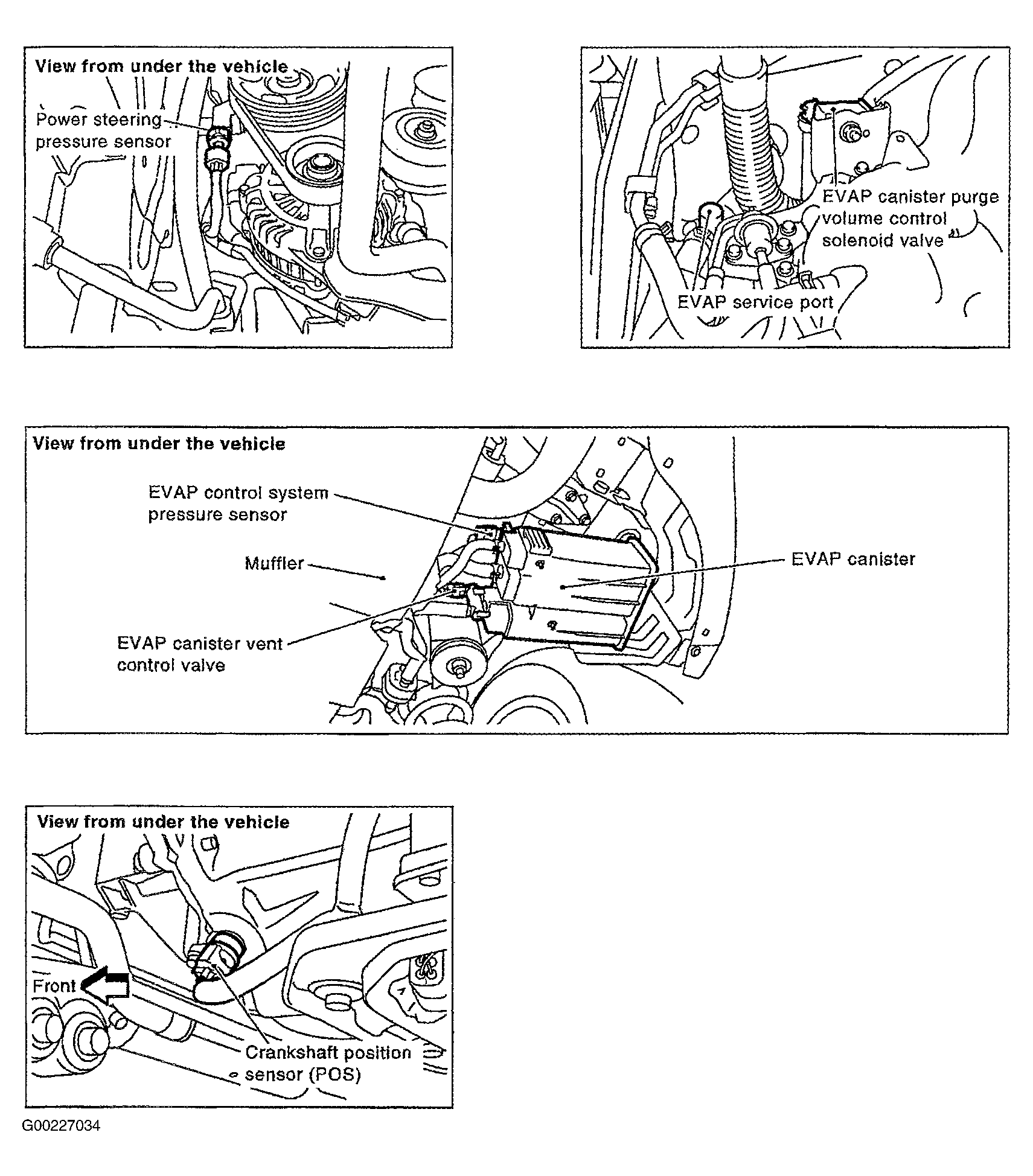

Fig 3: Locating/Identifying Engine Control Components (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

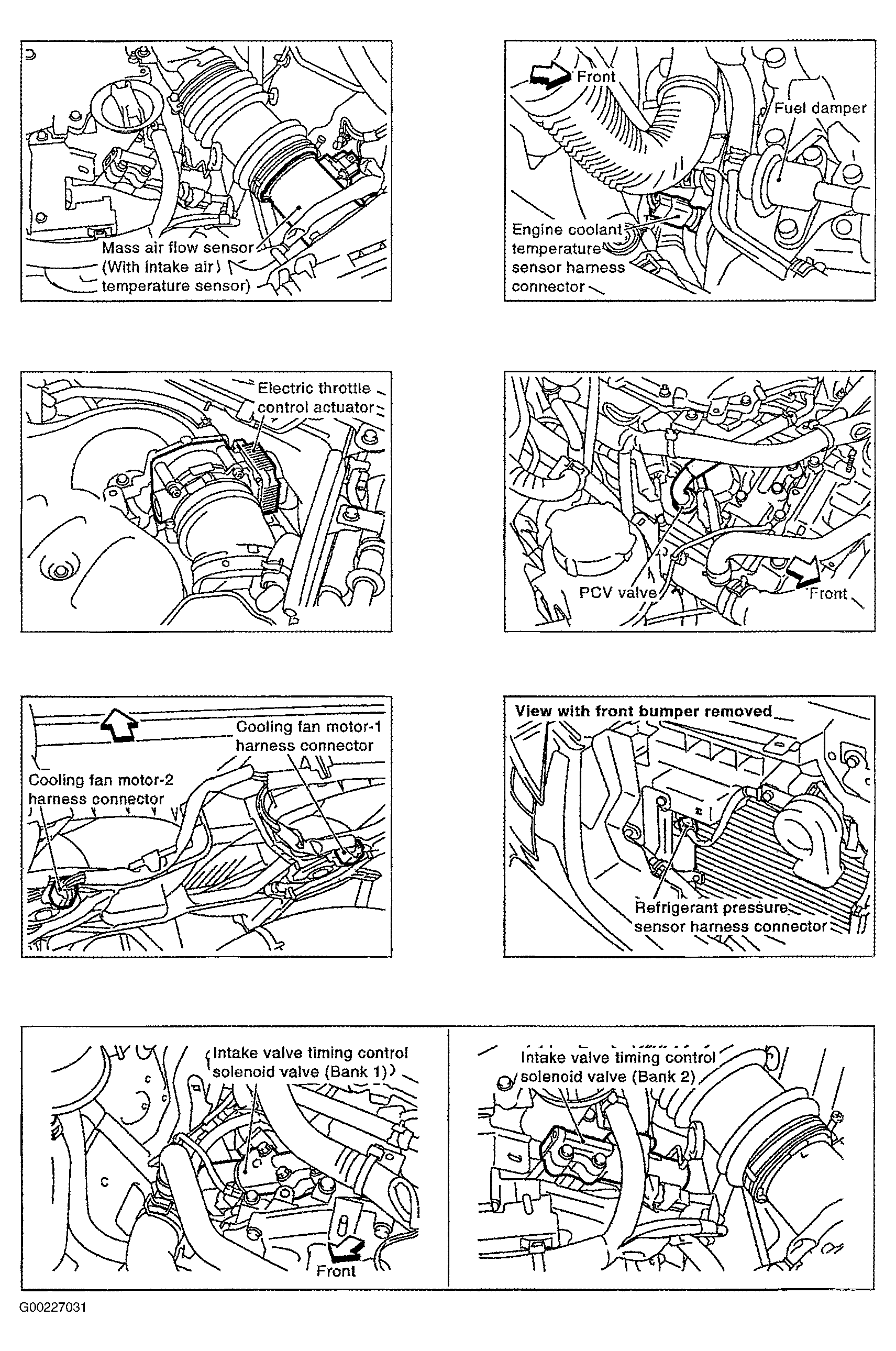

Fig 4: Locating/Identifying Engine Control Components (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Locating/Identifying Engine Control Components (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Locating/Identifying Engine Control Components (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

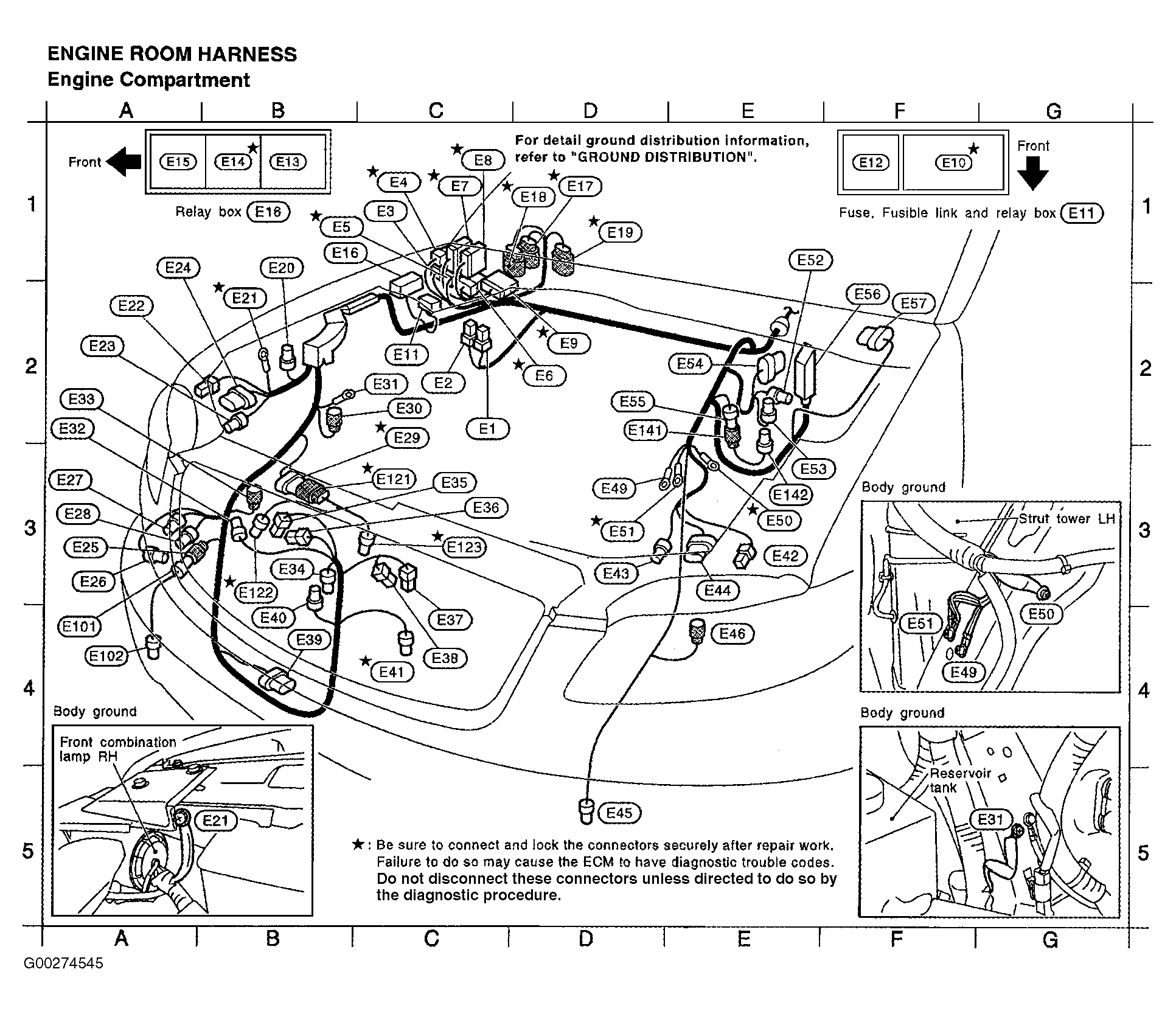

Fig 7: Locating/Identifying Engine Compartment Harness Connectors (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

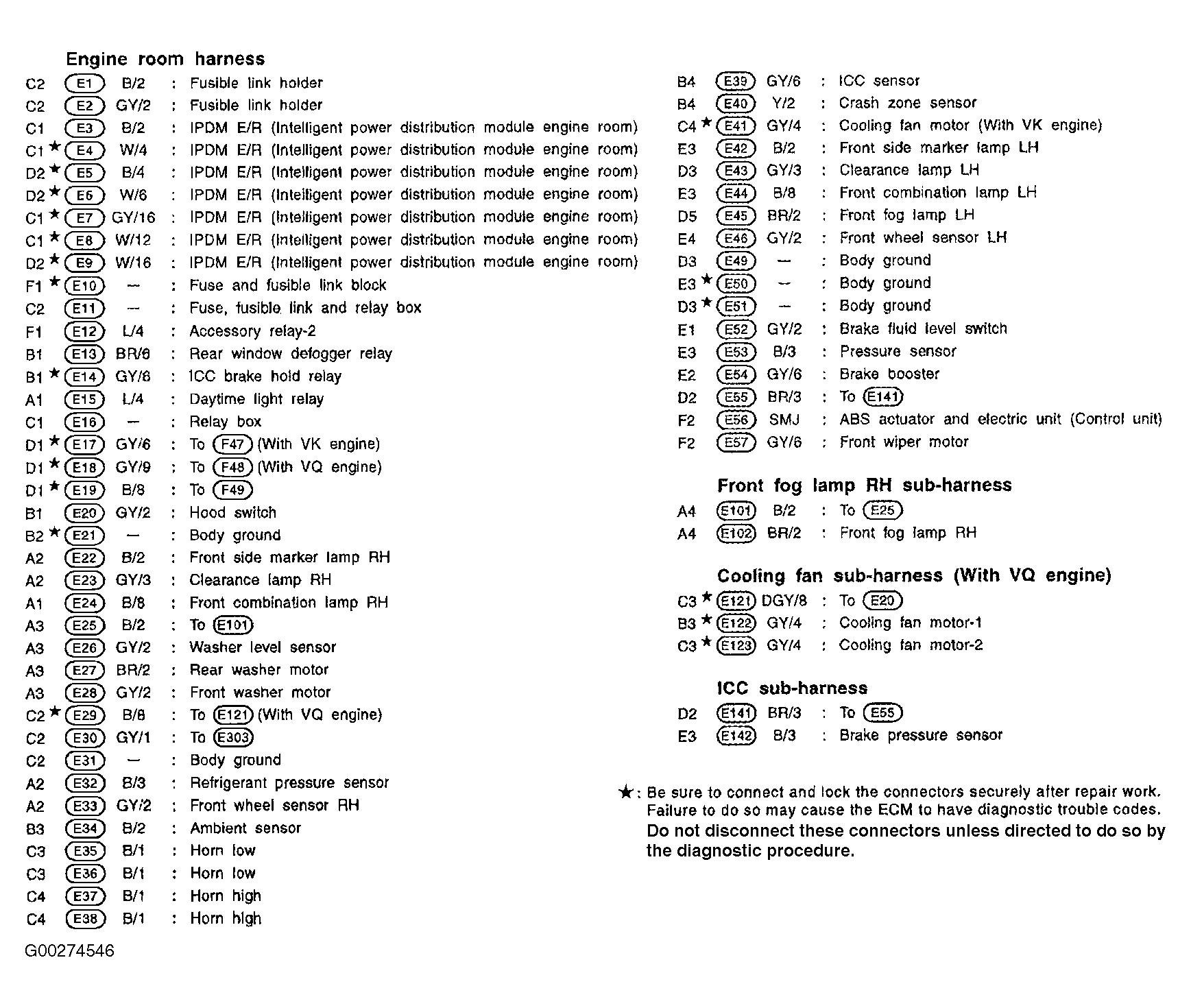

Fig 8: Locating/Identifying Engine Compartment Harness Connectors (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

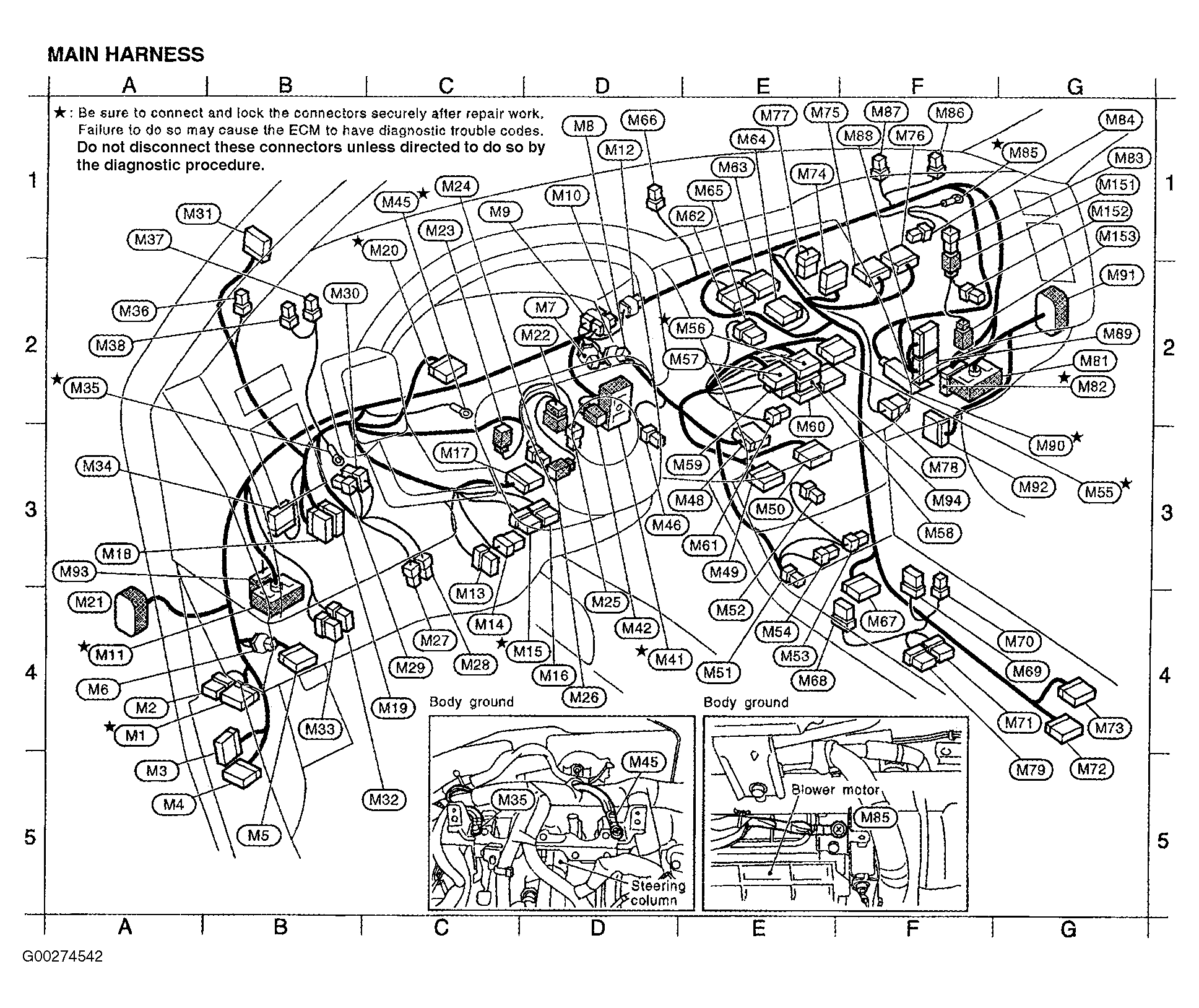

Fig 9: Locating/Identifying Main Harness Connectors (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

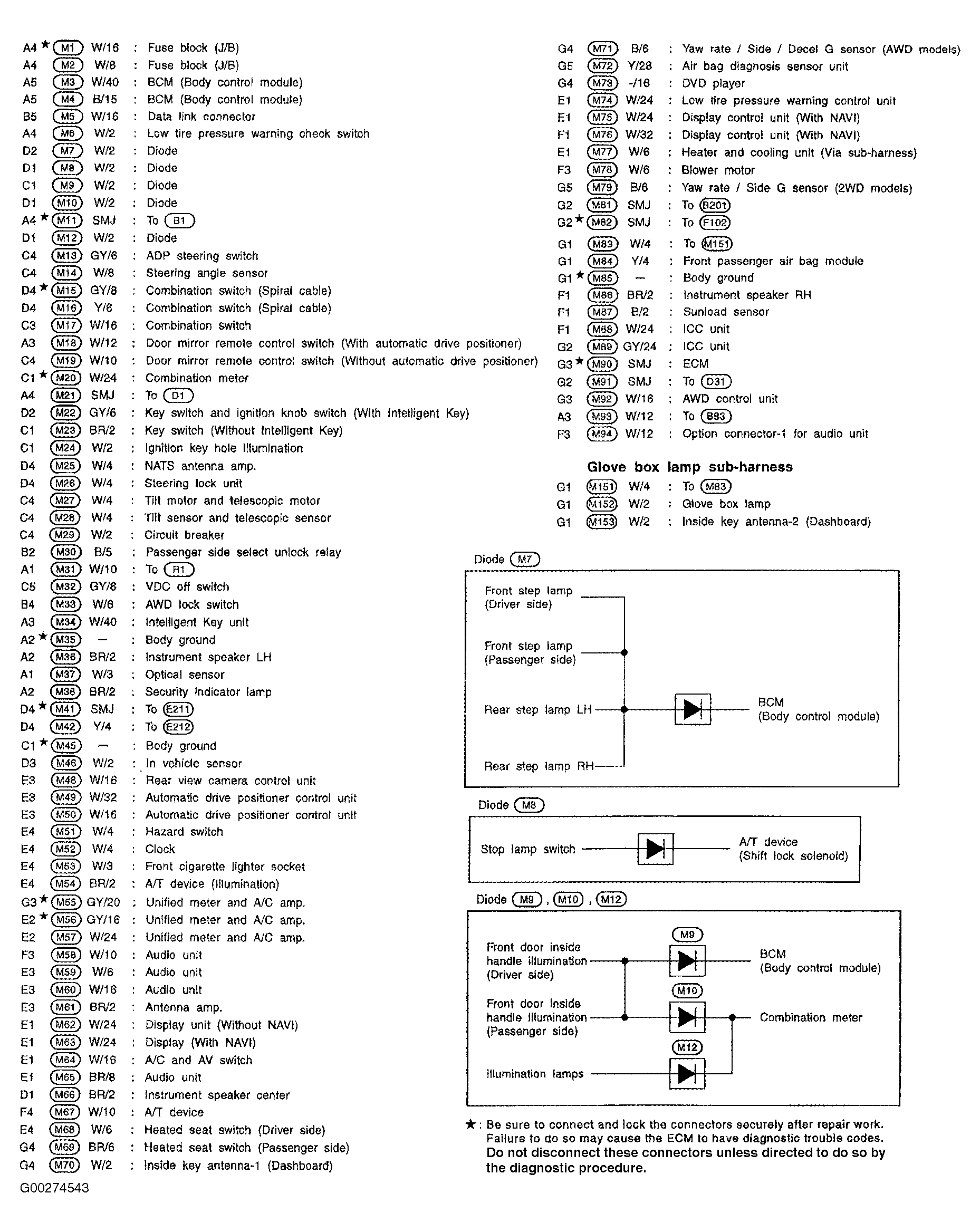

Fig 10: Locating/Identifying Main Harness Connectors (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

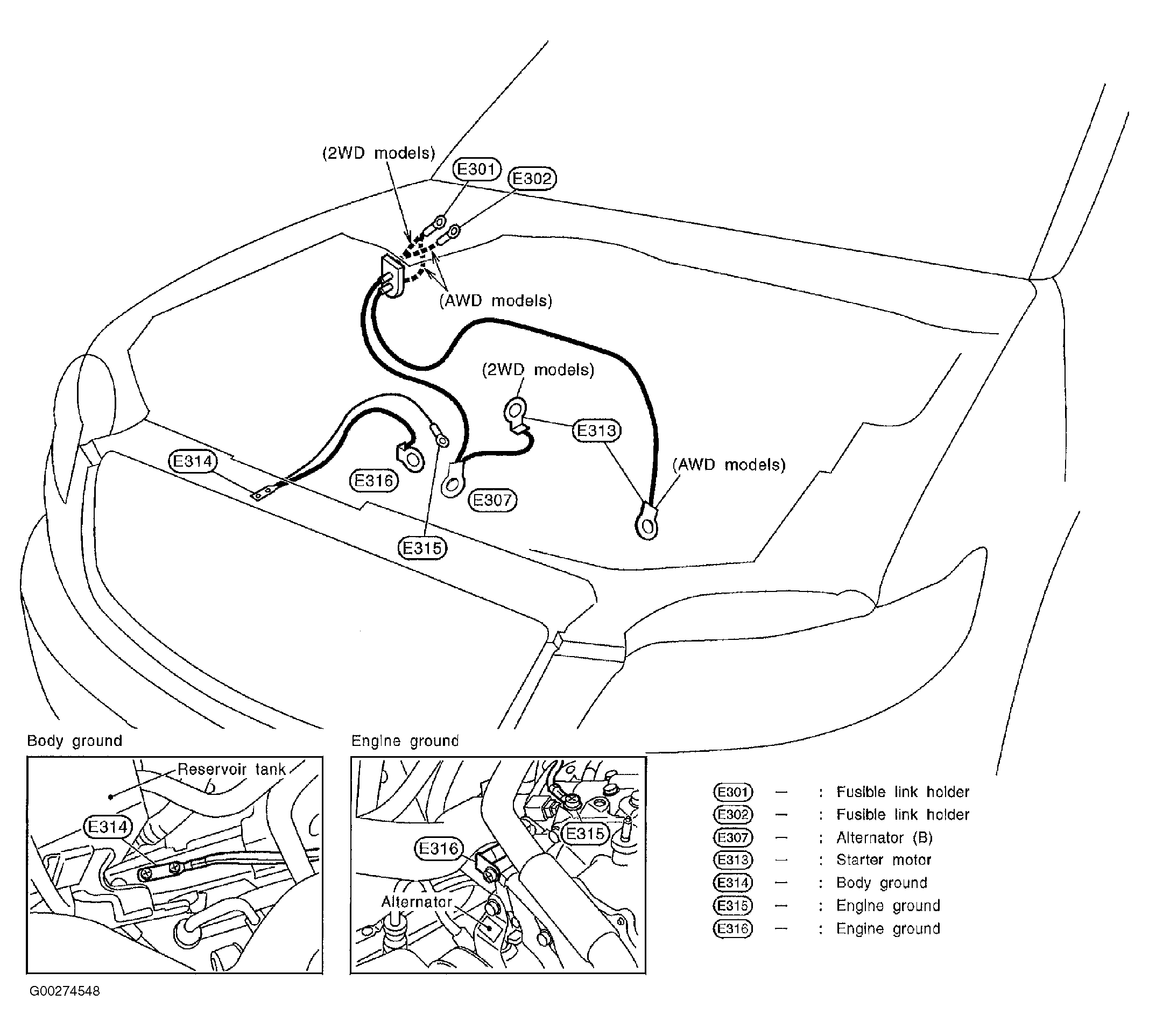

Fig 11: Locating/Identifying Engine Compartment Body & Engine Grounds

Courtesy of NISSAN MOTOR CO., U.S.A.

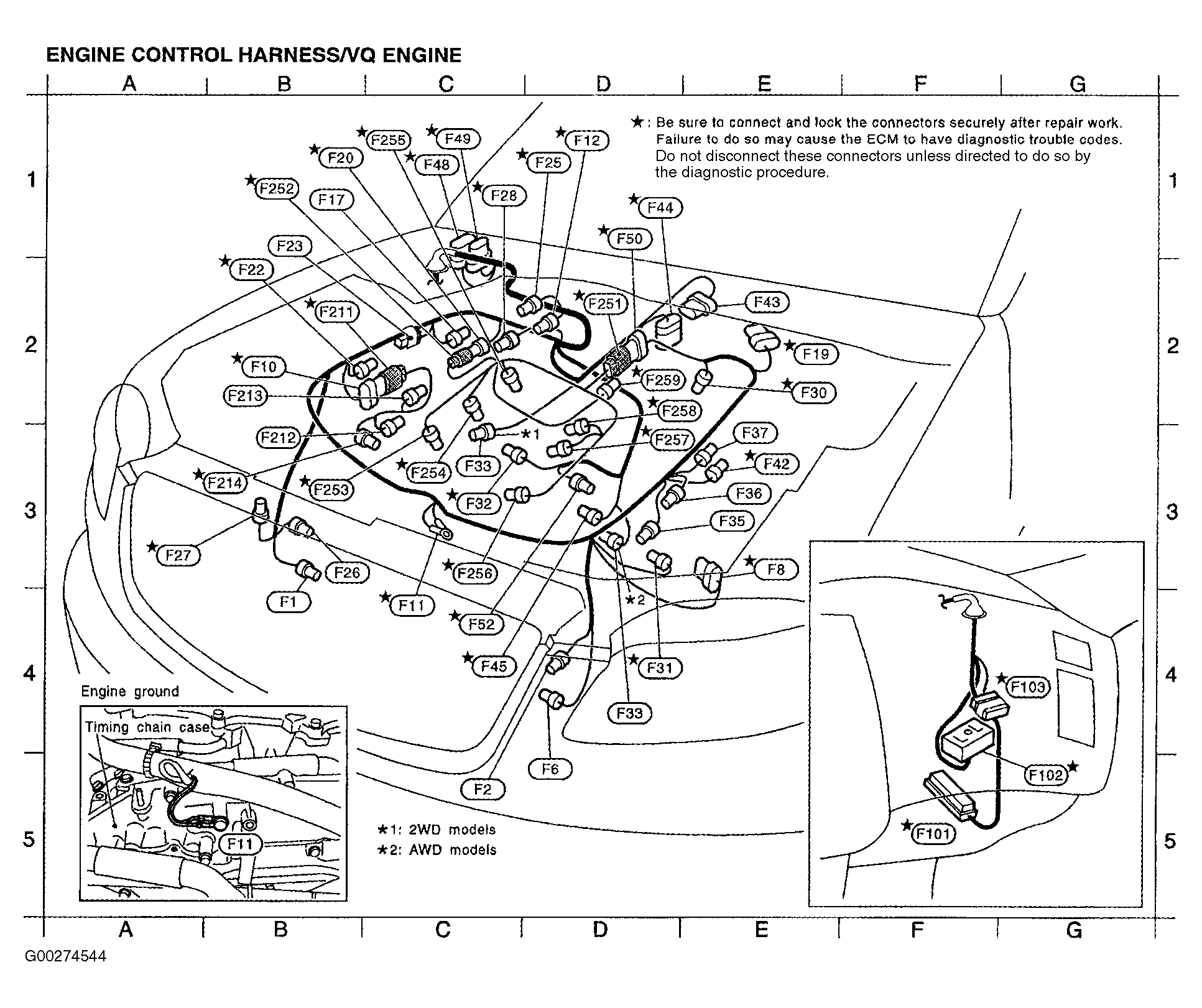

Fig 12: Locating/Identifying Engine Control Harness Connectors (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

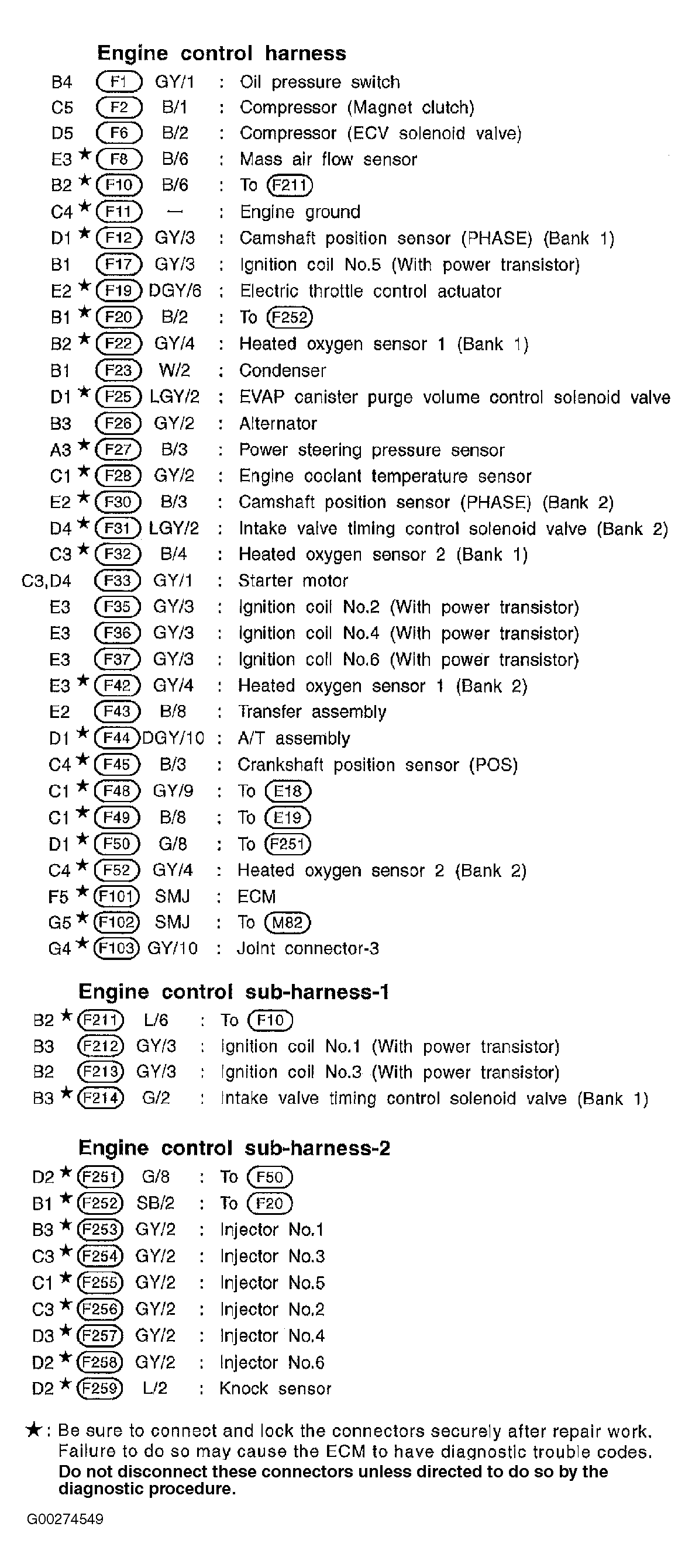

Fig 13: Locating/Identifying Engine Control Harness Connectors (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

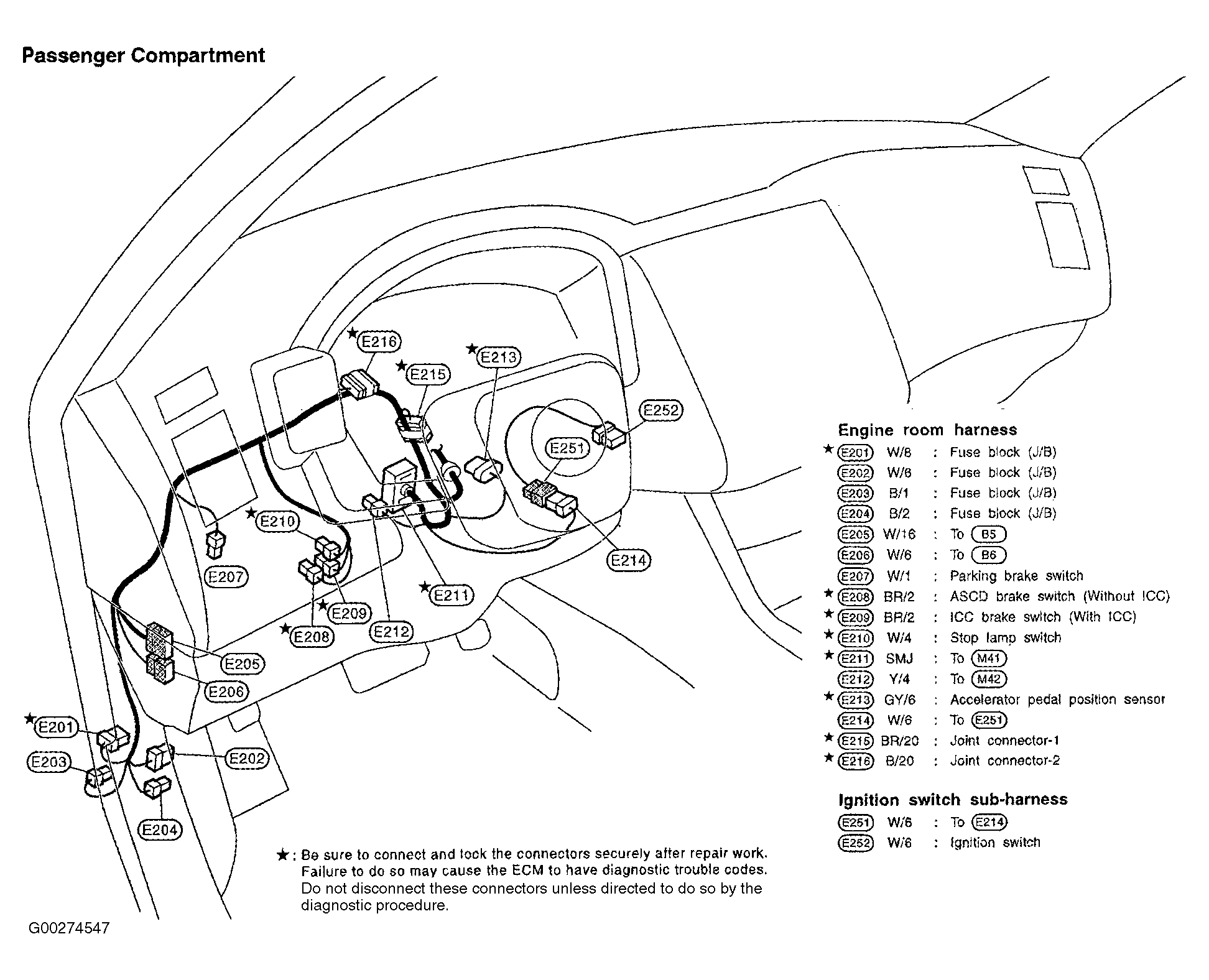

Fig 14: Locating/Identifying Passenger Compartment Harness Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.
