Component Inspection

For ASCD steering switch testing, see Fig 1.

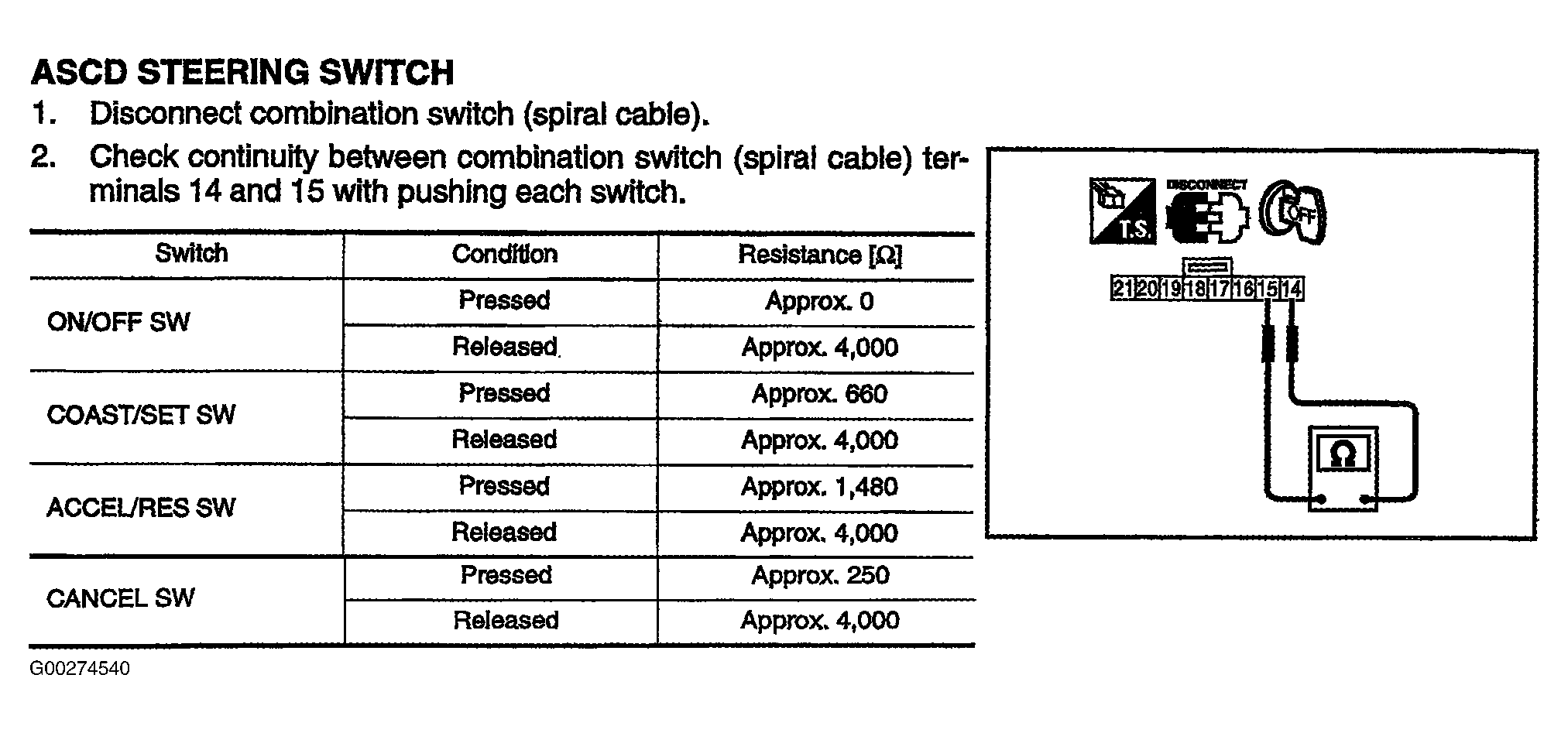

Fig 1: Testing ASCD Steering Switch
G00274540Courtesy of NISSAN MOTOR CO., U.S.A.
