Data Monitor Mode Reference Values

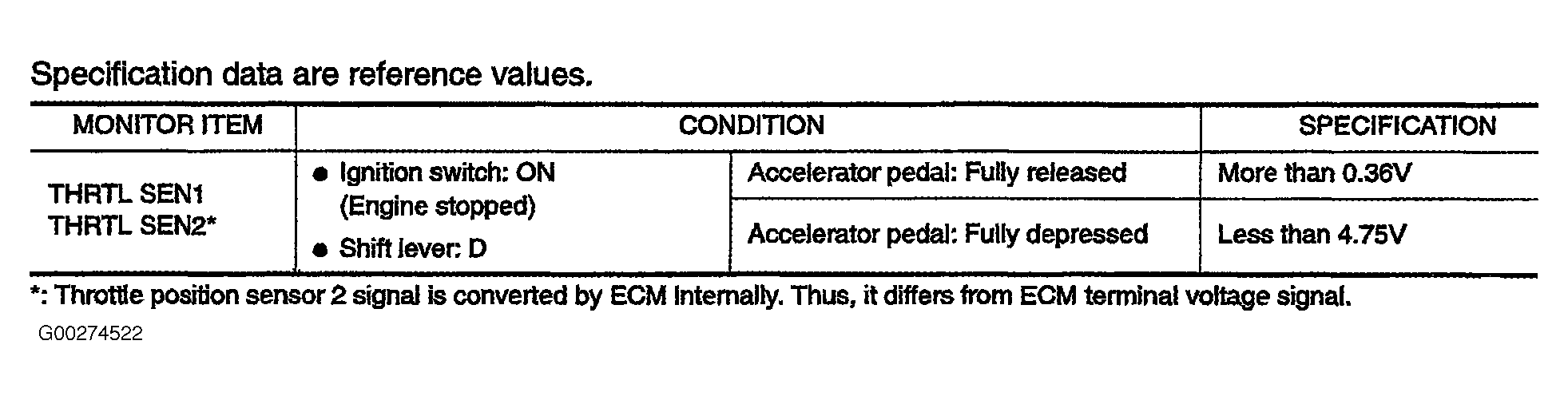

For throttle position sensor specification data, see Fig 1.

Fig 1: Throttle Position Sensor Specification Data
G00274522Courtesy of NISSAN MOTOR CO., U.S.A.
