Explanation For Driving Patterns Except For Misfire - Driving Pattern "A"

• The "A" counter will be cleared when the malfunction is detected regardless of (1) - (4). See Fig 1.
• The "A" counter will be counted up when (1) - (4) are satisfied without the same malfunction.
• The DTC will not be displayed after the "A" counter reaches 40.

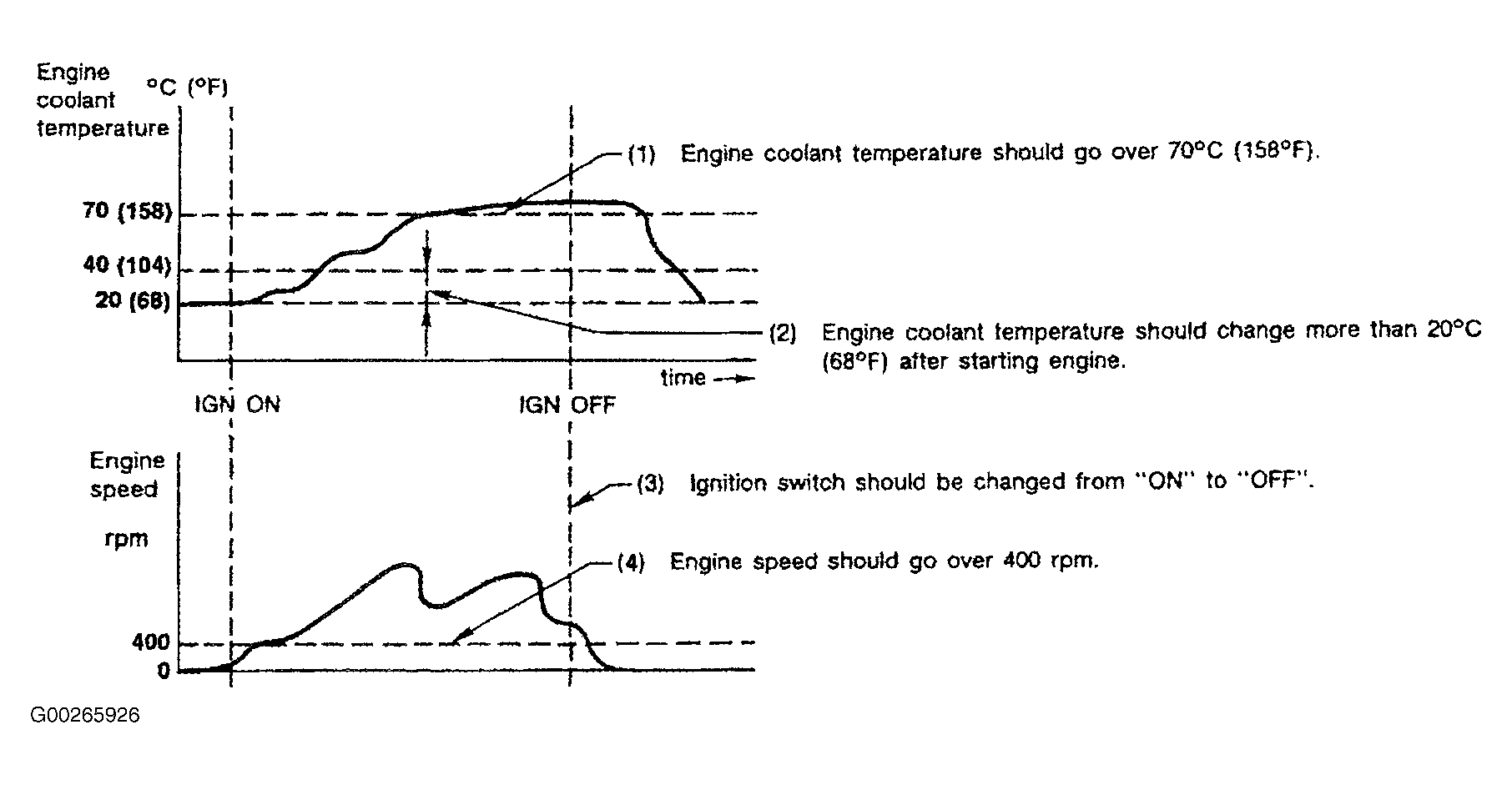

Fig 1: Explanation For Driving Patterns Except For Misfire

Courtesy of NISSAN MOTOR CO., U.S.A.
