Front Door Key Cylinder Switch Check

With CONSULT-II

Check ("KEY CYL LK-SW", "KEY CYL UN-SW") in "DATA MONITOR" mode for "POWER DOOR ROCK SYSTEM" with CONSULT-II. Refer to DATA MONITOR .

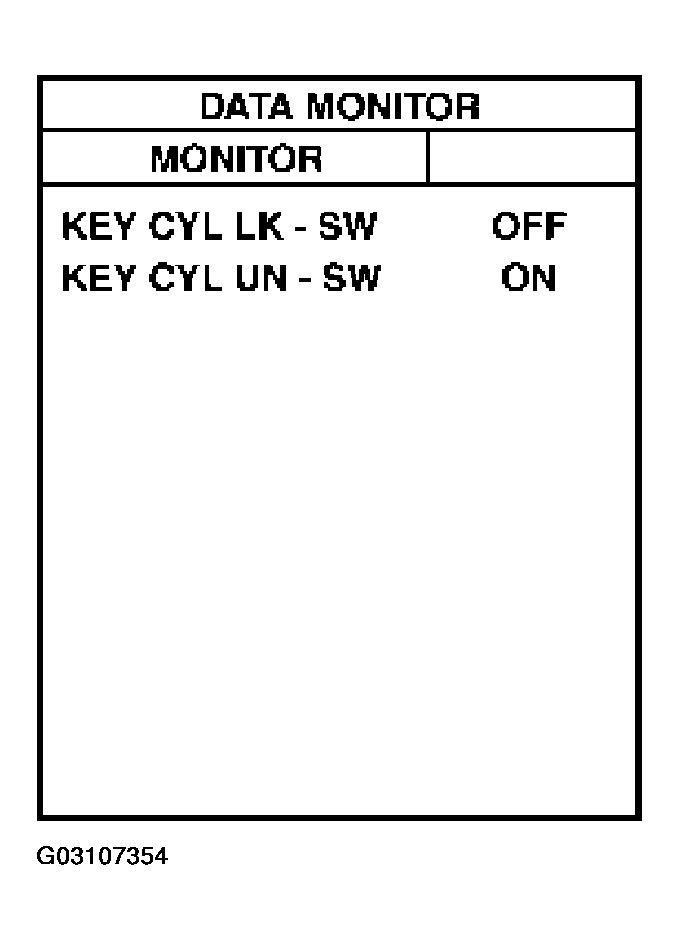

Fig 1: CONSULT-II Display - KEY CYL LK-SW, KEY CYL UN-SW

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between power window main switch connector and ground.

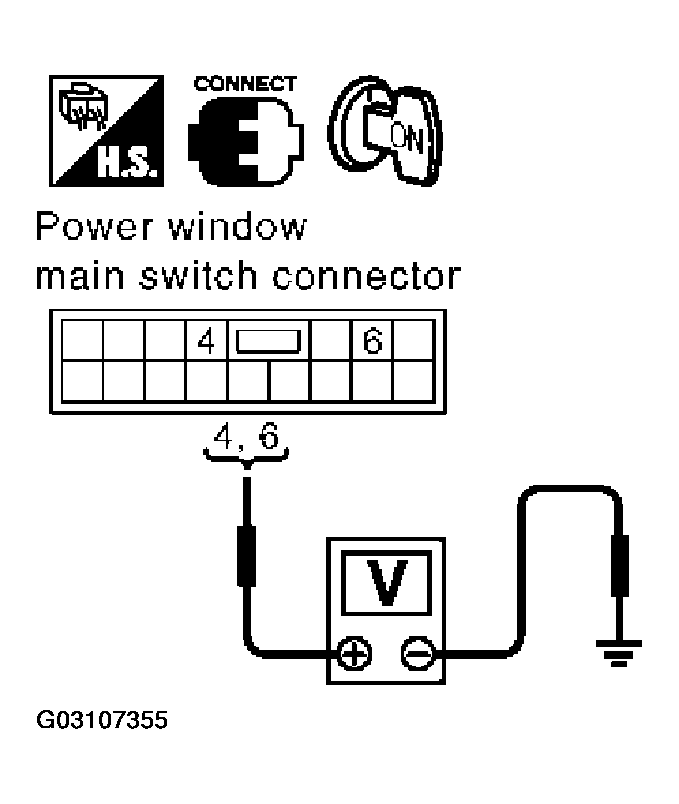

Fig 2: Checking Door Key Cylinder Switch Input Signal

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Further inspection is necessary. Refer to symptom chart.
2. NG: GO TO 2.

1. Turn ignition switch OFF.
2. Disconnect power window main switch and front door key lock assembly (driver side) connector.
3. Check continuity between power window main switch connector D6 terminal 4, 6 and front door lock assembly (driver side) connector D10 terminals 1, 6.

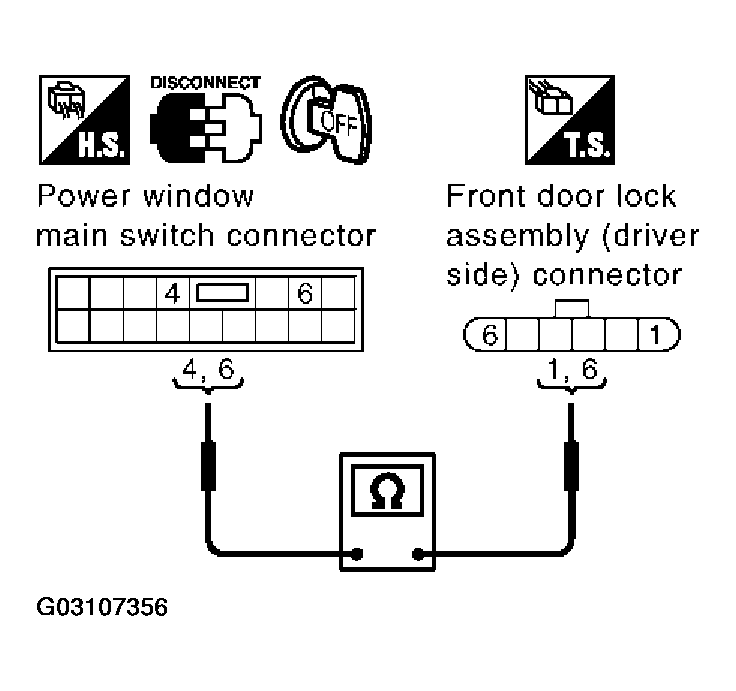

   Fig 3: Checking Door Key Cylinder Switch Harness Continuity

   Courtesy of NISSAN MOTOR CO., U.S.A.

   4 (P) - 1 (P): Continuity should exist.

   6 (OR) - 6 (OR): Continuity should exist.

OK or NG

1. OK: GO TO 3.
2. NG: Repair or replace harness between power window main switch and front door key lock assembly (driver side).

Check continuity between front door lock assembly (driver side) connector D10 terminal 5 and ground.

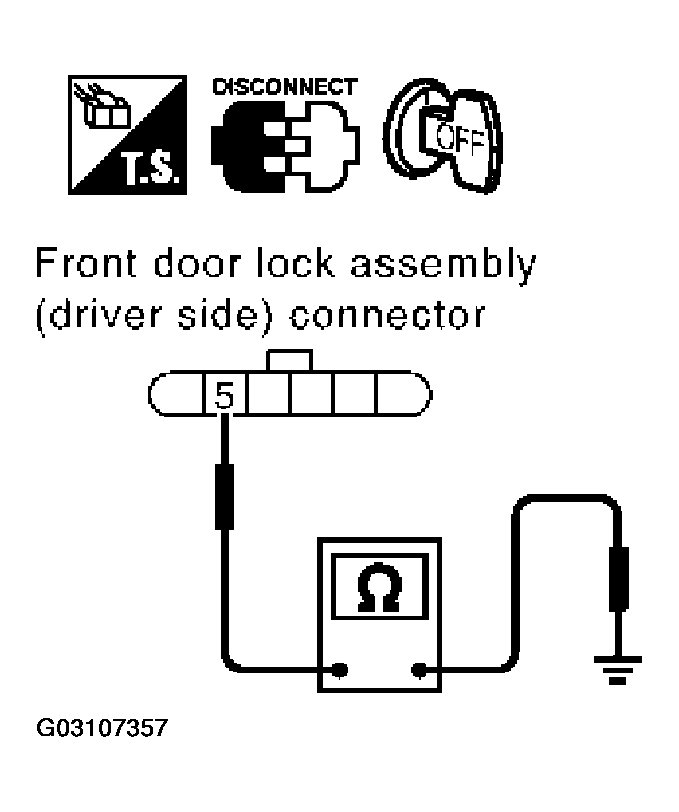

Fig 4: Checking Door Key Cylinder Switch Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

5 (B) - Ground: Continuity should exist.

OK or NG

1. OK: GO TO 4.
2. NG: Repair or replace harness.

Check continuity between door lock assembly terminal 1, 6 and 5.

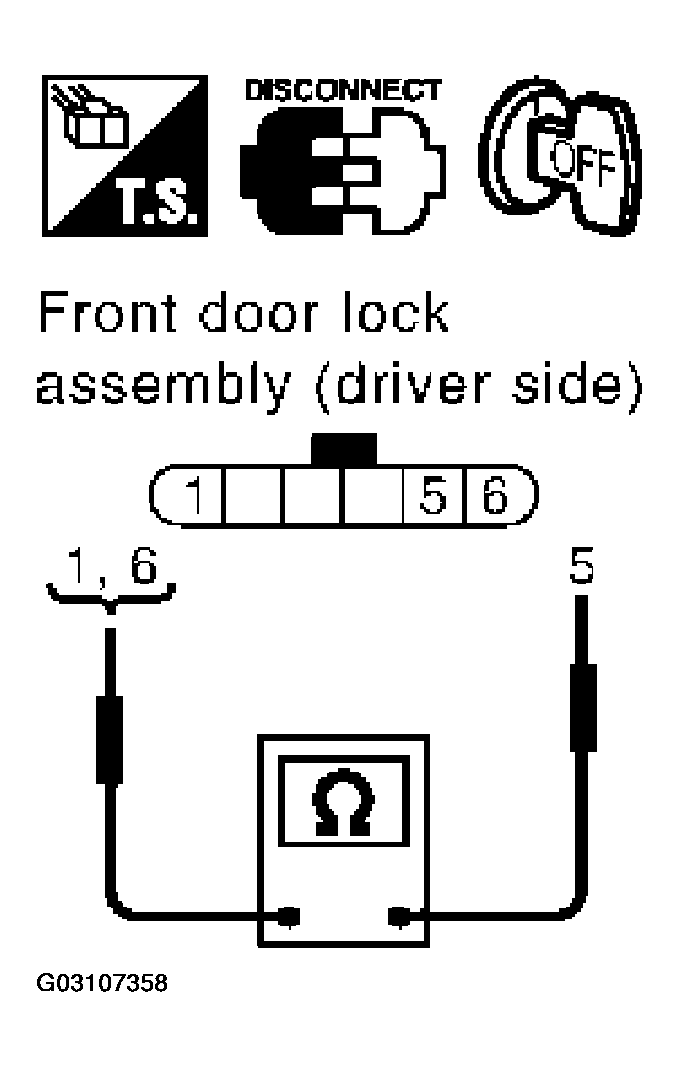

Fig 5: Checking Door Key Cylinder Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Further inspection is necessary. Refer to symptom chart.
2. NG: Replace front door key cylinder (driver side) switch.
