Data Monitor Mode Reference Values

For engine cooling fan circuit specification data, see Fig 1.

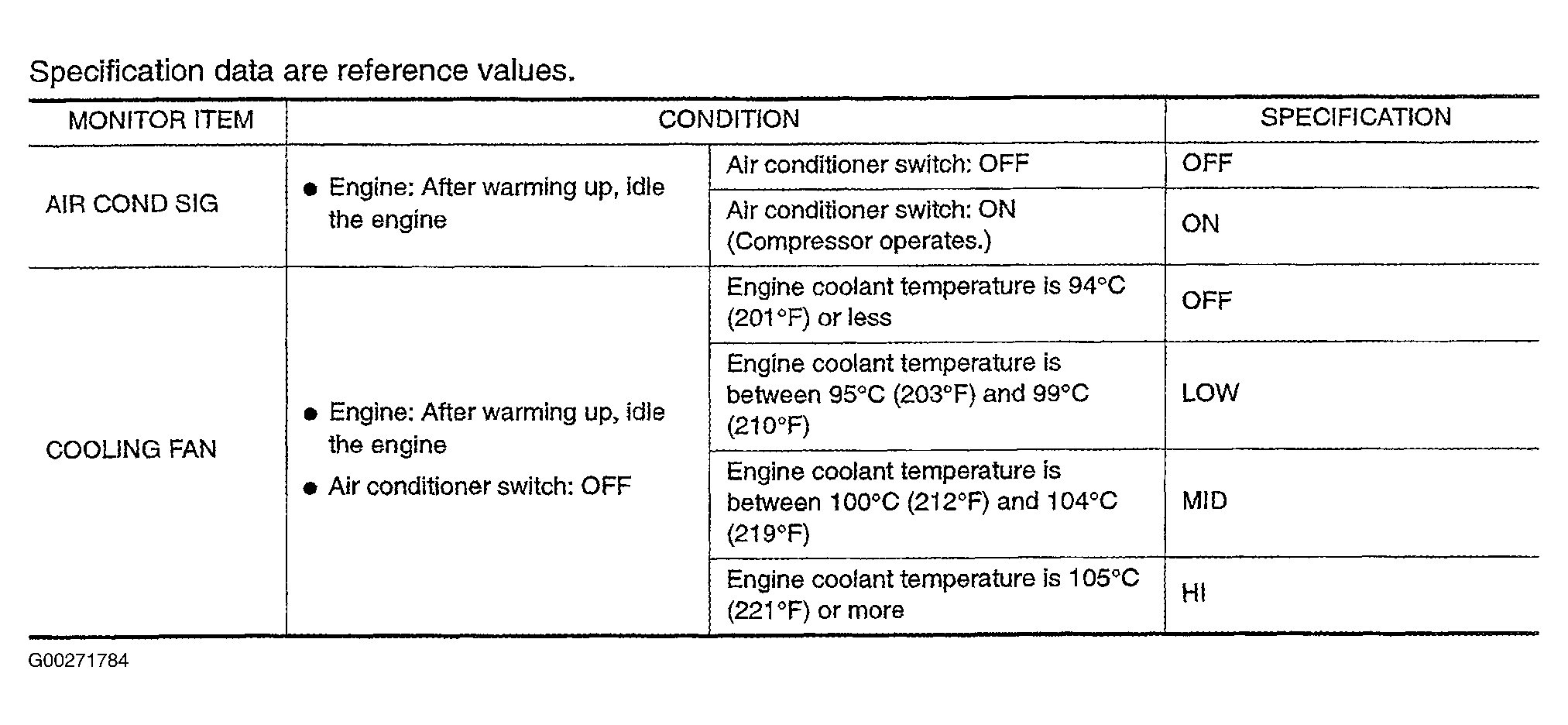

Fig 1: Cooling Fan Circuit Specification Data
G00271784Courtesy of NISSAN MOTOR CO., U.S.A.
