Remote Keyless Entry System: Schematic

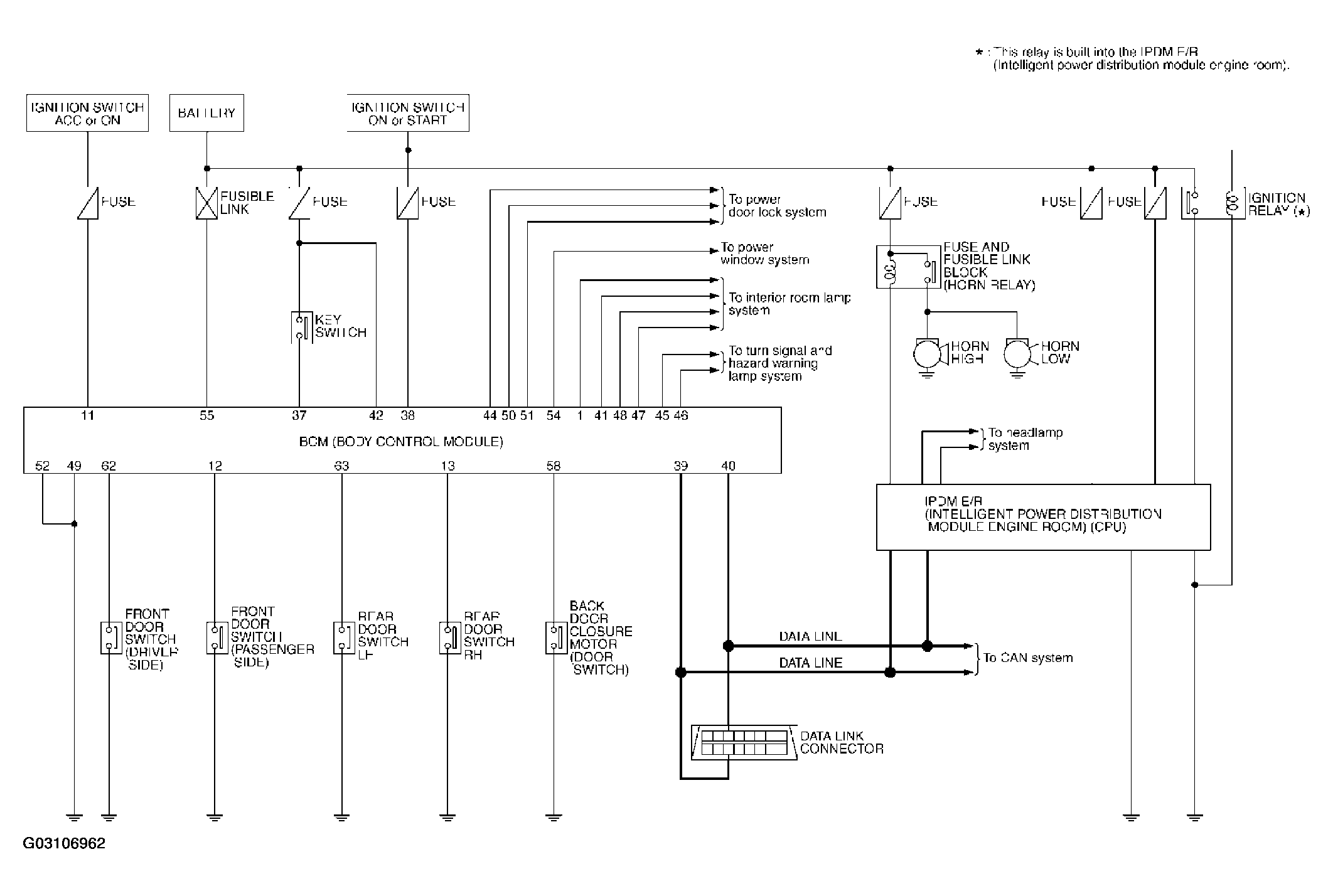

Fig 1: Remote Keyless Entry System Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
