Door Switch Check
- CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II

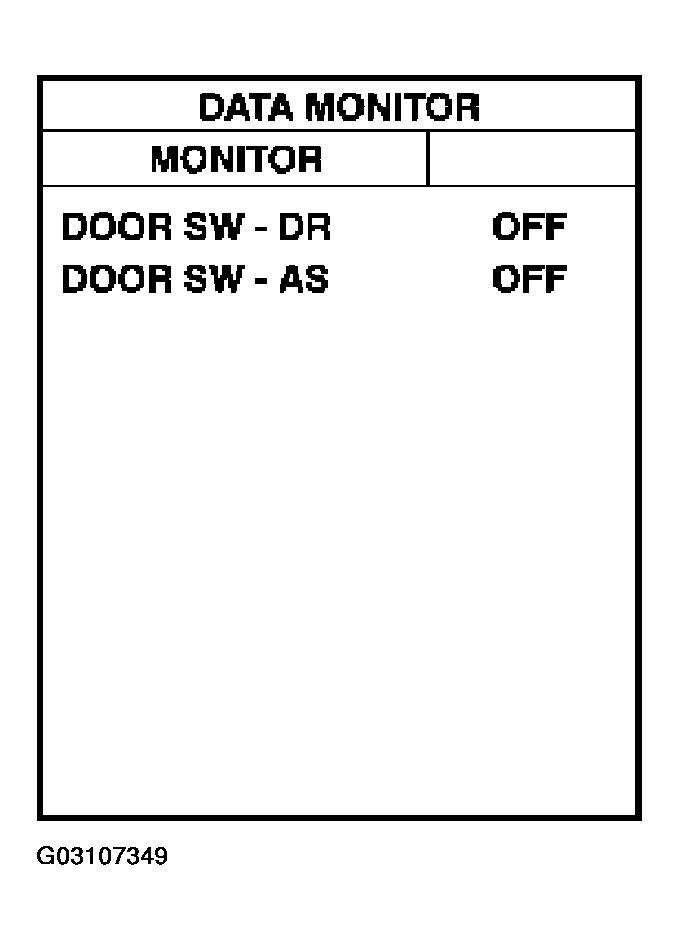

Check ("DOOR SW-DR" and "DOOR SW-AS") in "DATA MONITOR" mode with CONSULT-II.
MONITOR ITEM - CONDITIONMonitor item Condition DOOR SW-DR OPEN: ON CLOSE: OFF DOOR SW-AS OPEN: ON CLOSE: OFF Without CONSULT-II

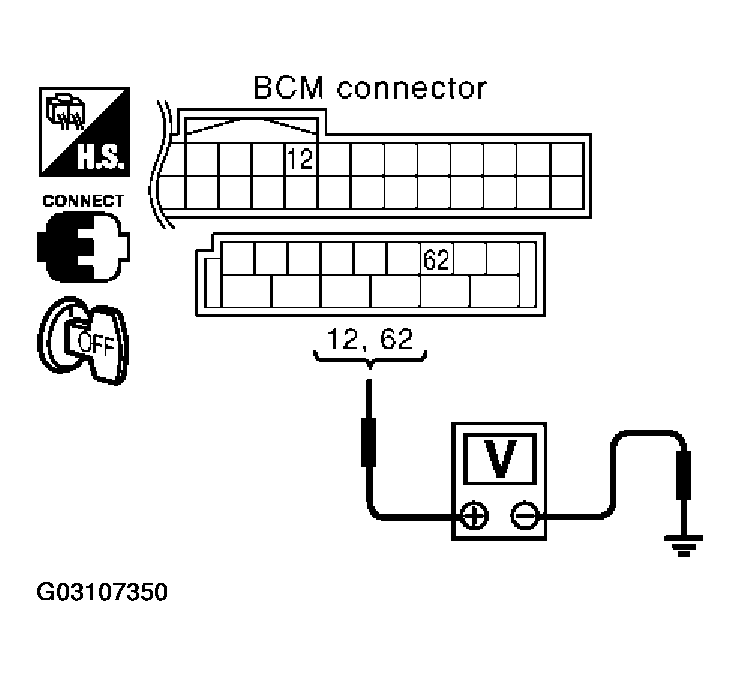

Check voltage between BCM connector M3, B14 terminals 12, 62 and ground.
DOOR SWITCH VOLTAGEItem Terminals (Wire color) Door condition Voltage (V) (Approx.) (+) (-) Passenger side door switch 12(P/B) Ground OPEN 0 CLOSE Battery voltage Driver side door switch 62 (W) OPEN 0 CLOSE Battery voltage OK or NG
- OK: Door switch is OK.
- NG: GO TO 2.
- CHECK HARNESS CONTINUITY
- Turn ignition switch OFF.
- Disconnect door switch and BCM connector.

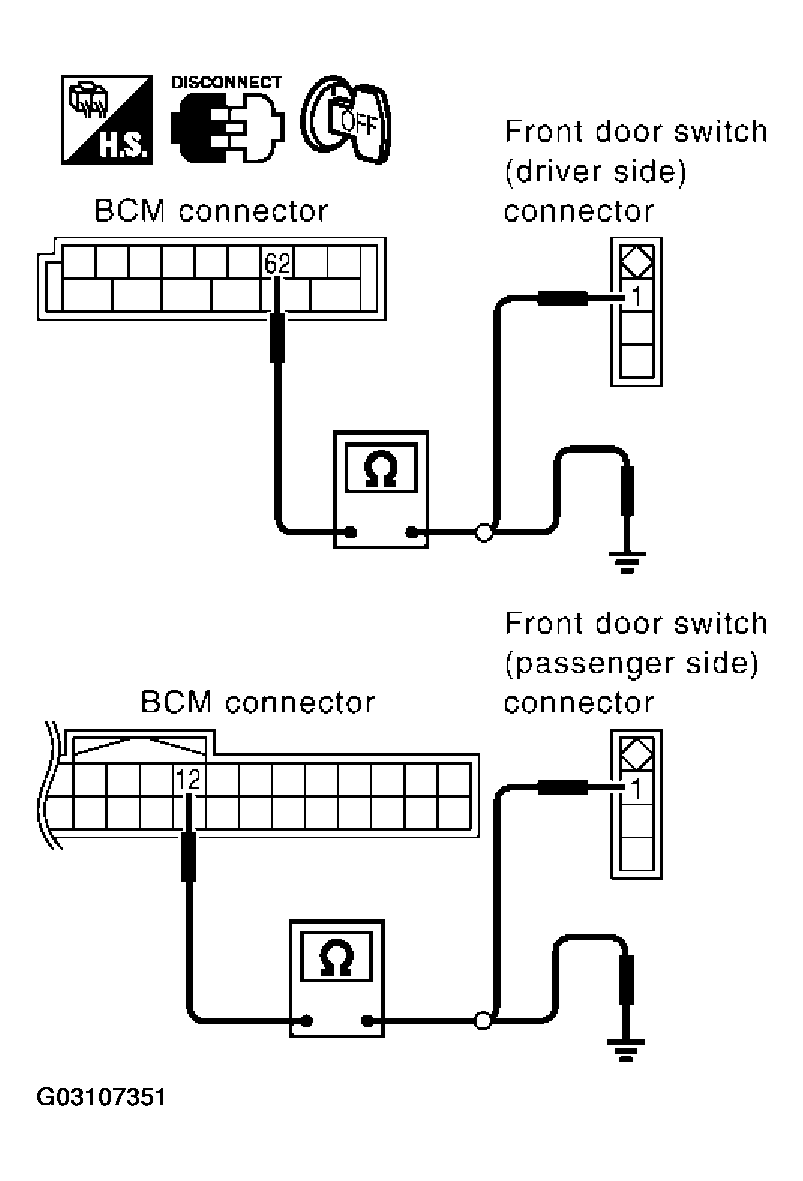

- Check continuity between BCM connector M3, B14 terminal 12, 62 and door switch connector B26, B36 terminal 1.
Driver side door
62 (W) - 1 (W): Continuity should exist.
Passenger side door
12 (P/B) - 1 (SB): Continuity should exist.
- Check continuity between BCM connector M3, B14 terminals 12, 62 and ground.
12 (P/B) - Ground: Continuity should not exist.
62 (W) - Ground: Continuity should not exist.
OK or NG
- OK: GO TO 3.
- NG: Repair or replace harness.
- CHECK DOOR SWITCH

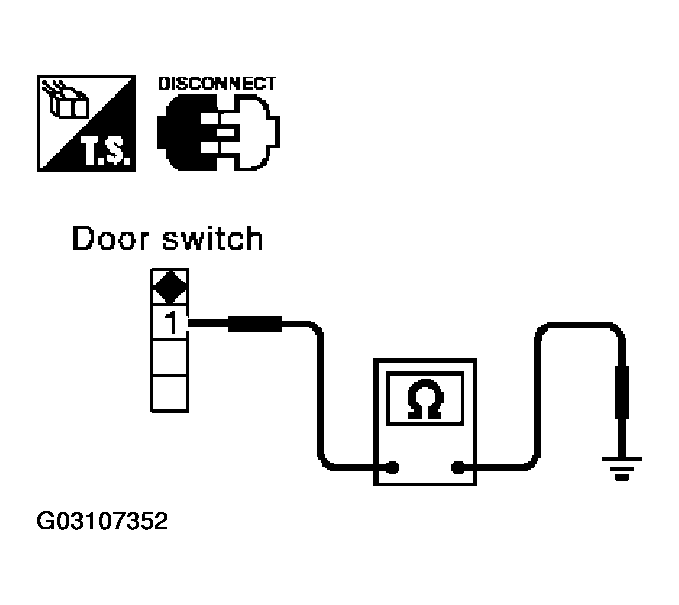

Check continuity between door switches terminal 1 and ground part of door switch.
DOOR SWITCH CONTINUITYTerminal Door switch Continuity 1 Ground part of door switch Pushed No Released Yes OK or NG
- OK: GO TO 4.
- NG: Replace malfunction door switch.
- CHECK BCM OUTPUT SIGNAL
- Connect BCM connector.

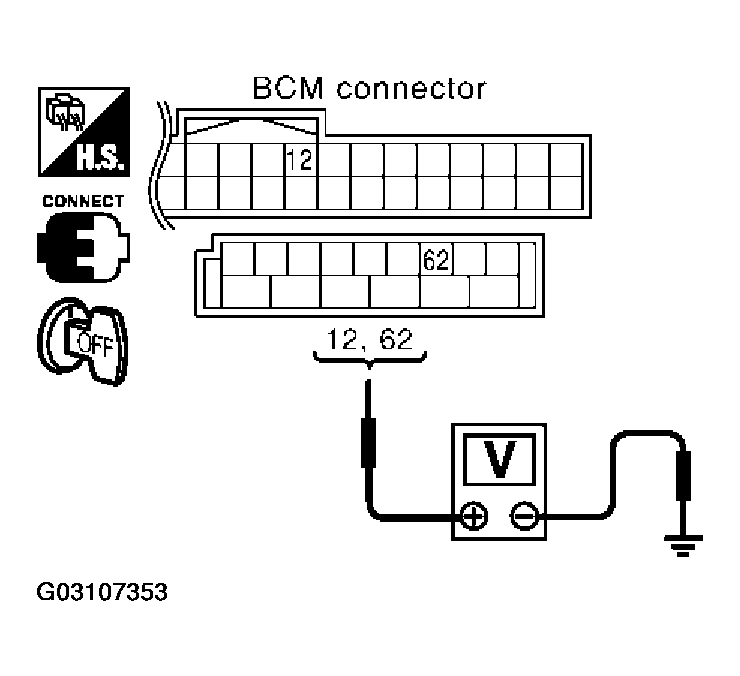

- Check voltage between BCM connector M3, B14 terminal 12, 62 and ground.
12 (P/B) - Ground: Battery voltage
62 (W) - Ground: Battery voltage
OK or NG
- OK: Further inspection is necessary, Refer to symptom chart.
- NG: Replace BCM.
