Consult-II Inspection Procedure: Notes

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch "OFF".
  2. Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector.

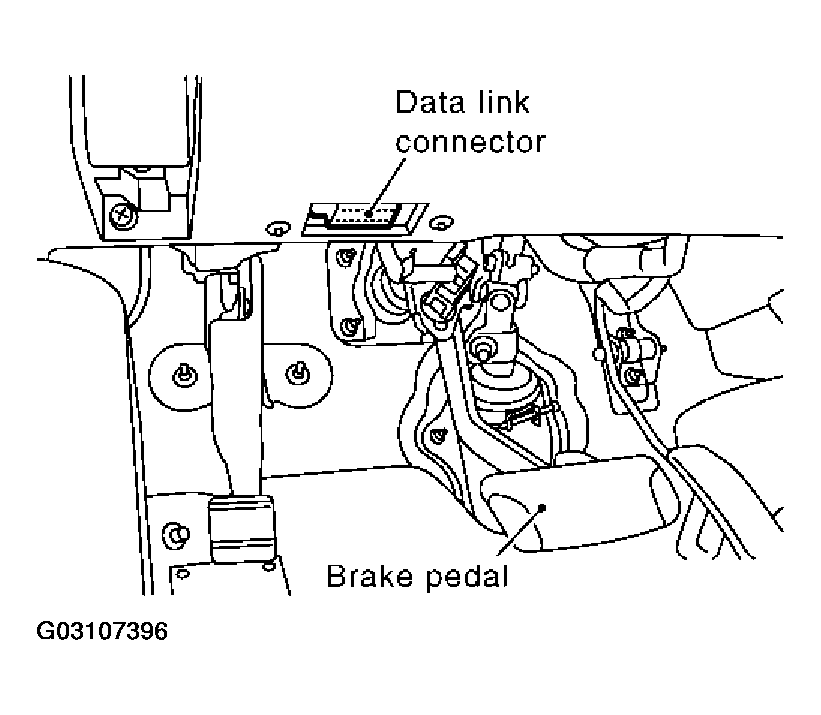

    Fig 1: Data Link Connector
    G03107396Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)".

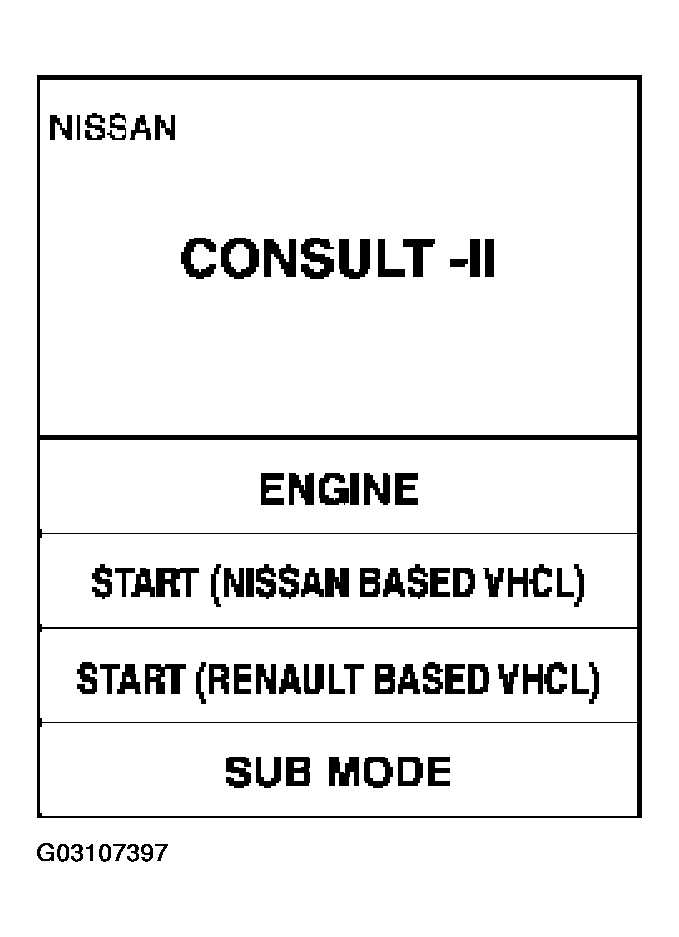

    Fig 2: CONSULT-II Display - START (NISSAN BASED VHCL)
    G03107397Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "BCM".

    If "BCM" is not indicated go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

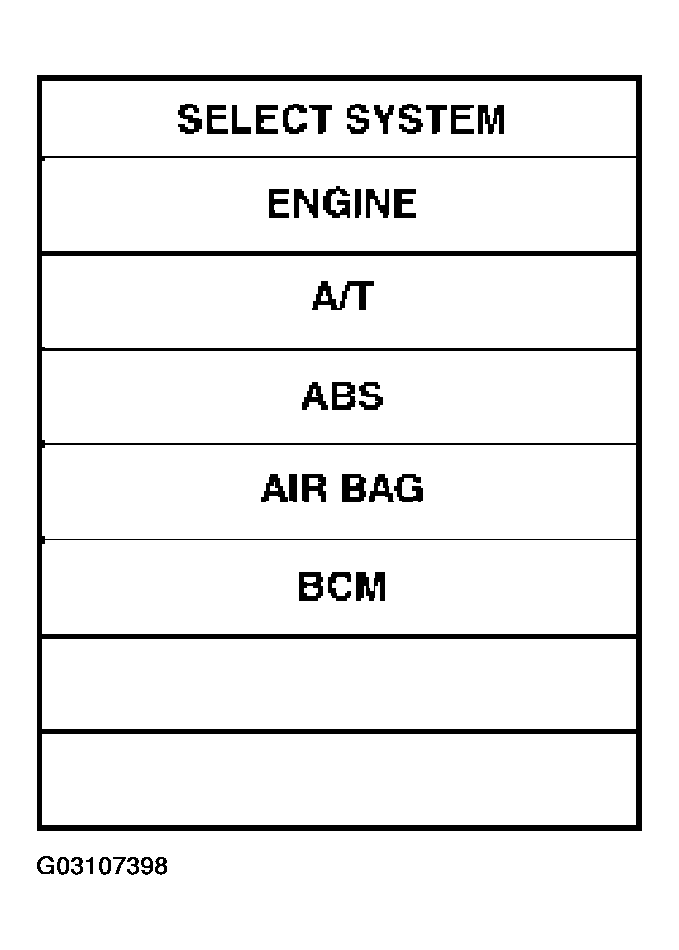

    Fig 3: CONSULT-II Display - BCM
    G03107398Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "REAR DEFOGGER".

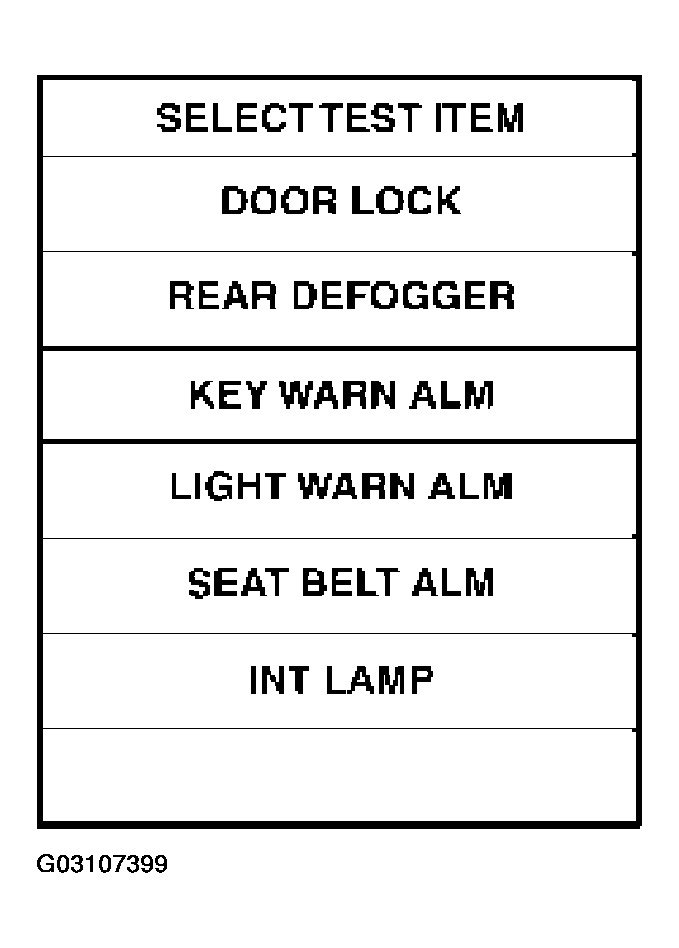

    Fig 4: CONSULT-II Display - REAR DEFOGGER
    G03107399Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Select diagnosis mode, "DATA MONITOR" and "ACTIVE TEST".

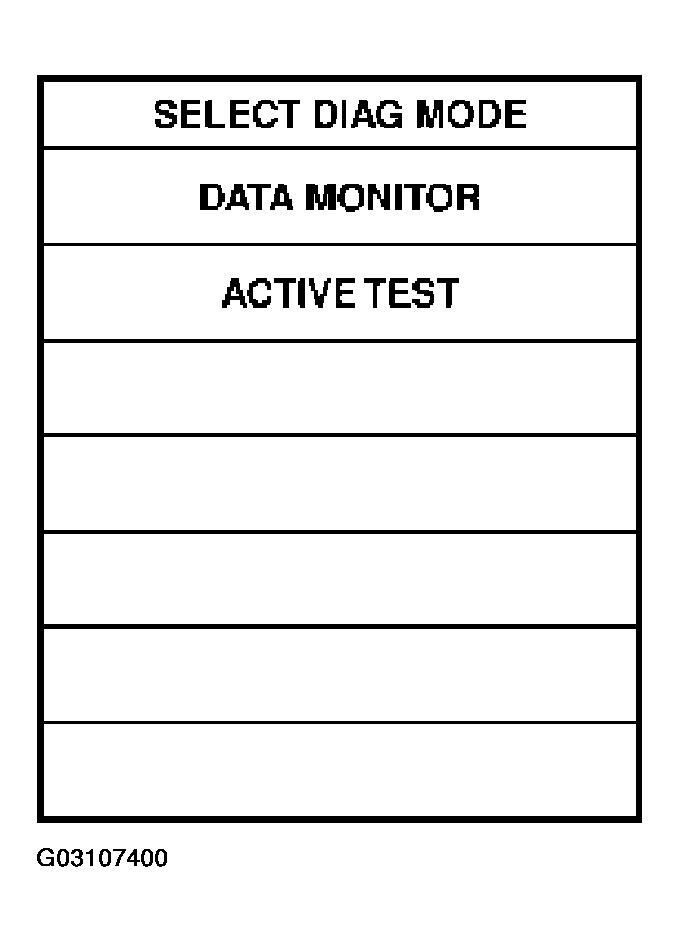

Fig 5: CONSULT-II Display - DATA MONITOR And ACTIVE TEST
G03107400Courtesy of NISSAN MOTOR CO., U.S.A.
