Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| Fuse Block (J/B) | Behind left kick panel. |

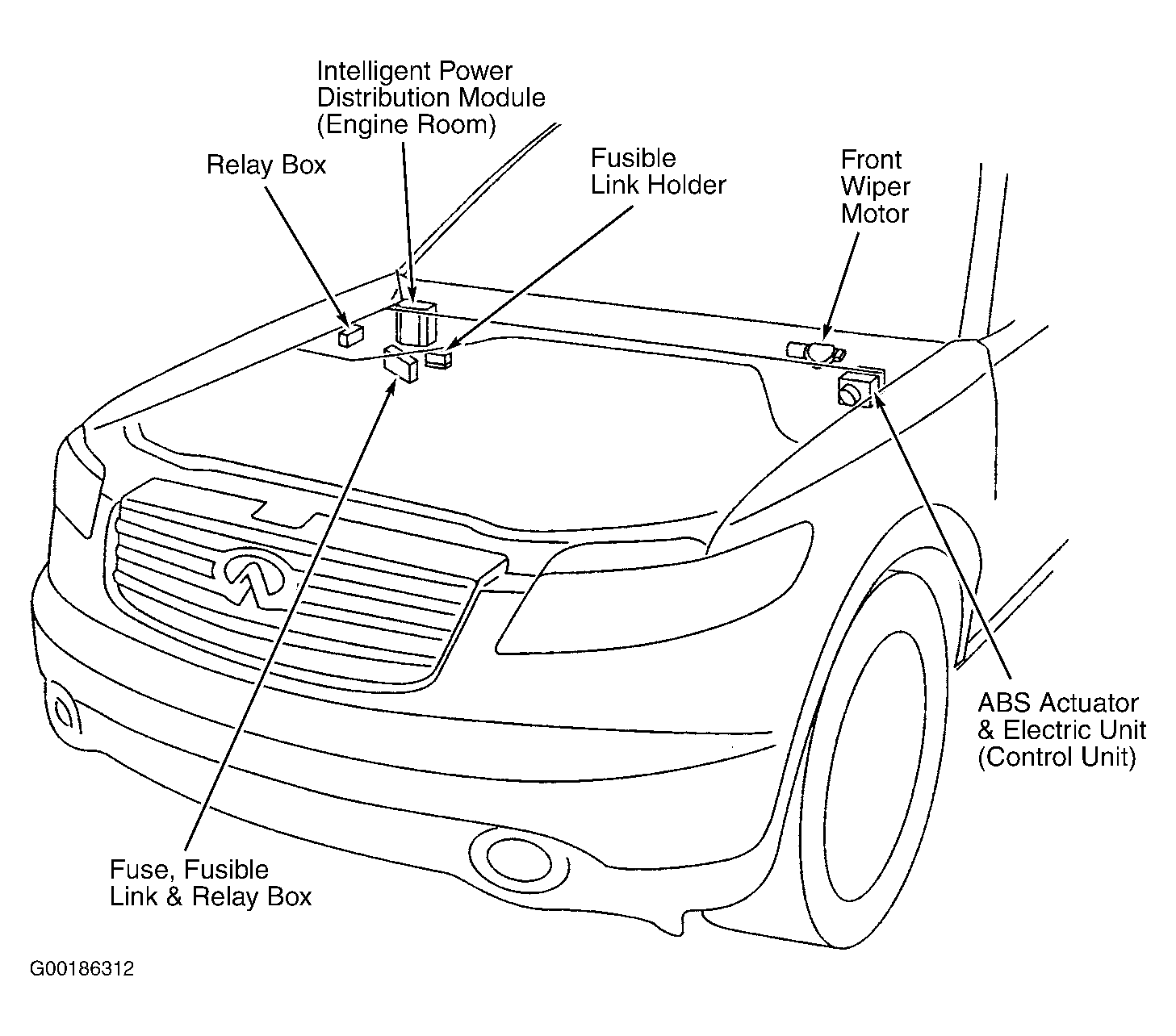

| Fuse, Fusible Link, & Relay Box | At right rear of engine compartment. See Figure . |
| Fusible Link | In fuse, fusible link & relay box. |
| Fusible Link Holder | At right rear of engine compartment. See Figure . |
| Intelligent Power Distribution Module (Engine Room) | At right rear of engine compartment. See Figure . |
| Relay Box | At right rear of engine compartment. See Figure . |
