Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

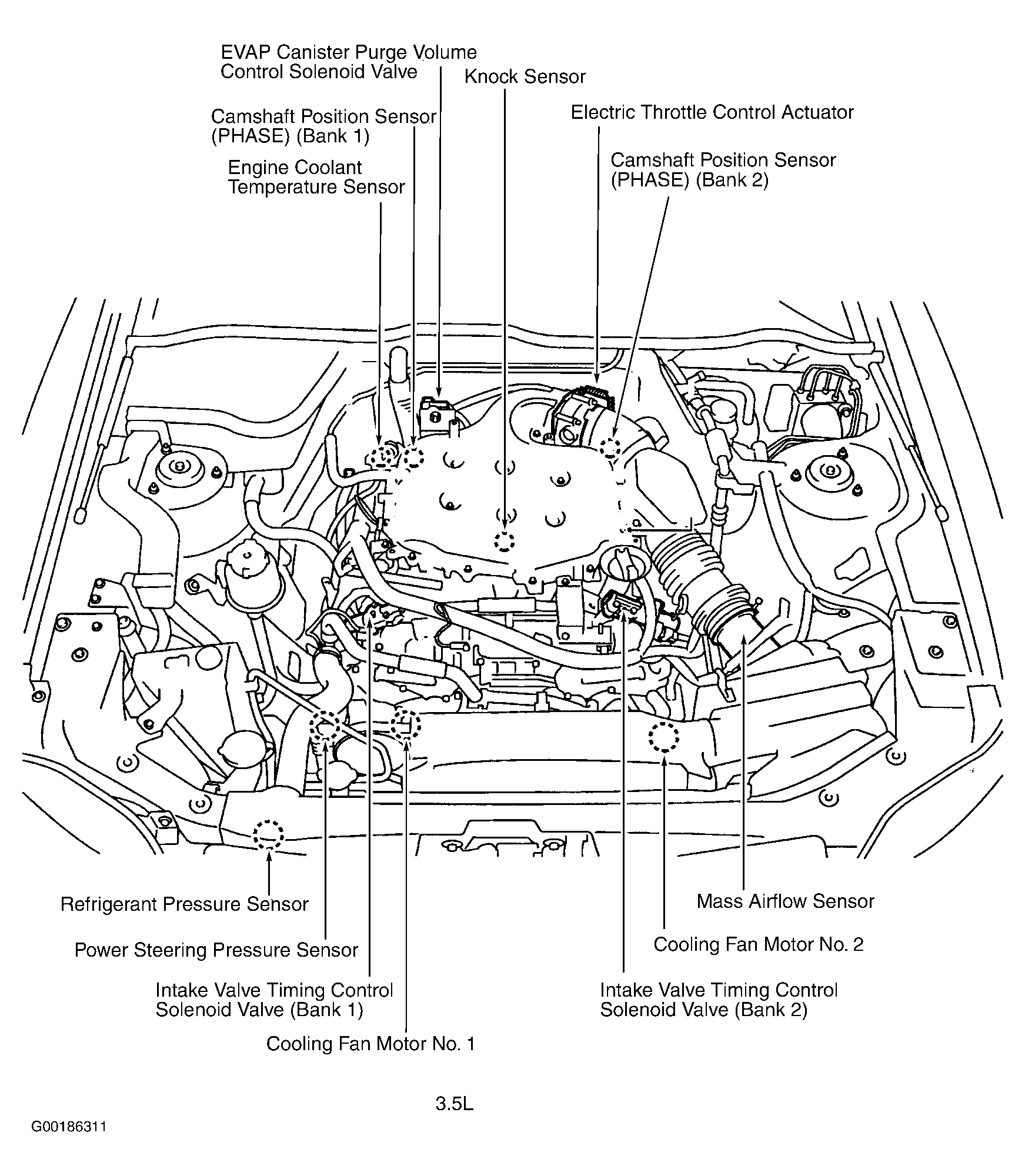

Fig 1: Engine Compartment (3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

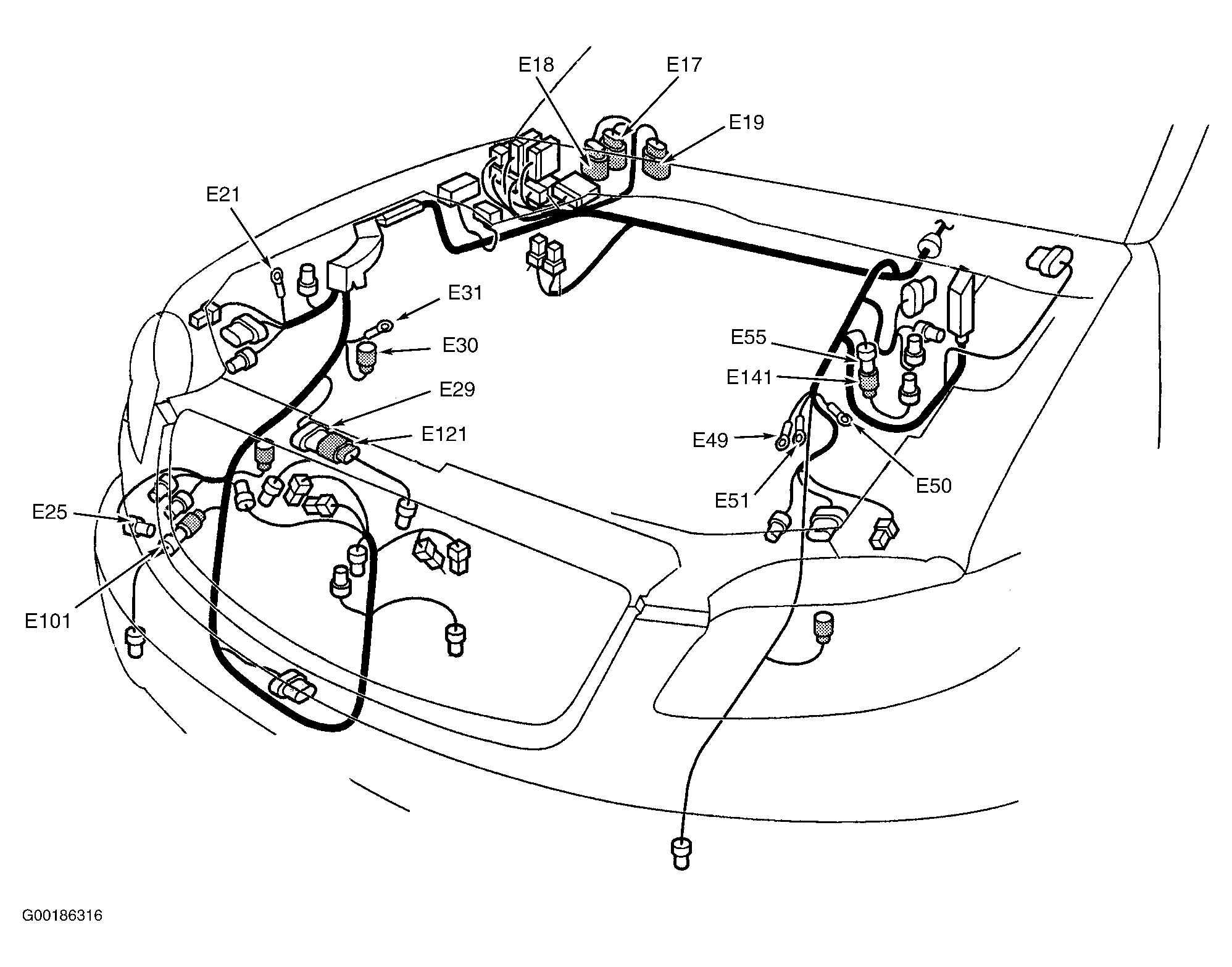

Fig 2: Engine Compartment (4.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

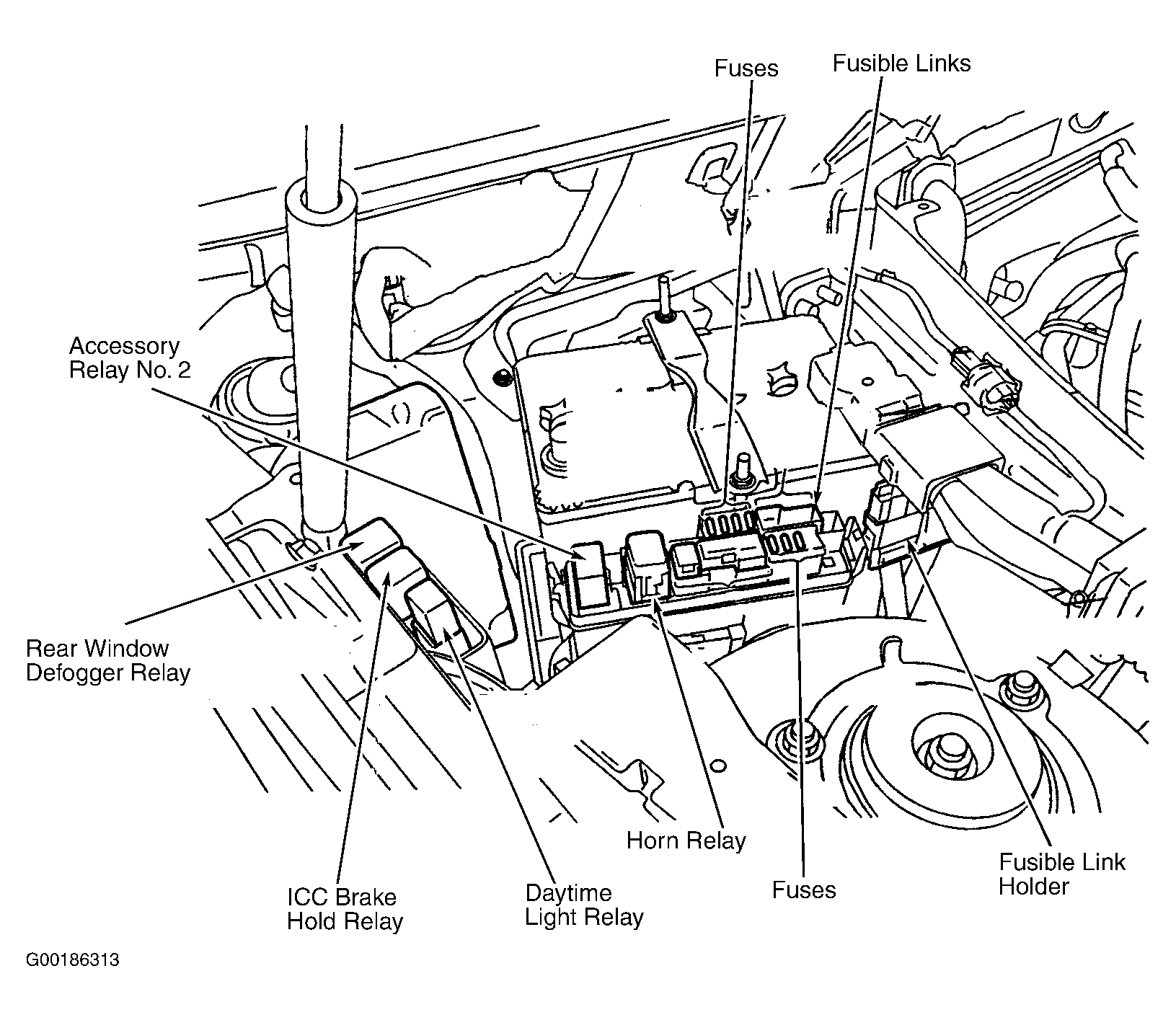

Fig 3: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Rear Of Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Right Rear Of Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Dash & Passenger Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Luggage Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.
