Control Units

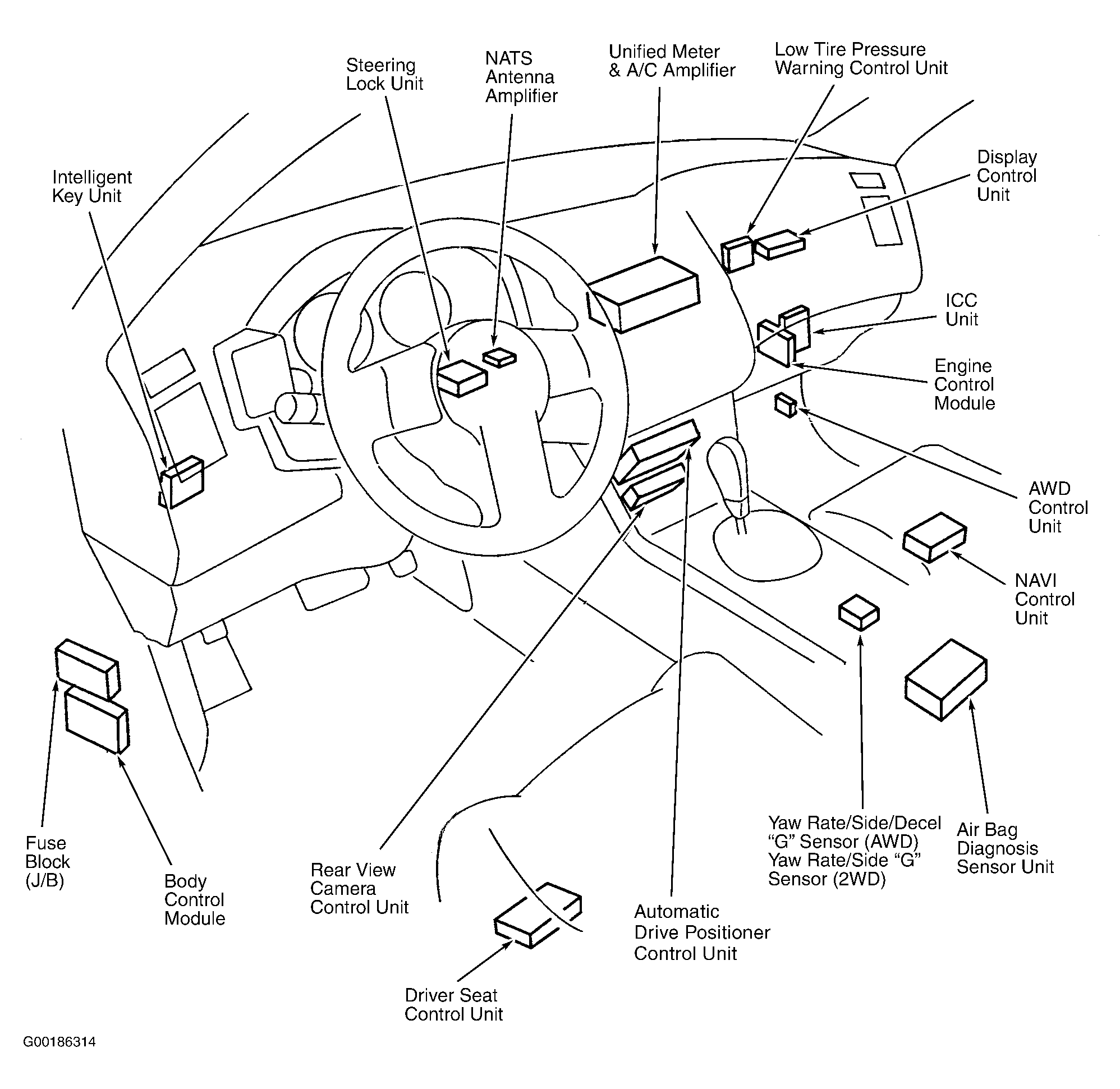

CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Actuator & Electric Unit (Control Unit) | At left rear of engine compartment. See Figure . |
| Air Bag Diagnosis Sensor Unit | Under center console, behind gear selector. See Figure . |
| Automatic Drive Positioner Control Unit | Behind center console. See Figure . |
| AWD Control Unit | Behind right kick panel. See Figure . |

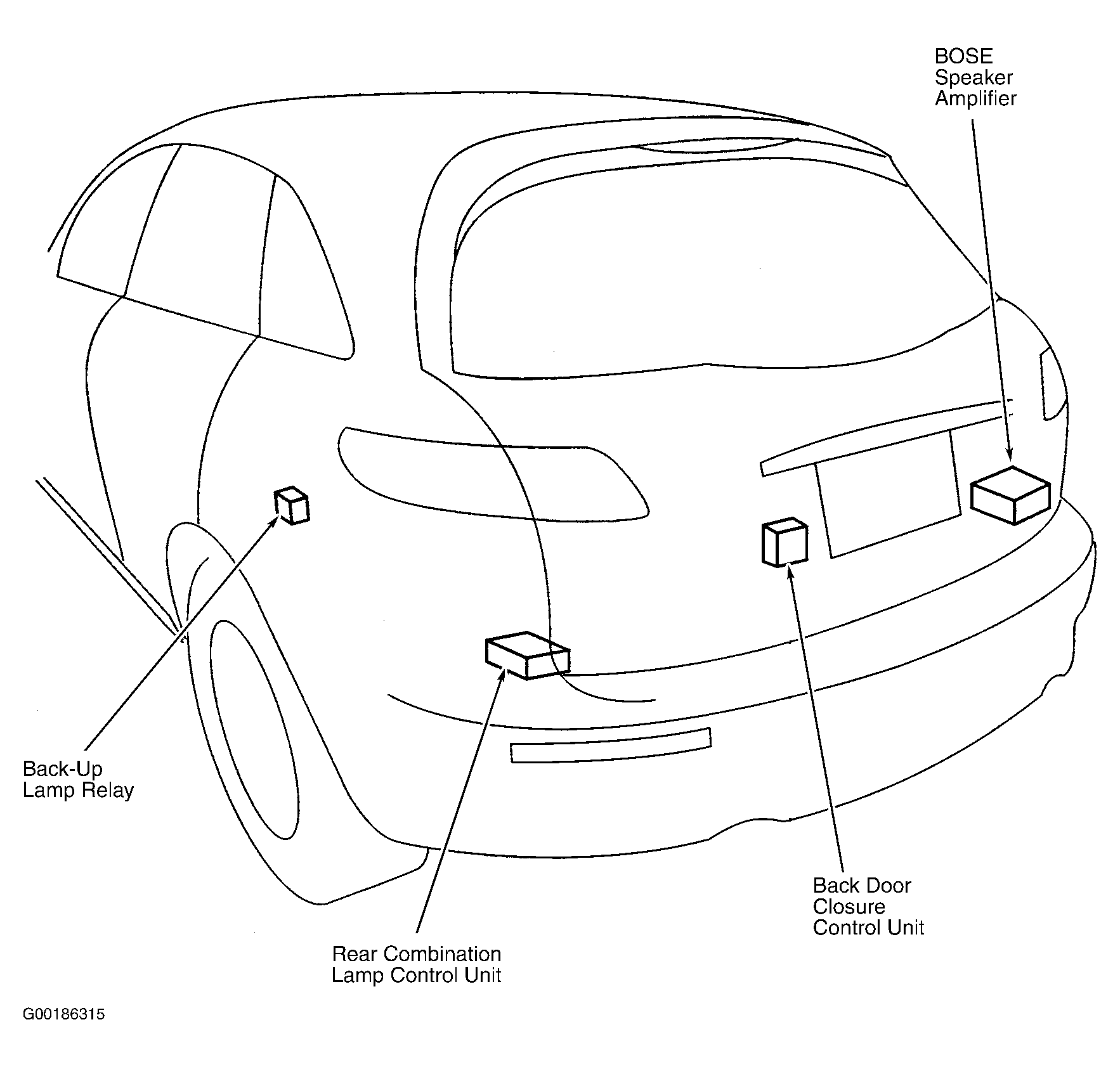

| Back Door Closure Control Unit | In center of rear tailgate, below rear wiper motor. See Figure . |
| Body Control Module | Behind left kick panel. See Figure . |
| Display Control Unit | Behind right side of dash. See Figure . |
| Driver Seat Control Unit | Under driver's seat. See Figure . |

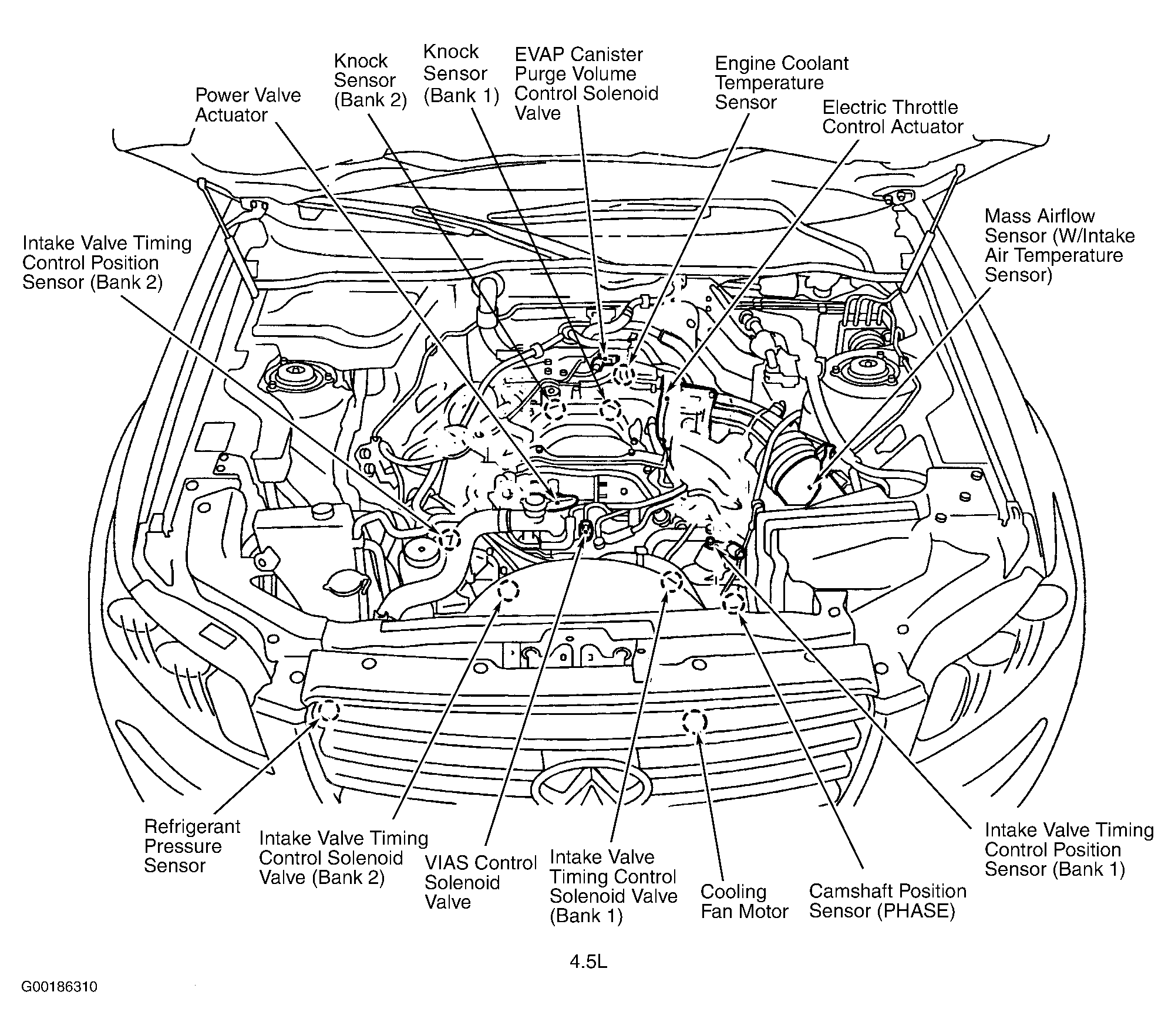

| Electric Throttle Control Actuator | On left side of intake manifold. See Figure . |
| Engine Control Module | Behind glove box. See Figure . |
| Front Left Side Air Bag Module | Under left side of dash. |
| ICC Unit | Behind glove box. See Figure . |
| Intelligent Key Unit | Behind left end of dash. See Figure . |
| Low Tire Pressure Warning Control Unit | Behind right side of dash. See Figure . |
| NAVI Control Unit | Under right front passenger's seat. See Figure . |
| Rear Combination Lamp Control Unit | At left side of luggage compartment. See Figure . |
| Rear View Camera Control Unit | Behind center console. See Figure . |
| Steering Lock Unit | Behind left side of dash, near steering column. See Figure . |
