Diagnostic Procedure

For wiring diagram, see Fig 1 . For diagnostic procedure, see Fig 2 and Fig 3 .

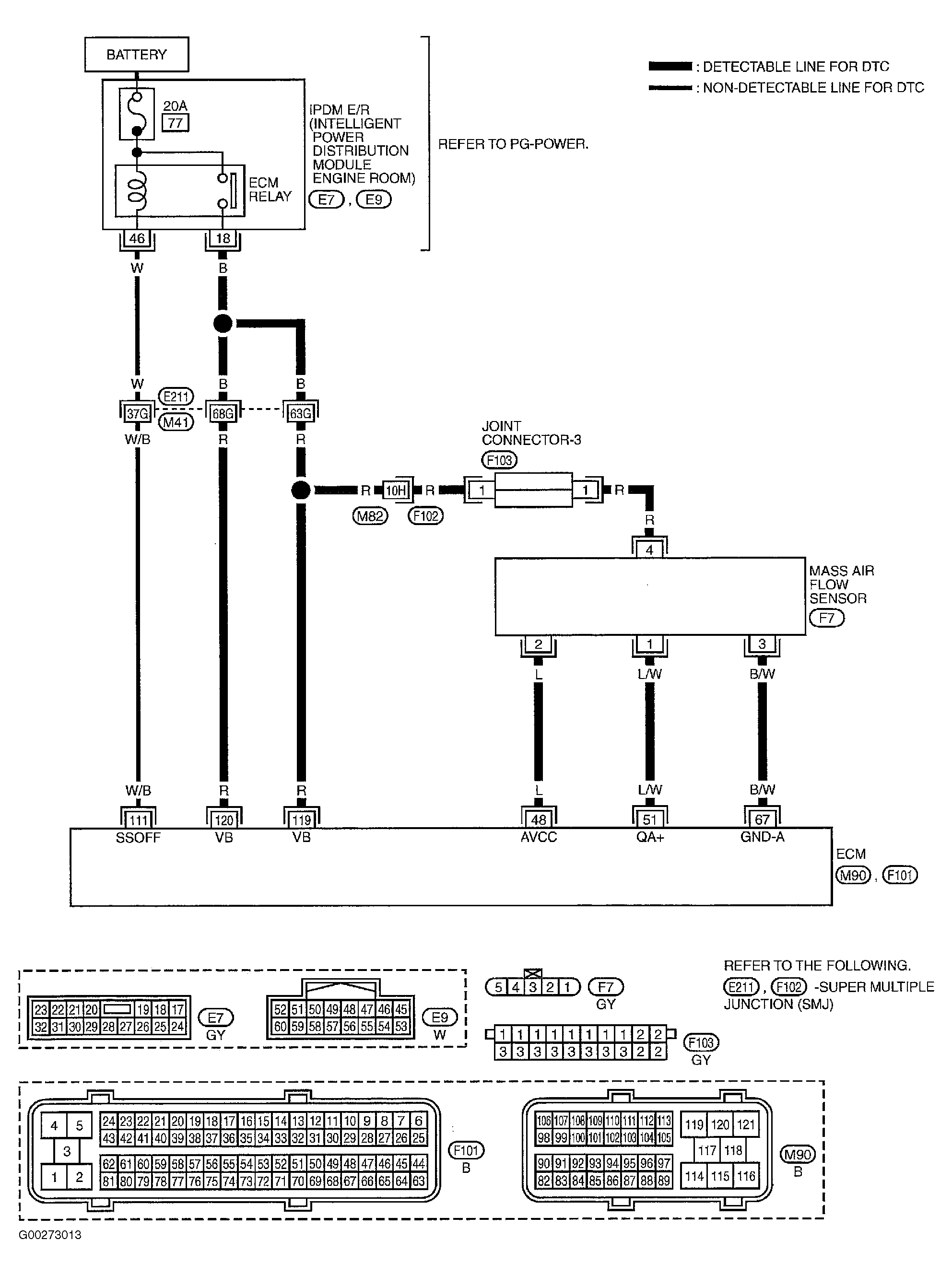

Fig 1: Mass Air Flow Sensor Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

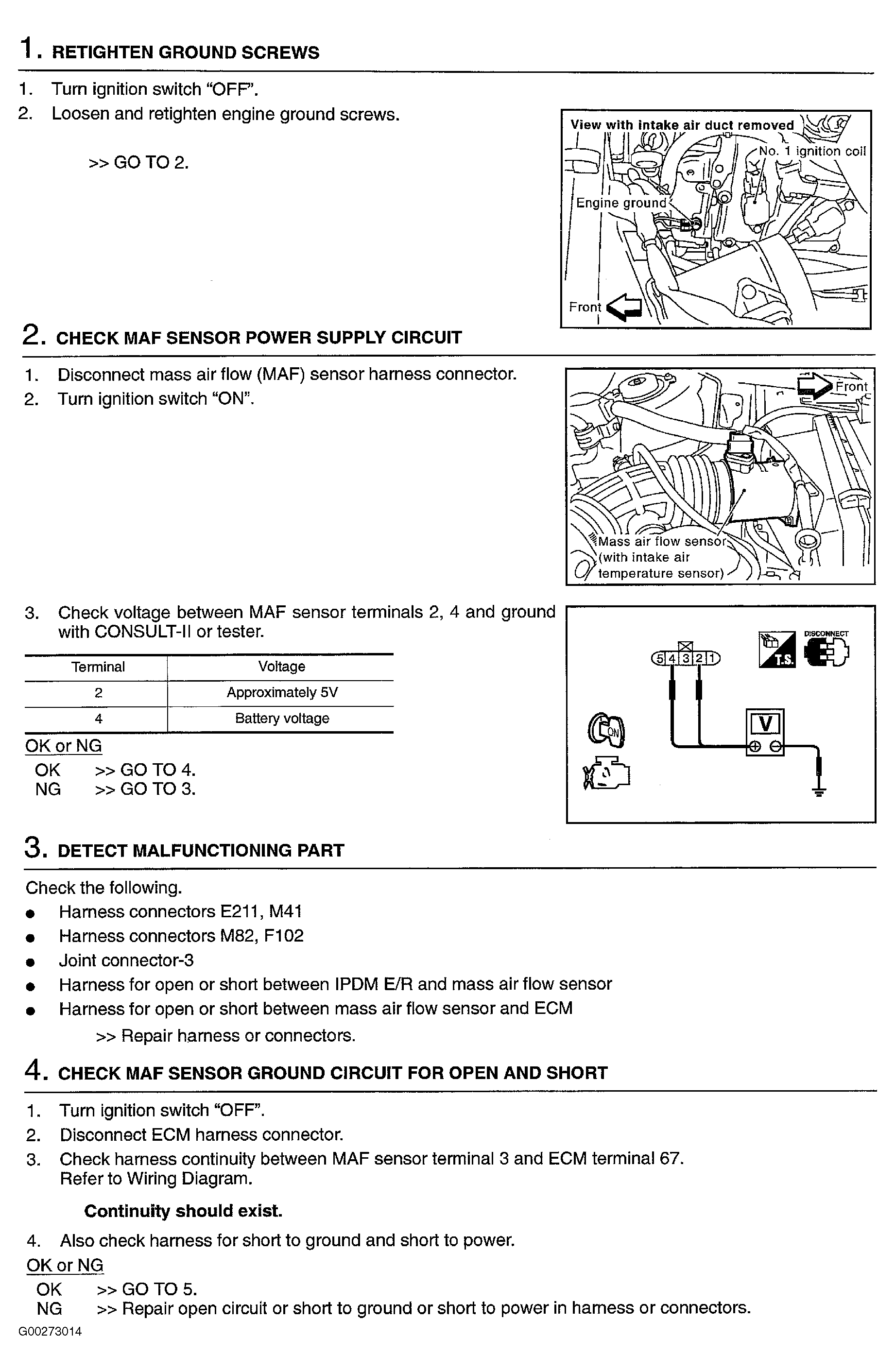

Fig 2: Diagnostic Procedure For Mass Airflow Sensor (Step 1-4)

Courtesy of NISSAN MOTOR CO., U.S.A.

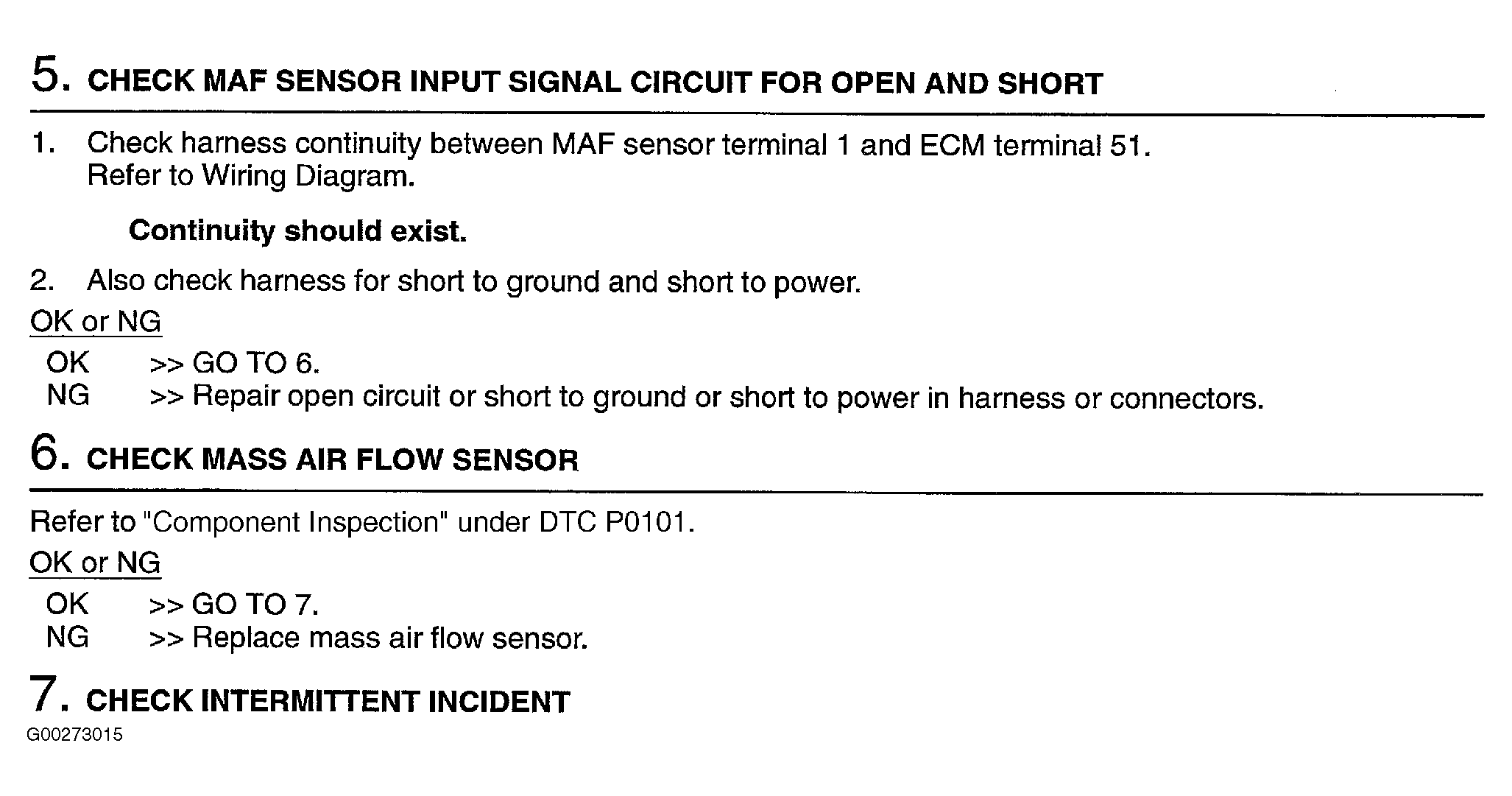

Fig 3: Diagnostic Procedure For Mass Airflow Sensor (Step 5-7)

Courtesy of NISSAN MOTOR CO., U.S.A.
