Reclining Sensor Circuit Inspection

CHECK FUNCTION

With CONSULT-II

Check operation with "RECLINING PUL SE" on the DATA MONITOR to make sure the pulse changes.

MONITOR TEST ITEM DESCRIPTION

Monitor item [OPERATION or UNIT]		Contents
RECLN PULSE	-	The seat reclining position (pulse) judged from the reclining sensor is displayed

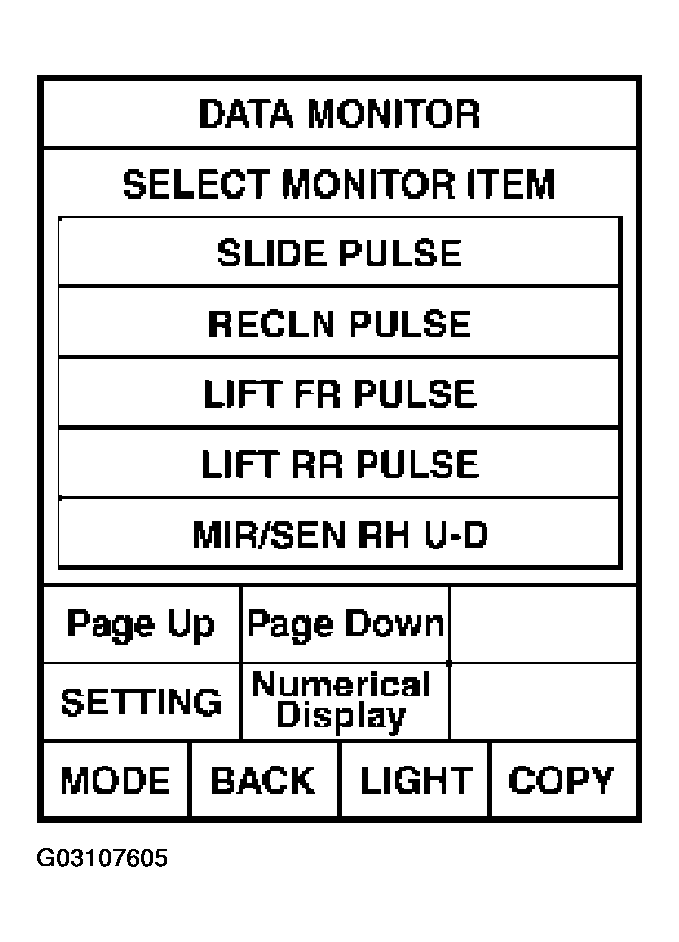

Fig 1: CONSULT-II Display - RECLINING PULSE On DATA MONITOR

G03107605

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Turn ignition switch OFF.
Check signal between driver seat control unit connector and ground, with oscilloscope.

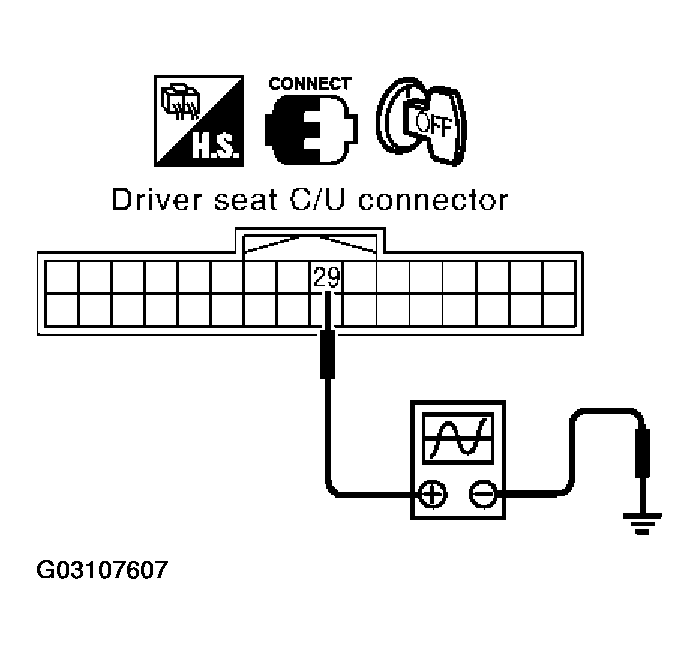

Fig 2: Checking Signal Between Driver Seat Control Unit Connector And Ground (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

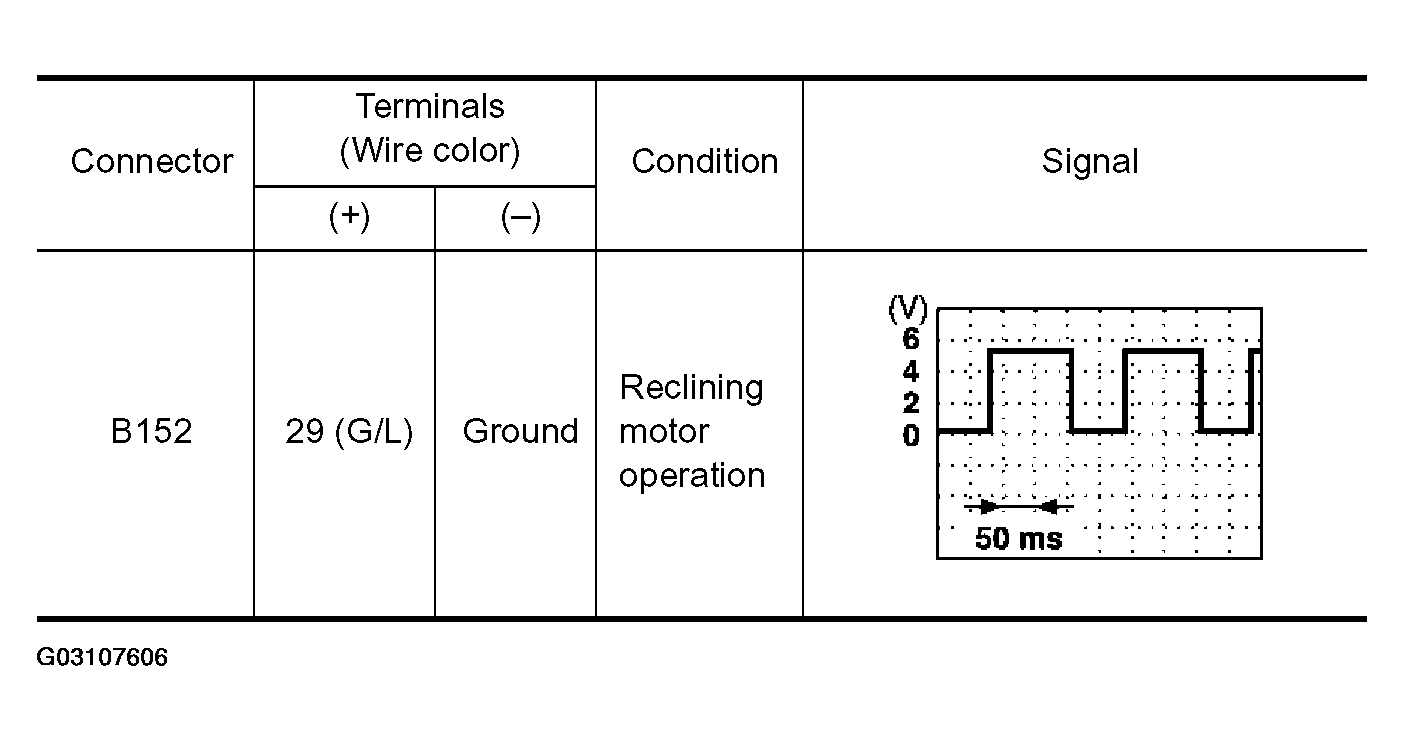

Fig 3: Checking Signal Between Driver Seat Control Unit Connector And Ground (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Reclining sensor circuit is OK.
NG: GO TO 2.

CHECK RECLINING SENSOR HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and reclining motor connector.
2. Check continuity between driver seat control unit connector B152 terminals 28C (B/W), 29 (G/L) and reclining motor connector B166 terminals 28 (B/W), 29 (G/L).

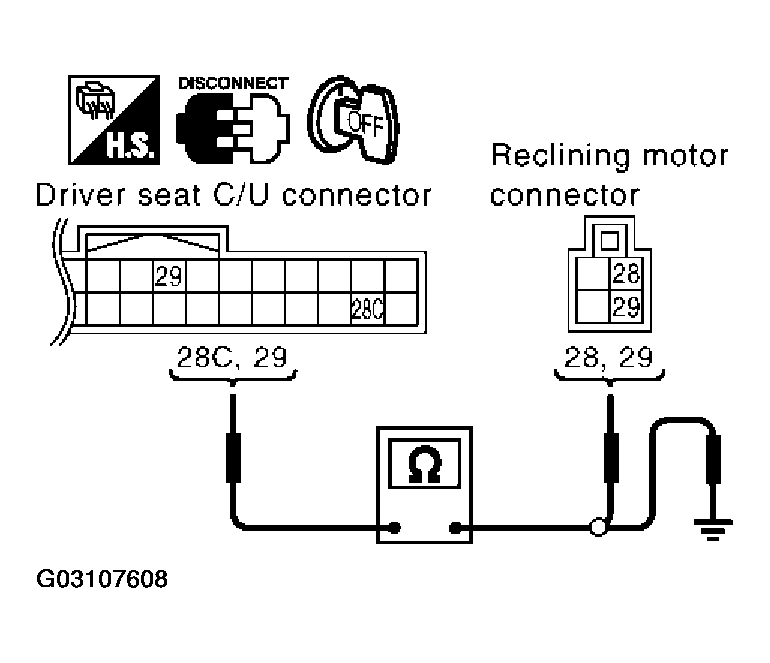

  Fig 4: Checking Reclining Sensor Harness Continuity
  Courtesy of NISSAN MOTOR CO., U.S.A.

  28C (B/W) - 28 (B/W): Continuity should exist.

  29 (G/L) - 29 (G/L): Continuity should exist.
3. Check continuity between driver seat control unit connector B152 terminals 28C (B/W), 29 (G/L) and ground.
  28C (B/W) - Ground: Continuity should not exist.

  29 (G/L) - Ground: Continuity should not exist.
OK or NG
1. OK: Replace reclining motor.
2. NG: Repair or replace harness between connectors driver seat control unit and reclining motor.
