Terminals and Reference Values for Driver Seat Control Unit

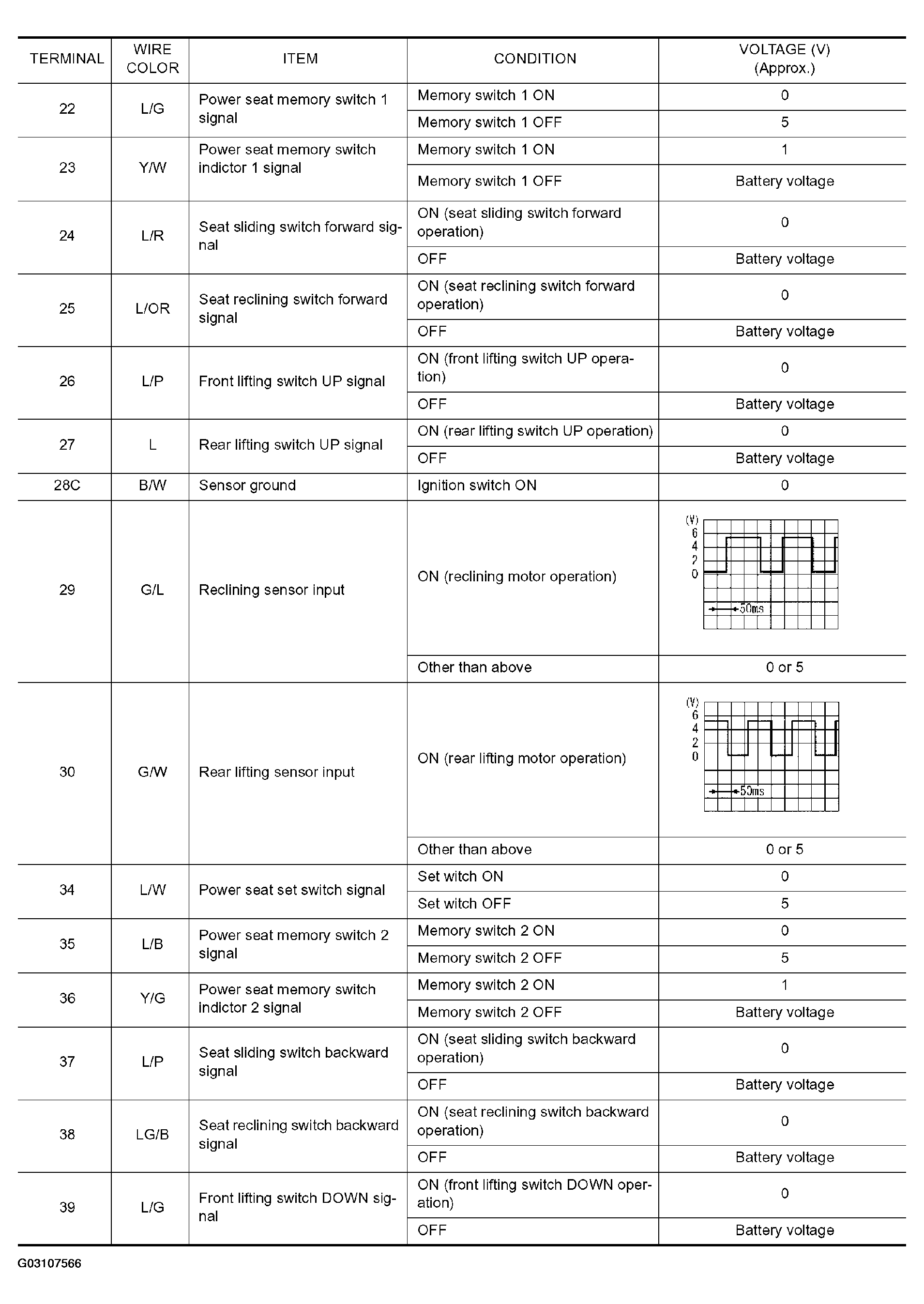

Fig 1: Driver Seat Control Unit Terminals And Reference Values Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

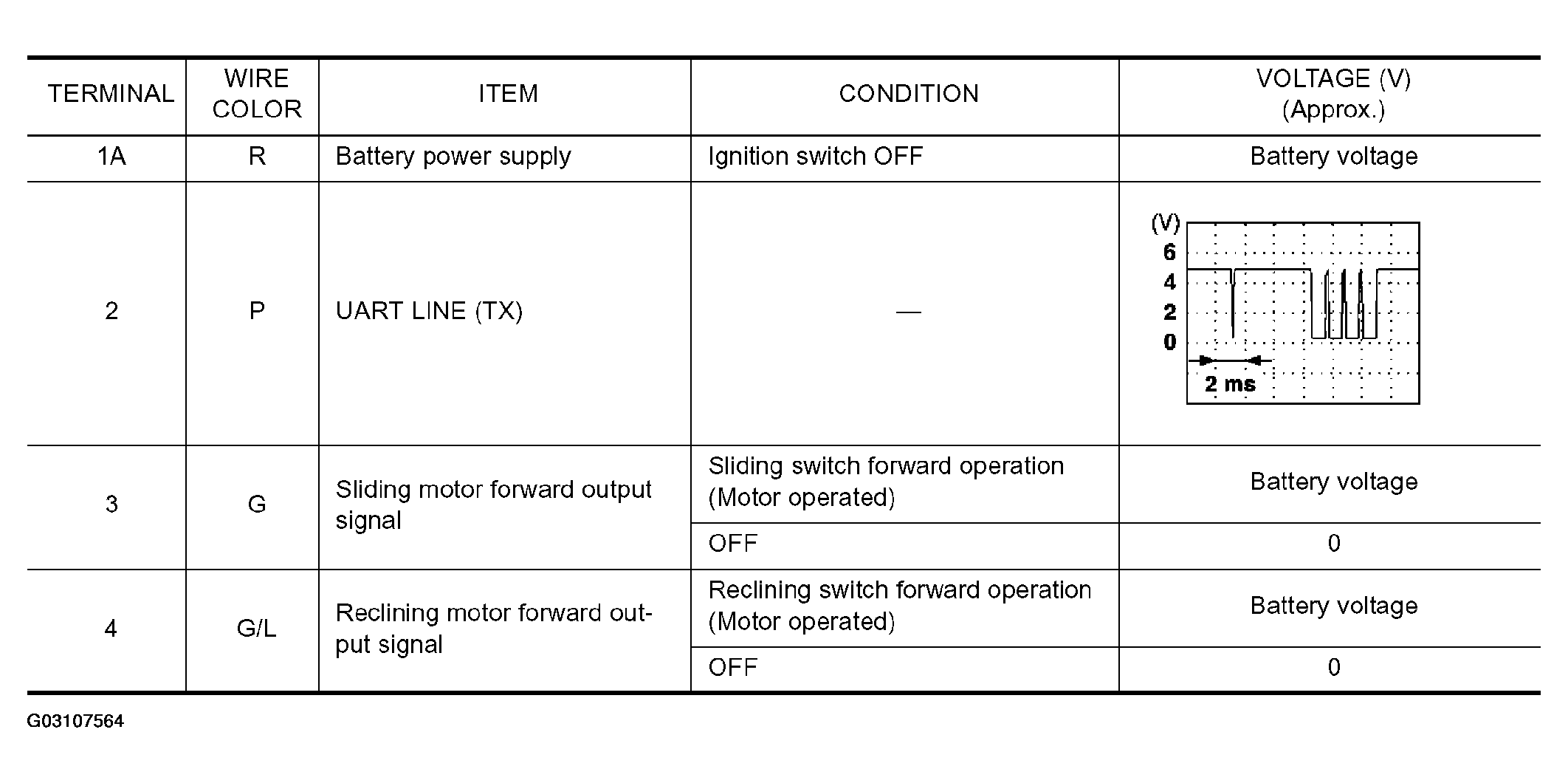

Fig 2: Driver Seat Control Unit Terminals And Reference Values Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

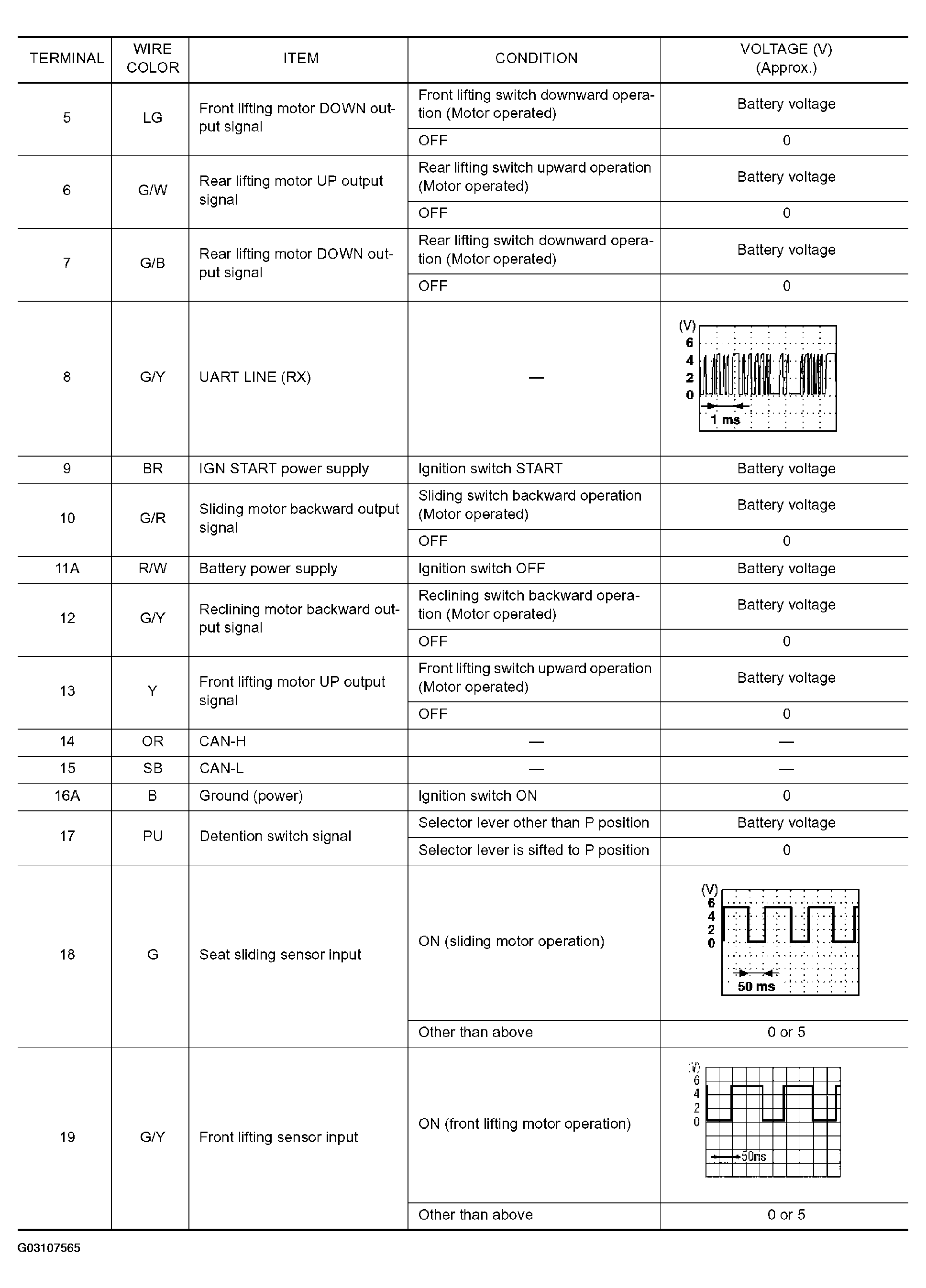

Fig 3: Driver Seat Control Unit Terminals And Reference Values Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

TERMINALS AND REFERENCE VALUES FOR DRIVER SEAT CONTROL UNIT

TERMINAL	WIRE COLOR	ITEM	CONDITION	VOLTAGE (V) (Approx.)
40	L/Y	Rear lifting switch DOWN signal	Rear lifting switch DOWN operation)	0
			OFF	Battery voltage
61E	B/Y	Ground (signal)	Ignition switch ON	0
