Shift Control Device: Notes

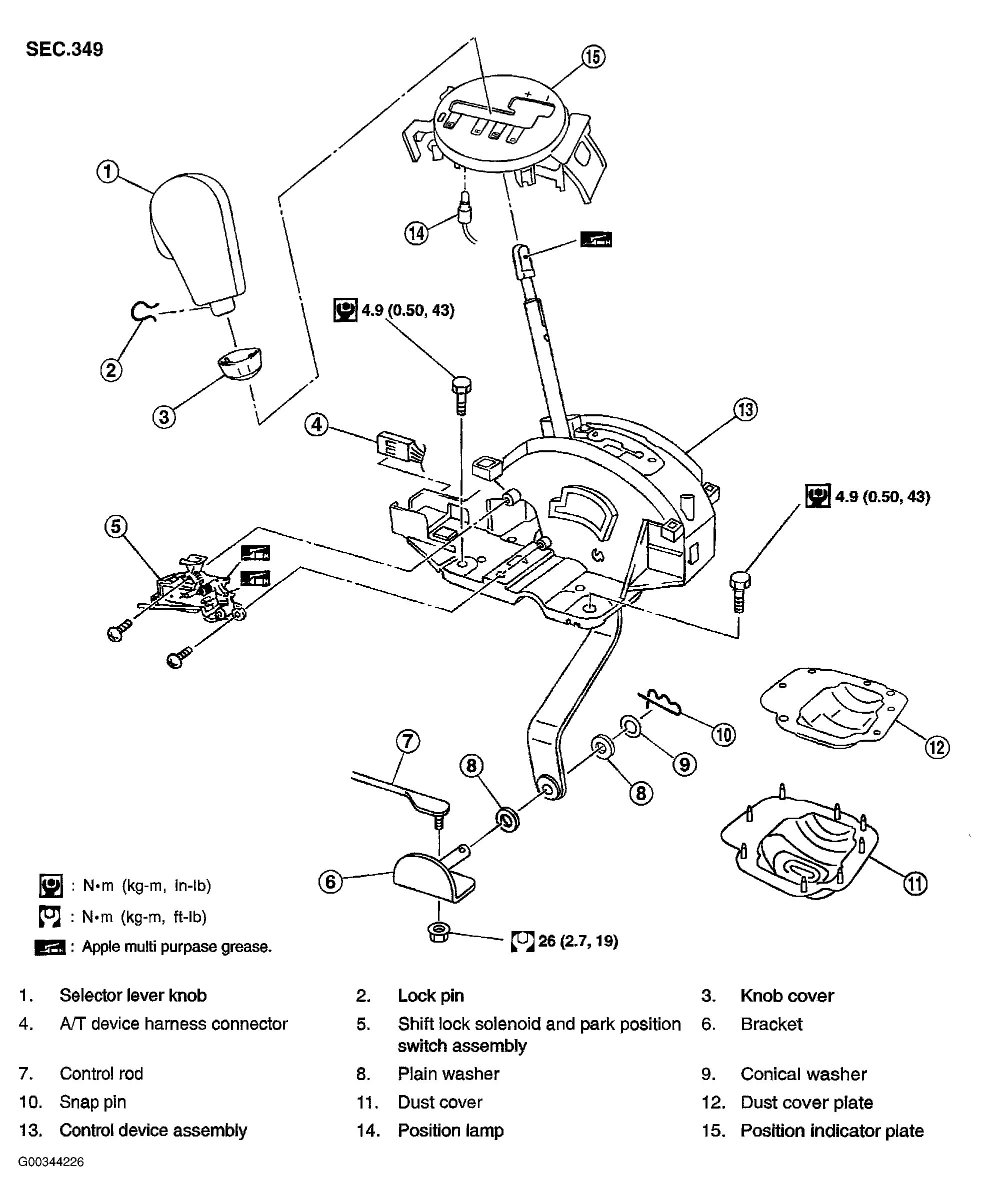

Fig 1: Identifying Shift Control Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
