AWD Control Unit

Controls distribution of drive power between rear-wheel drive (0:100) and AWD (50:50) conditions circuit according to signals from sensors.
Self-diagnosis can be done with CONSULT-II.

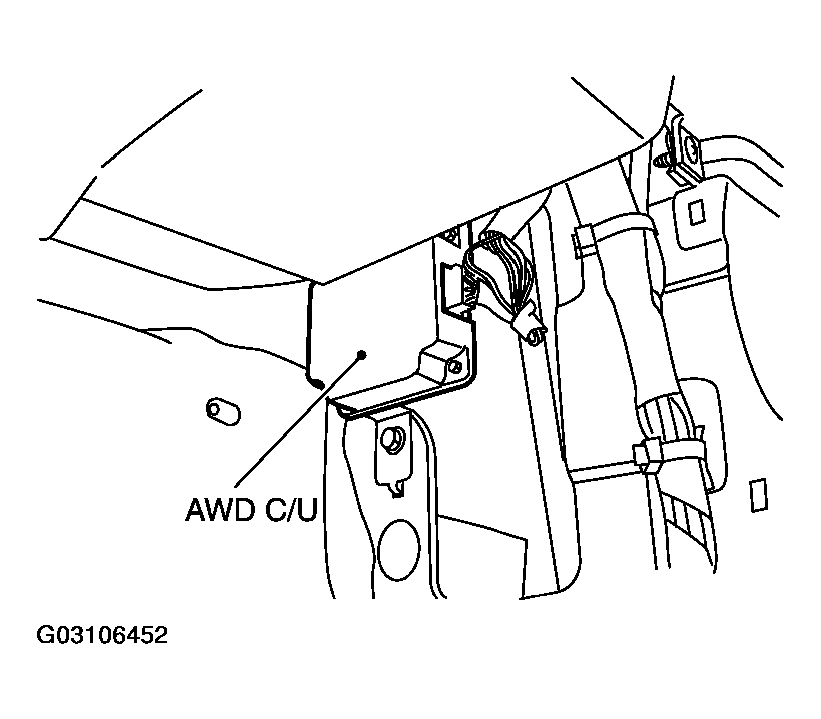

Fig 1: Locating AWD Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
