Transfer Assembly: Components

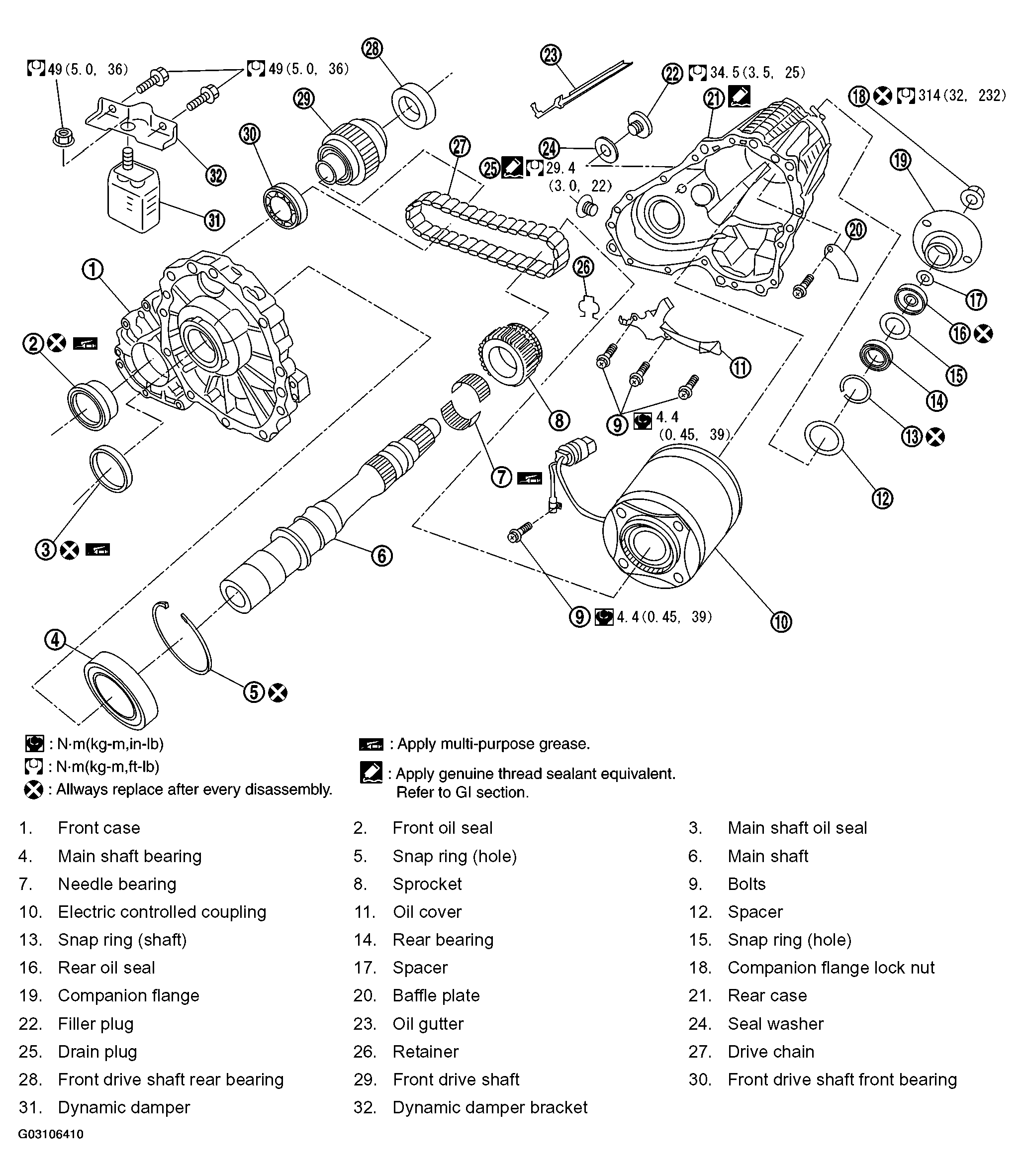

Fig 1: Exploded View Of Transfer Assembly Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
