Removal Front Case

  1. Remove front case fixing bolts.
    BOLTS LENGTH

    Bolts No. Quantity Nominal length mm (in)
    A 11 42 (1.65)
    B 1 162(6.38)
    C 1 97 (3.82)
    Torx Bolt 1 40 (1.57)

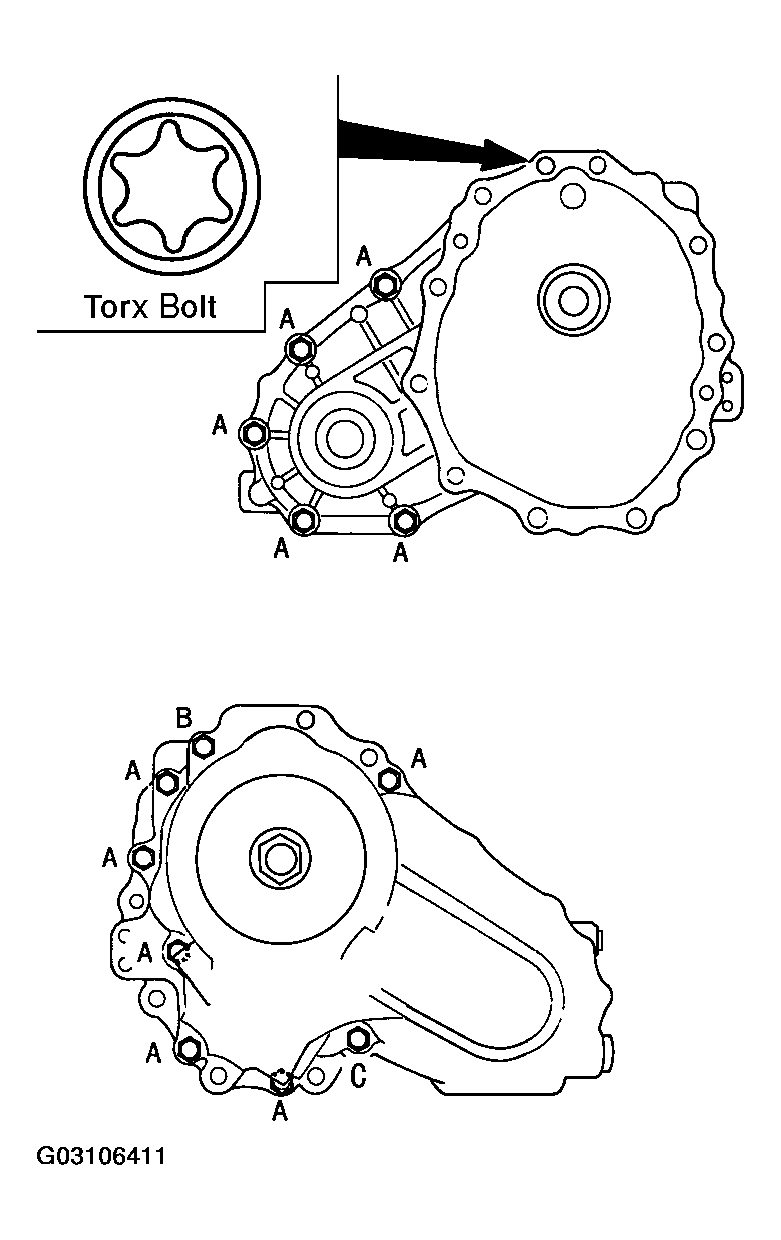

    Fig 1: Removing Front Case Fixing Bolts
    G03106411Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Insert tire lever as shown in the figure, separate front and rear case. Then, remove rear case by levering it up with a tire lever or the like.
    CAUTION: Be careful not to damage the mating surface.

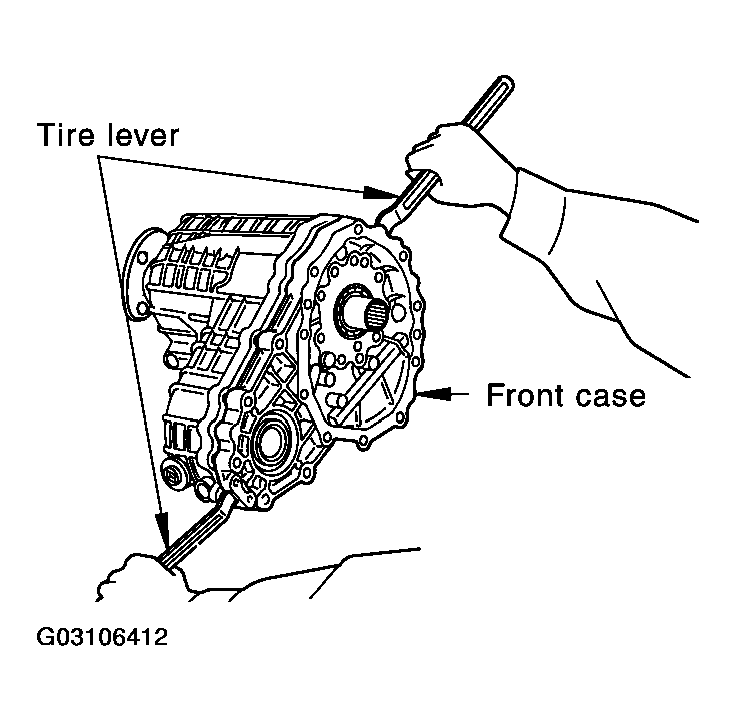

    Fig 2: Separating Front Case
    G03106412Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the front oil seal and main shaft oil seal from front case.

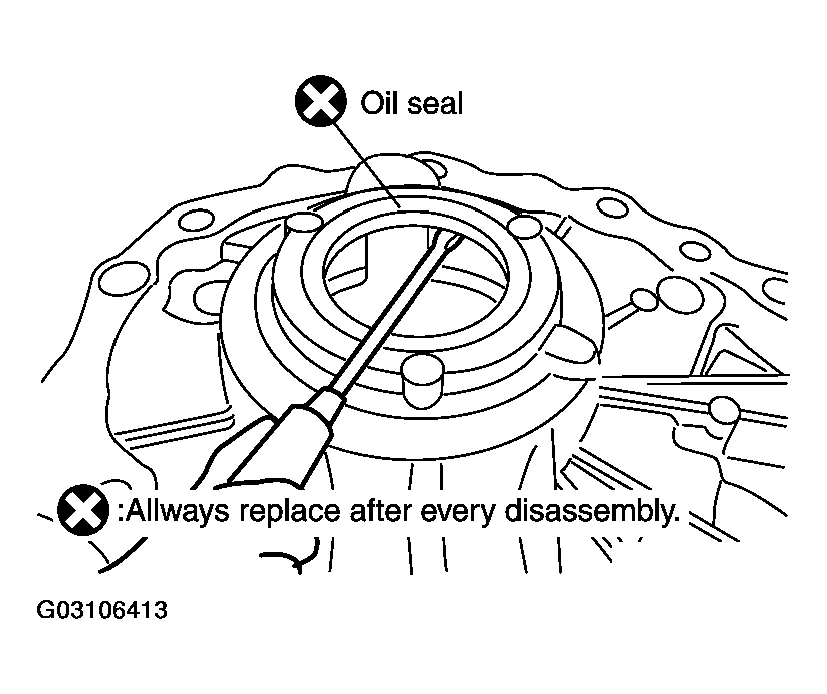

    Fig 3: Removing Front Oil Seal And Main Shaft Oil Seal
    G03106413Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove snap ring from front case.

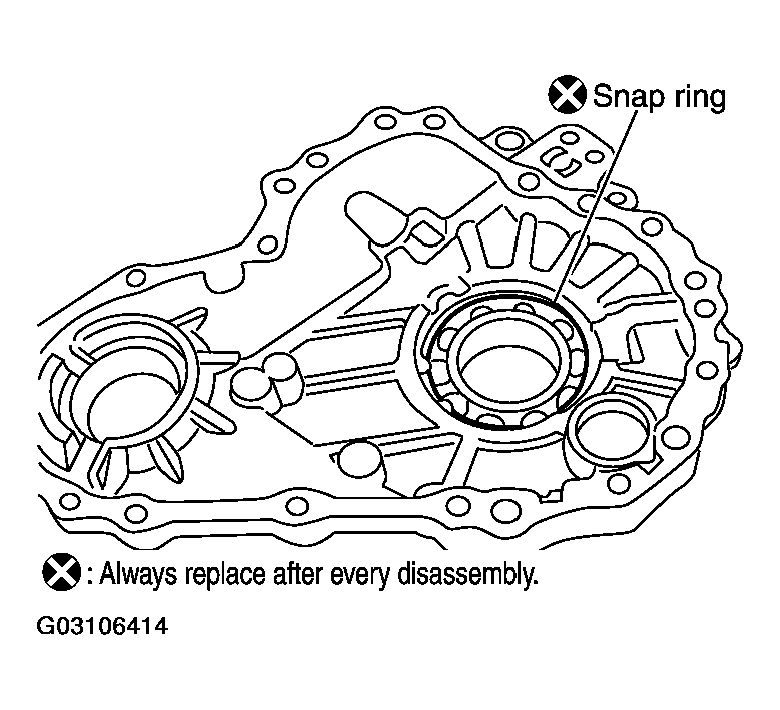

    Fig 4: Removing Snap Ring From Front Case
    G03106414Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove main shaft bearing from front case.

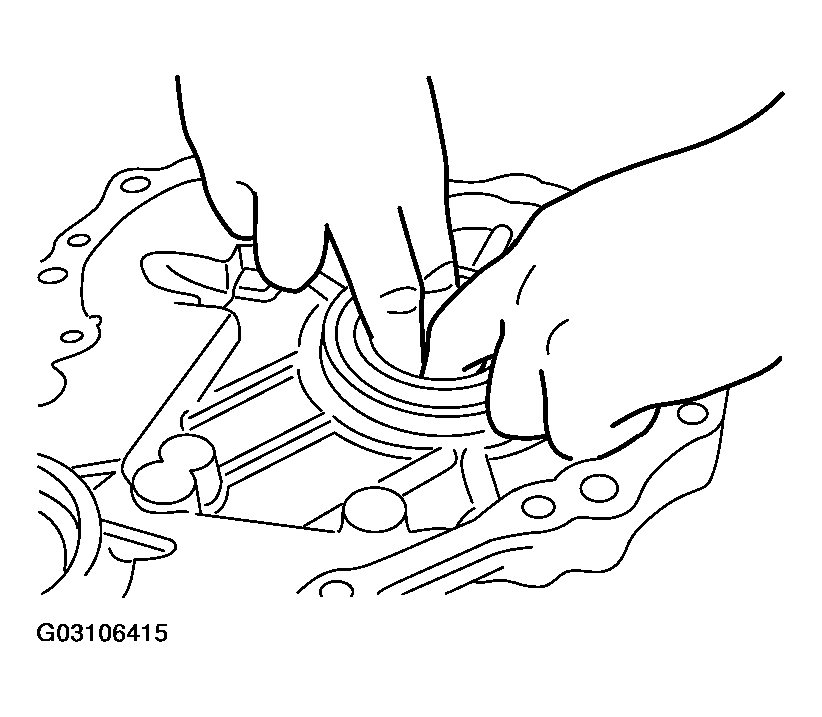

    Fig 5: Removing Main Shaft Bearing From Front Case
    G03106415Courtesy of NISSAN MOTOR CO., U.S.A.
