Operation Procedure

For details, refer to the separate "CONSULT-II OPERATION MANUAL".
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self- diagnosis depending on control unit which carry out CAN communication.

Turn the ignition switch to OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector on vehicle.
Turn ignition switch ON.
Touch "START" on the display.
Touch "ALL MODE 4WD" on the display.
CAUTION: "ALL MODE 4WD" may not be displayed on the system selection screen in the following case: When "START (NISSAN BASED VHCL)" was touched just after engine is started or ignition switch is turned to ON. In this case, repeat procedure from step 1.
If "ALL MODE 4WD" is not detected, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

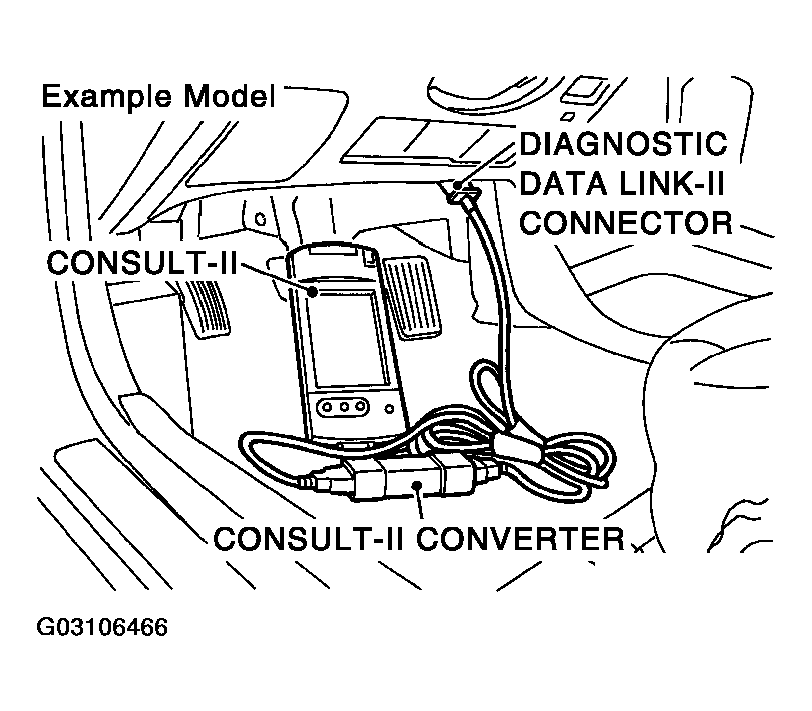

Fig 1: Identifying Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

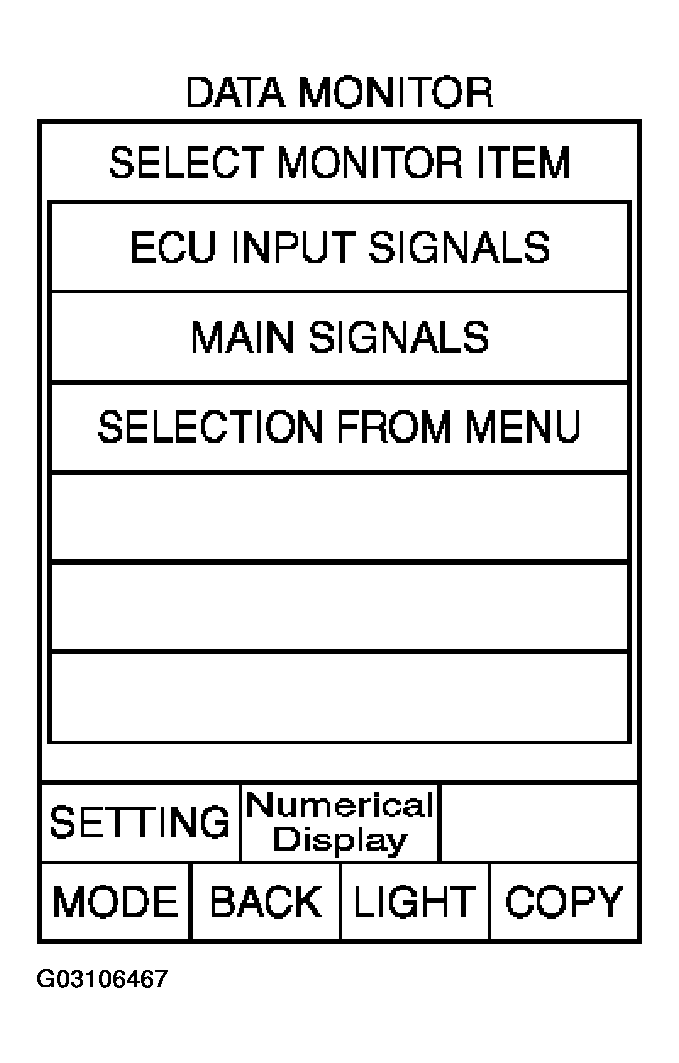

Touch "DATA MONITOR".
Return to monitor item selection screen. Touch any of "ECU INPUT SIGNALS," "MAIN SIGNALS," or "SELECTION FROM MENU".
Refer to "DISPLAY ITEM LIST ".
Touch "START".
Screen of data monitor is displayed.

Fig 2: Displaying Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
