Power Window: Schematic

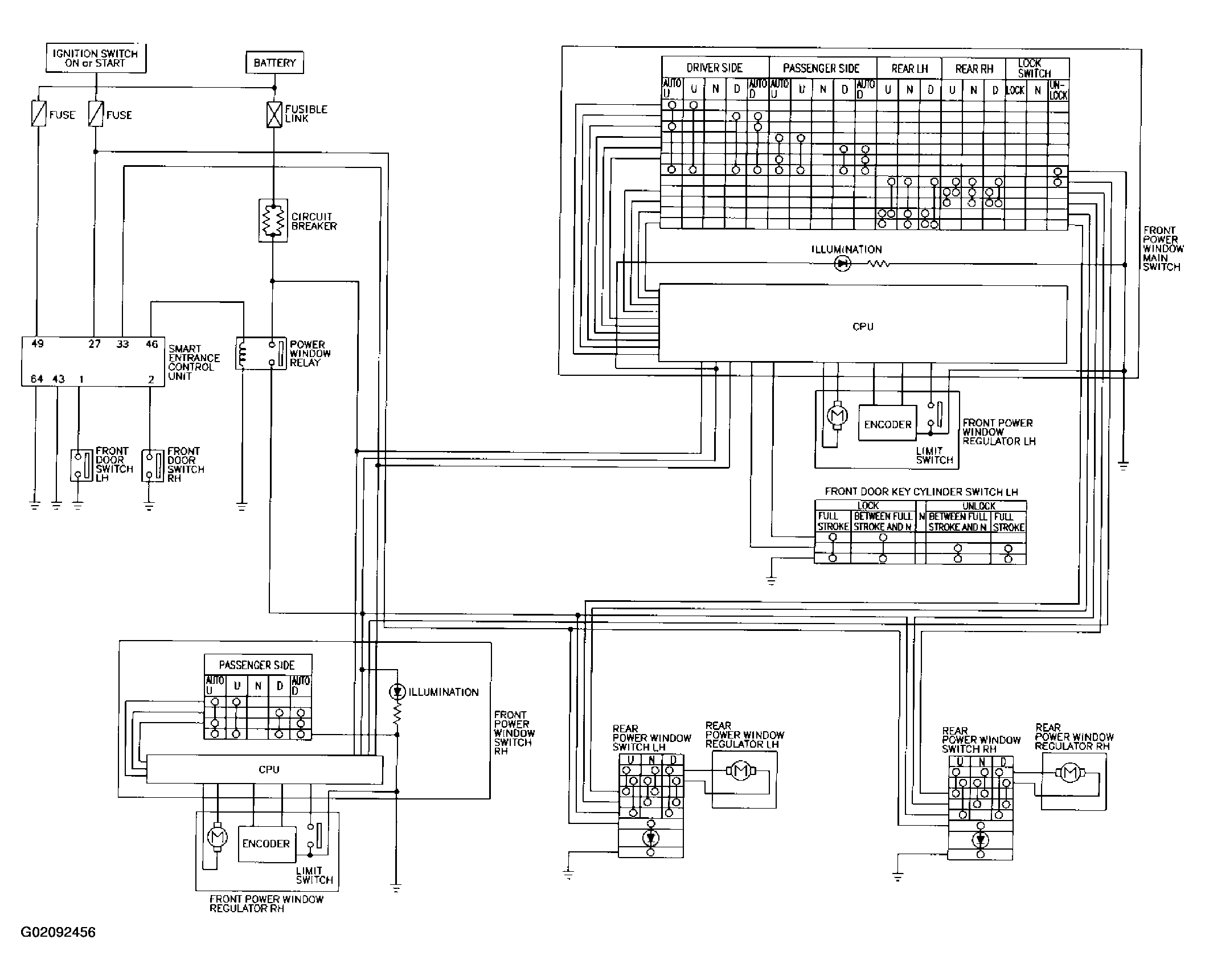

Fig 1: Power Window Schematic Diagram

G02092456

Courtesy of NISSAN MOTOR CO., U.S.A.
