Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Actuator & Electric Unit | At left rear of engine compartment, near brake master cylinder. |

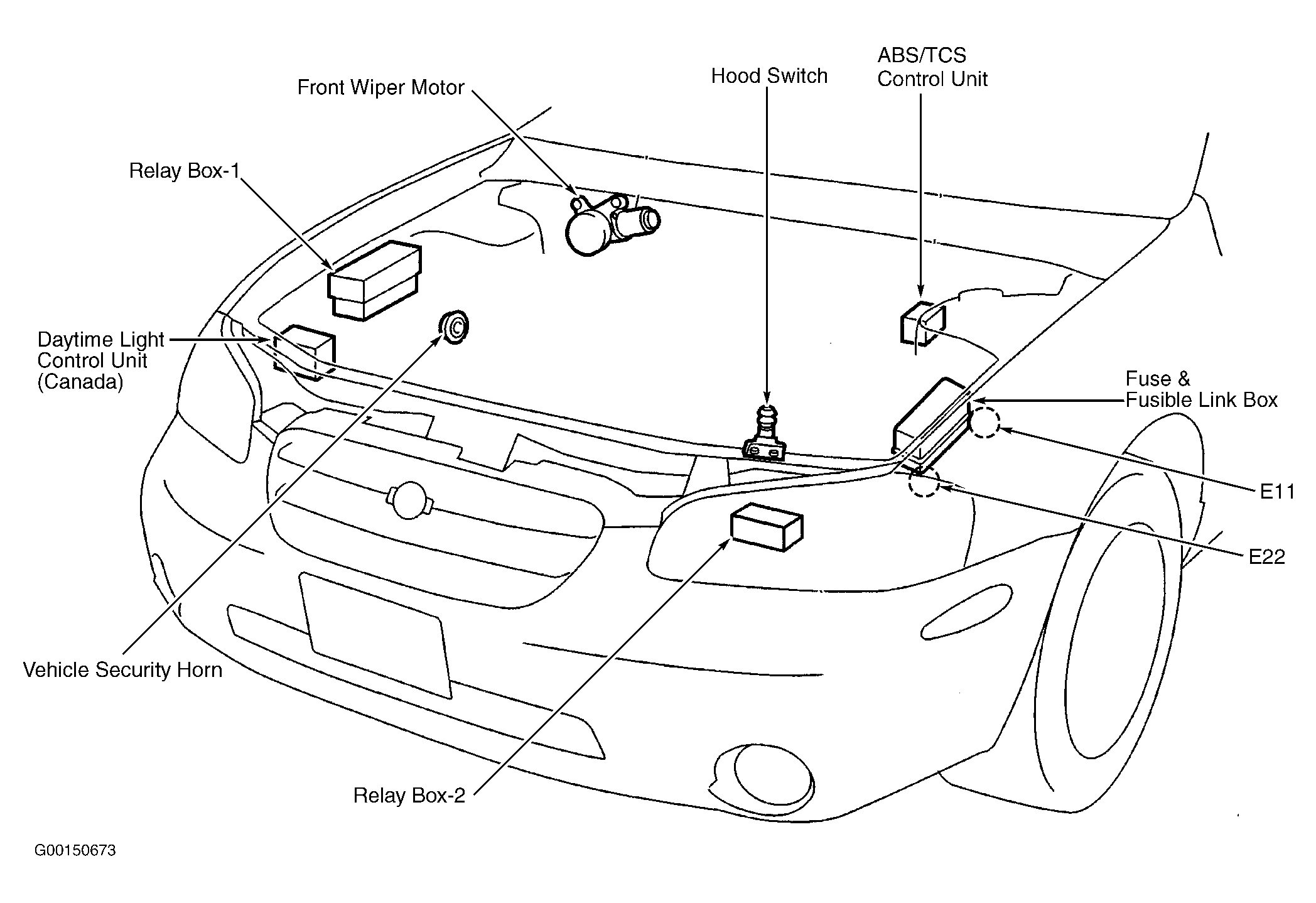

| ABS/TCS Control Unit | At left rear corner of engine compartment. See Figure . |

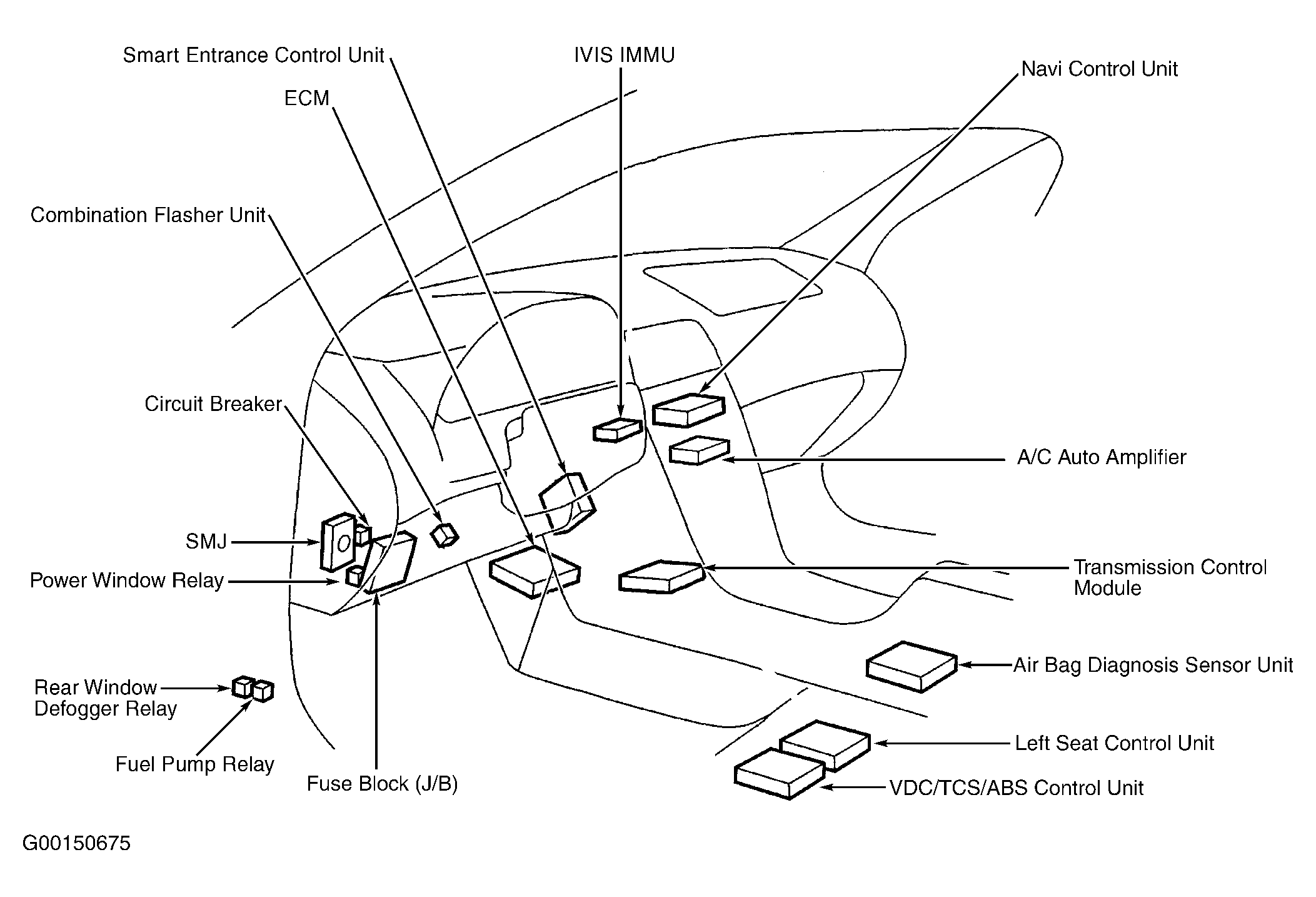

| A/C Auto Amplifier | Behind center of dash. See Figure . |
| Air Bag Diagnosis Sensor Unit | Under rear of center console. See Figure . |
| Daytime Light Control Unit (Canada) | At right front corner of engine compartment. See Figure . |
| ECM | Behind instrument lower cover. See Figure . |
| IVIS IMMU | On ignition key cylinder. See Figure . |
| Left Seat Control Unit | Under driver seat. See Figure . |
| Navi Control Unit | Behind center of dash. See Figure . |
| Smart Entrance Control Unit | Behind center of dash. See Figure . |
| Transmission Control Module | Behind lower center of dash. See Figure . |
| VDC/TCS/ABS Control Unit | Under driver seat. See Figure . |
