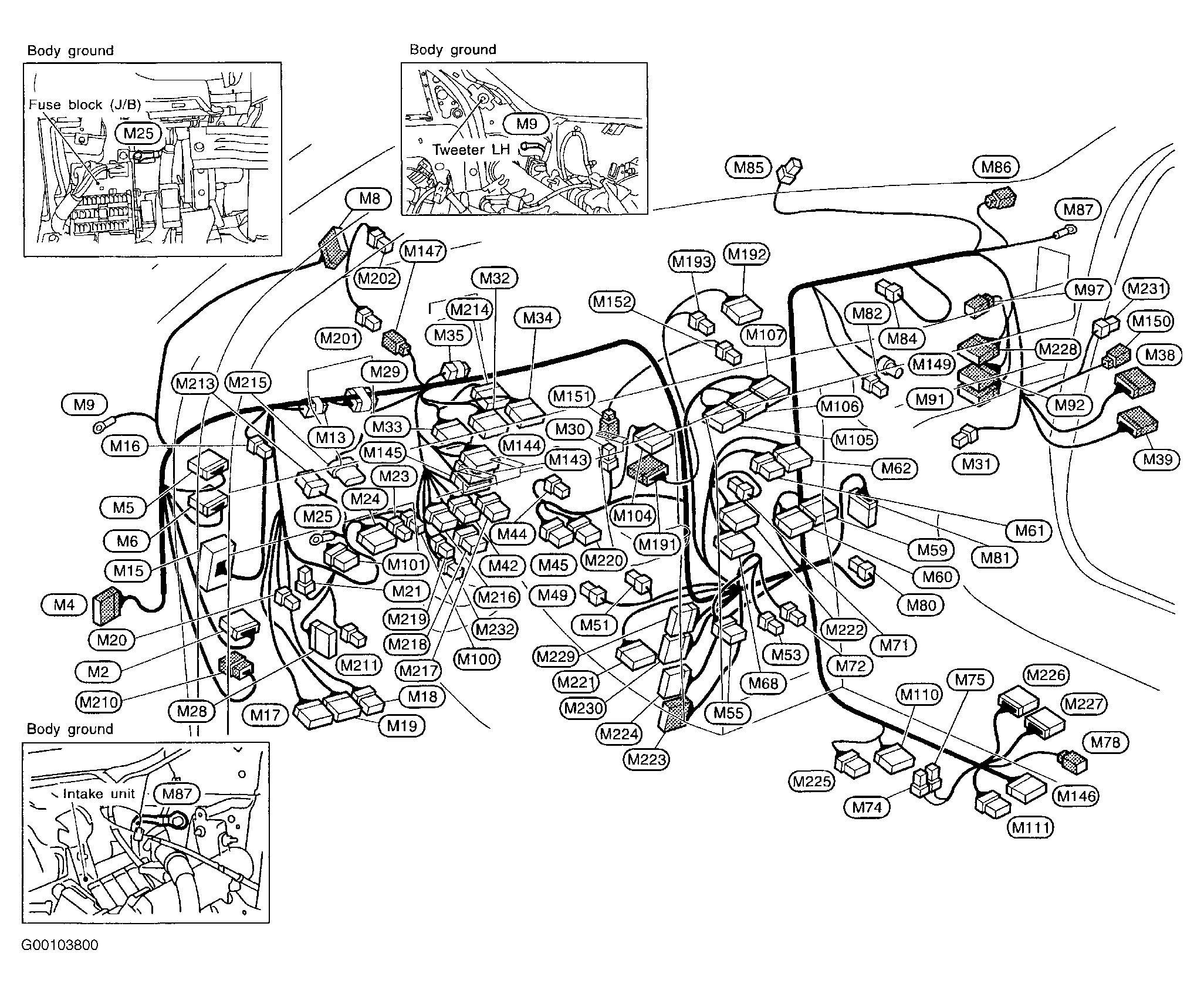

| Main Harness |
| M2 |
Brown |
24 |
To B2 |
| M4 |
..... |
33 |
To D1 |
| M5 |
White |
16 |
To B1 |
| M6 |
White |
18 |
To B3 |
| M8 |
White |
12 |
To R2 |
| M9 |
..... |
..... |
Body Ground |
| M13 |
Blue |
4 |
Diode (With TCS For Canada & VDC) |
| M15 |
..... |
69 |
To E81 |
| M16 |
White |
4 |
Telephone |
| M17 |
White |
12 |
Fuse Block |
| M18 |
White |
6 |
Fuse Block |
| M19 |
White |
16 |
Fuse Block |
| M20 |
Blue |
4 |
Power Window Relay |
| M21 |
Black |
3 |
Combination Flasher Unit |
| M23 |
White |
3 |
Illumination Control Switch |
| M24 |
White |
10 |
Door Mirror Remote Control Switch |
| M25 |
..... |
..... |
Body Ground |
| M28 |
White |
16 |
Data Link Connector |
| M29 |
Gray |
3 |
Joint Connector No. 3 (Diode) |
| M30 |
White |
4 |
To M151 |
| M31 |
White |
4 |
Fan Control Amp. |
| M32 |
Brown |
20 |
Combination Meter |
| M33 |
White |
24 |
Combination Meter (With TCS) |
| M34 |
Brown |
24 |
Combination Meter |
| M35 |
Black |
2 |
Diode |
| M38 |
White |
16 |
To D62 |
| M39 |
White |
10 |
To D63 |
| M42 |
White |
8 |
NVIS IMMU |
| M44 |
White |
2 |
In-Vehicle Sensor |
| M45 |
Blue |
6 |
TCS On/Off Switch (With TCS) |
| M49 |
White |
3 |
Mode Door Motor |
| M51 |
White |
3 |
Air Mix Door Motor |
| M53 |
Black |
2 |
Cigarette Lighter |
| M55 |
White |
8 |
Hazard Switch |
| M59 |
Gray |
20 |
A/C Auto Amp. |
| M60 |
Gray |
16 |
A/C Auto Amp. |
| M61 |
White |
6 |
Audio Unit |
| M62 |
White |
10 |
Audio Unit |
| M68 |
White |
16 |
Audio Unit |
| M71 |
White |
2 |
Antenna Amp. |
| M72 |
White |
2 |
Ashtray Illumination |
| M74 |
Blue |
4 |
Left Front Heated Seat Switch |
| M75 |
White |
4 |
Right Front Heated Seat Switch |
| M78 |
Black |
2 |
Power Socket |
| M80 |
White |
3 |
Intake Sensor |
| M81 |
White |
20 |
To F49 |
| M82 |
White |
2 |
Glove Box Lamp |
| M84 |
White |
3 |
Intake Door Motor |
| M85 |
Black |
2 |
Sunload Sensor |
| M86 |
Brown |
2 |
Tweeter (Right) |
| M87 |
..... |
..... |
Body Ground |
| M91 |
White |
12 |
To B103 |
| M92 |
White |
10 |
To B104 |
| M100 |
White |
4 |
Security Indicator |
| M101 |
Gray |
6 |
Memory Seat Cancel Switch |
| M104 |
Brown |
24 |
To M191 (With Navigation System) |
| M105 |
White |
16 |
Navi Control Unit (With Navigation System) |
| M106 |
White |
20 |
Navi Control Unit (With Navigation System) |
| M107 |
Gray |
12 |
Navi Control Unit (With Navigation System) |
| M110 |
White |
16 |
To B43 |
| M111 |
Blue |
6 |
Rear Sunshade Switch (With Rear Sunshade) |
| M143 |
White |
24 |
Smart Entrance Control Unit |
| M144 |
Gray |
24 |
Smart Entrance Control Unit |
| M145 |
Gray |
16 |
Smart Entrance Control Unit |
| M146 |
Yellow |
28 |
Air Bag Diagnosis Sensor Unit |
| M147 |
White |
3 |
To M201 |
| M149 |
Yellow |
4 |
Passenger Air Bag Module |
| M150 |
Yellow |
4 |
To E147 |
| M210 |
White |
8 |
To E152 (With VDC) |
| M211 |
White |
2 |
Not Used |
| M213 |
White |
8 |
Heated Steering Switch (With Heated Steering) |
| M214 |
White |
24 |
Combination Meter (With VDC) |
| M215 |
Gray |
6 |
Accelerator Pedal Position Sensor |
| M216 |
Gray |
8 |
Combination Switch (Steering Switch & Horn Switch) |
| M217 |
Yellow |
6 |
Combination Switch (Air Bag) |
| M218 |
White |
8 |
Steering Angle Sensor (With VDC) |
| M219 |
White |
2 |
Combination Switch (Heated Steering Switch) (With Heated Steering) |
| M220 |
Blue |
6 |
VDC Off Switch (With VDC) |
| M221 |
White |
16 |
Not Used |
| M222 |
White |
12 |
Audio Unit (With CD Auto Changer) |
| M223 |
White |
18 |
To F53 |
| M224 |
Gray |
10 |
Shift Lock Control Unit |
| M225 |
White |
12 |
A/T Device |
| M226 |
White |
16 |
To B59 (With VDC) |
| M227 |
White |
20 |
To B58 (With VDC) |
| M228 |
Brown |
24 |
To B144 |
| M229 |
White |
18 |
To F66 |
| M230 |
White |
20 |
To F67 |
| M231 |
Blue |
4 |
Heated Steering Relay (With Heated Steering) |
| M232 |
White |
2 |
Ignition Key Hole Illumination |
| Main Sub-Harness No. 1 |
| M151 |
White |
4 |
To M30 |
| M152 |
White |
4 |
Clock |
| Main Sub-Harness No. 2 |
| M191 |
Brown |
24 |
To M104 |
| M192 |
White |
20 |
Front Monitor |
| M193 |
White |
4 |
Front Monitor |
| Main Sub-Harness No. 3 |
| M201 |
White |
3 |
To M147 |
| M202 |
White |
3 |
Auto Light Sensor |
