Input/Output Signal Chart

WARNING: This page is about a different car, the 2004 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

T: Transmit R: Receive

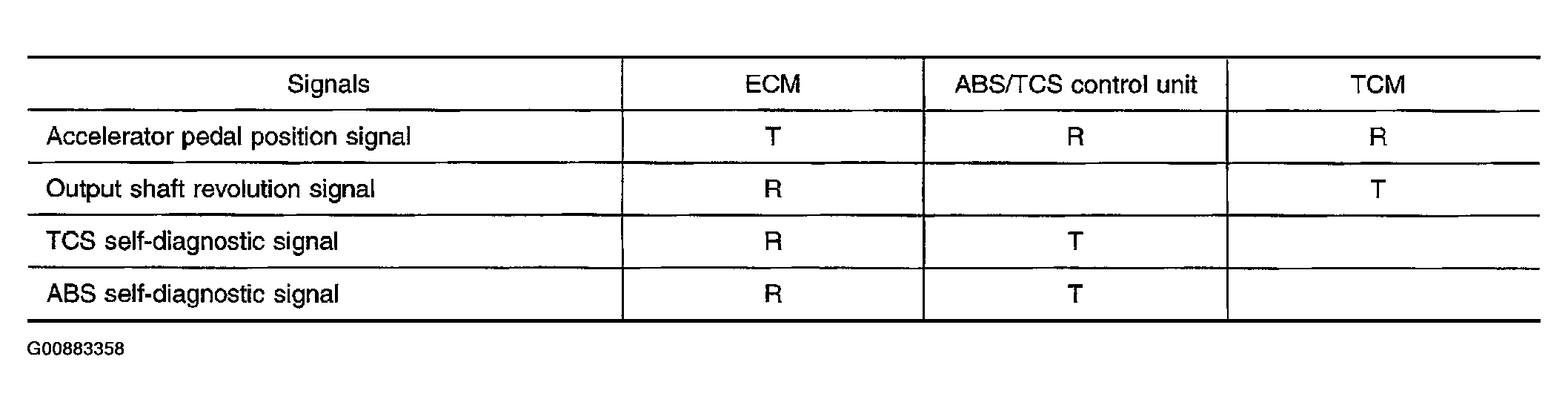

Fig 1: Input/Output Signal Chart (Can Communication TCS Models)
G00883358Courtesy of NISSAN MOTOR CO., U.S.A.
