For Key:
Check continuity between terminals of the control device connector.

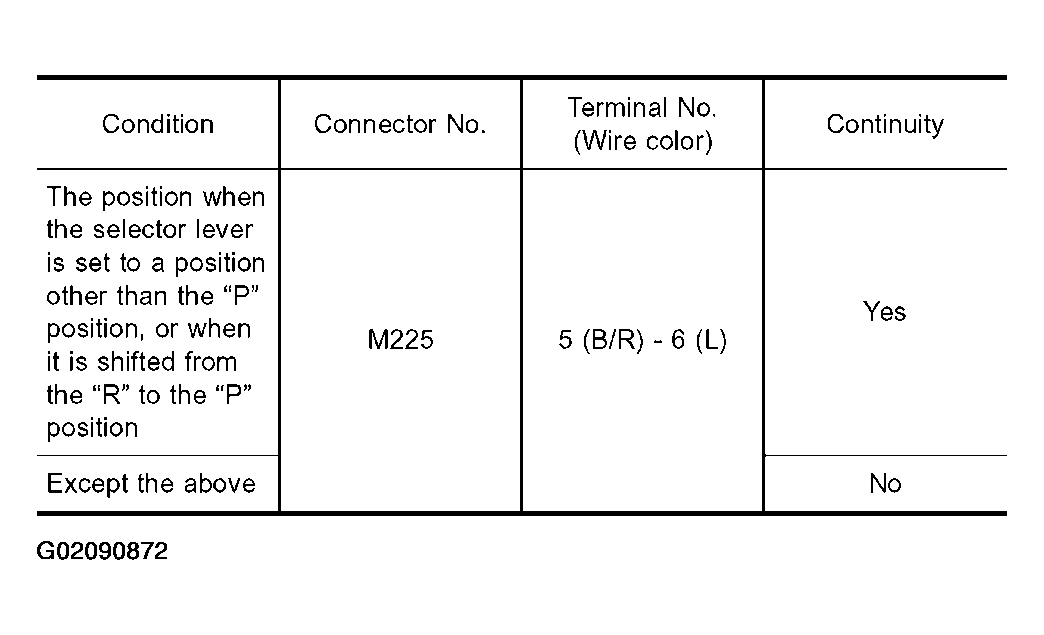

Fig 1: Terminal Continuity Table Of Detention Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

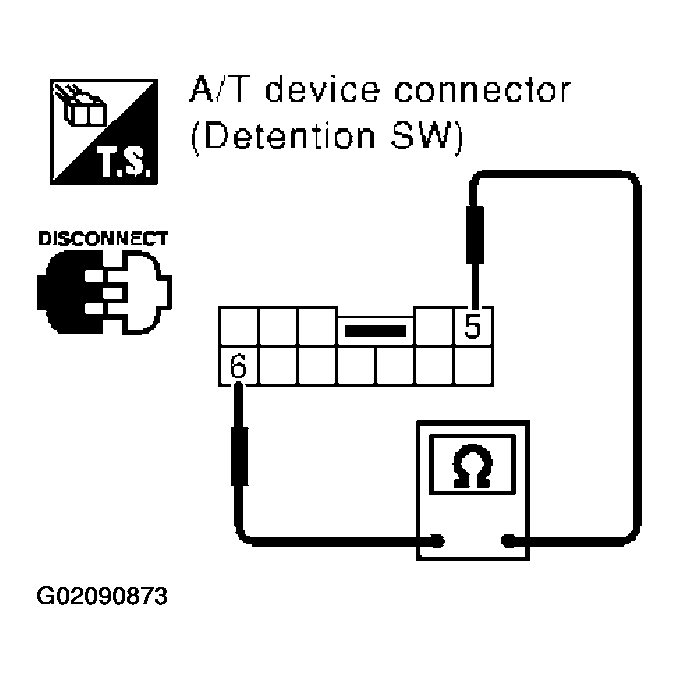

Fig 2: Checking Detention Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
