Conditions for Lock-up Operation

When vehicle is driven in 3rd or 4th gear positions, vehicle speed and throttle opening are detected. If the detected values fall within the lock-up zone memorized in the TCM, lock-up is performed.

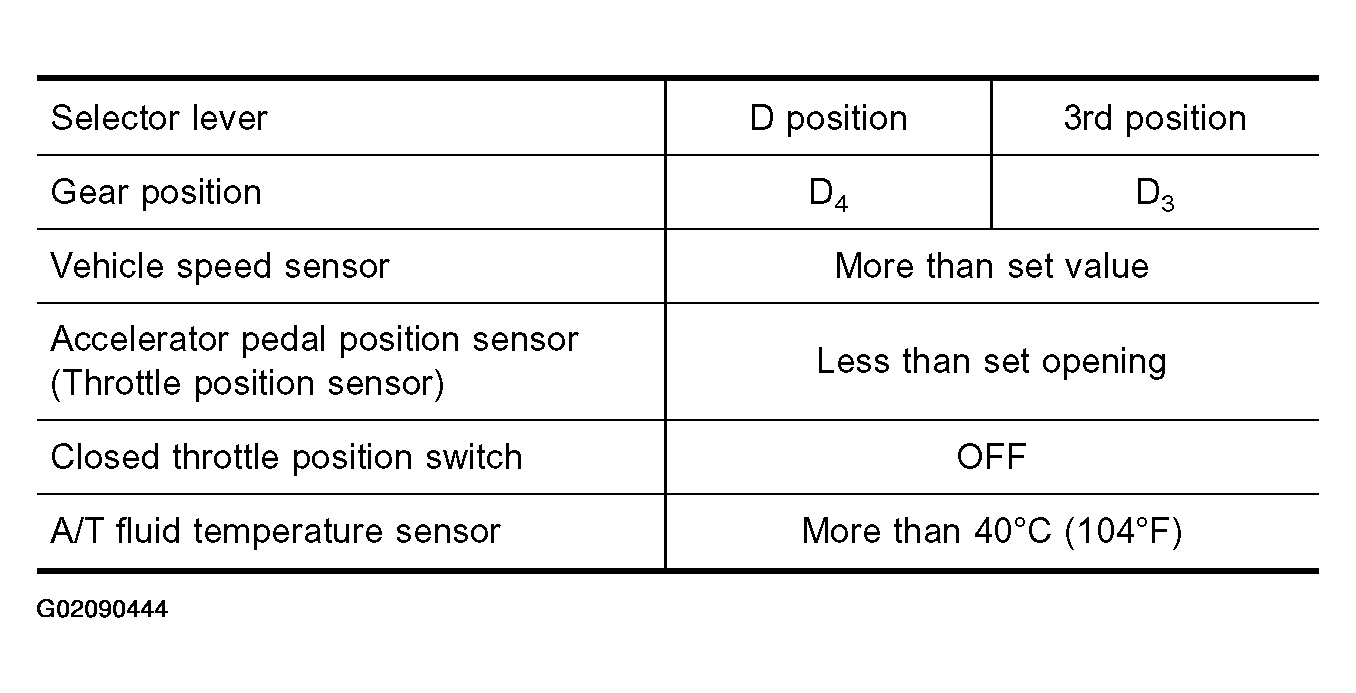

Fig 1: Identifying Lock-Up Control Table

Courtesy of NISSAN MOTOR CO., U.S.A.
