Torque Converter Clutch Control Valve Operation: Notes

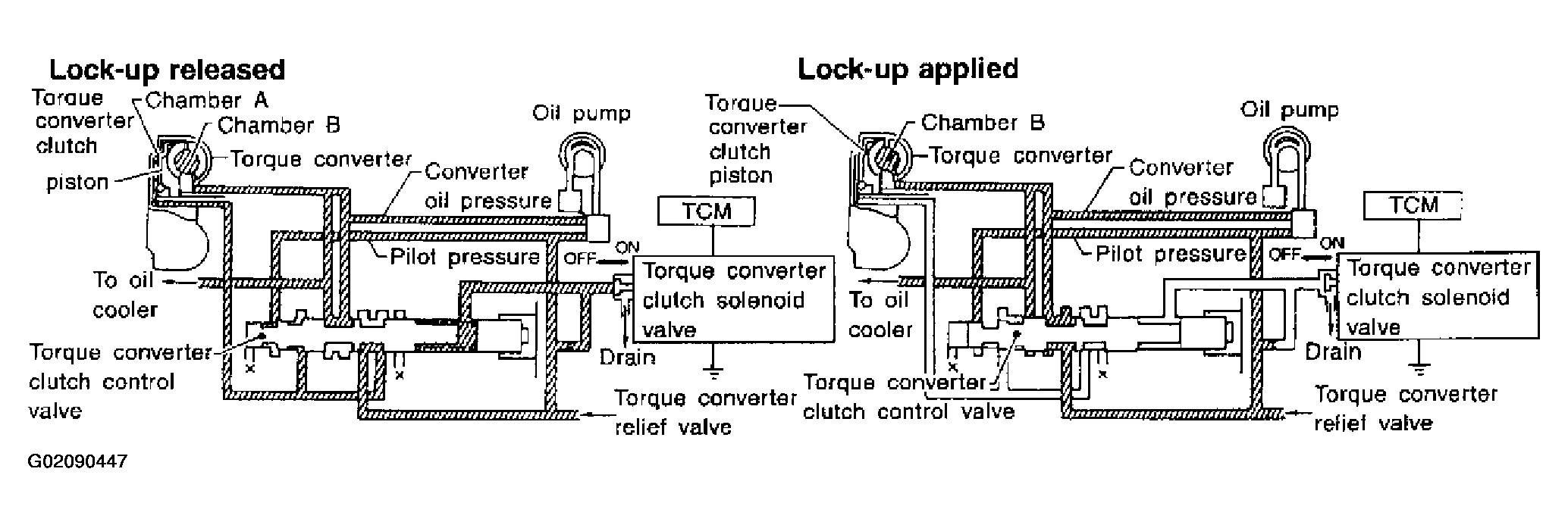

Fig 1: Identifying Torque Converter Clutch Control Valve Operation
G02090447Courtesy of NISSAN MOTOR CO., U.S.A.
