Final Drive: Components

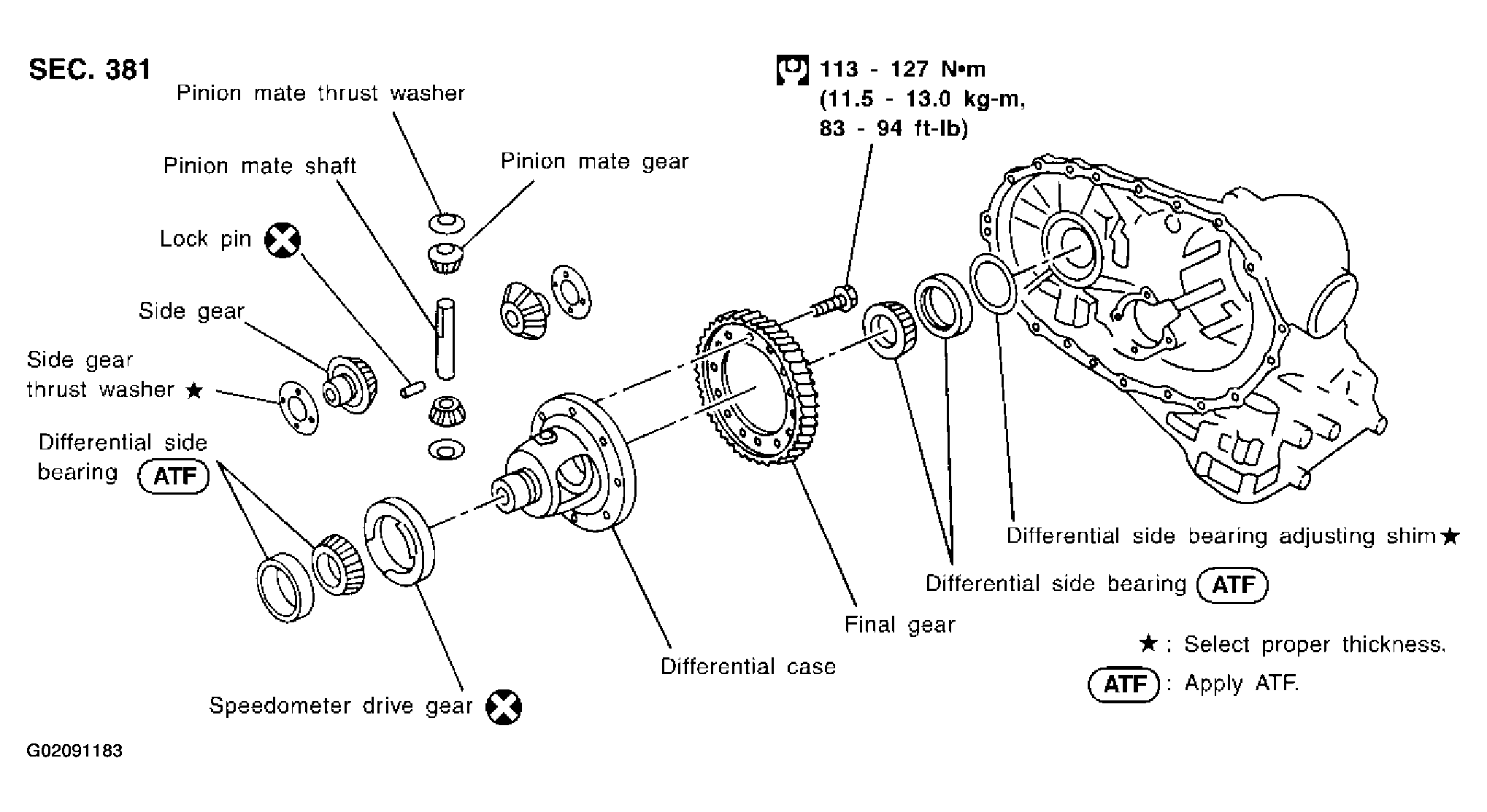

Fig 1: Identifying Final Drive Component

G02091183

Courtesy of NISSAN MOTOR CO., U.S.A.
