TCM Terminals And Reference Value: Notes

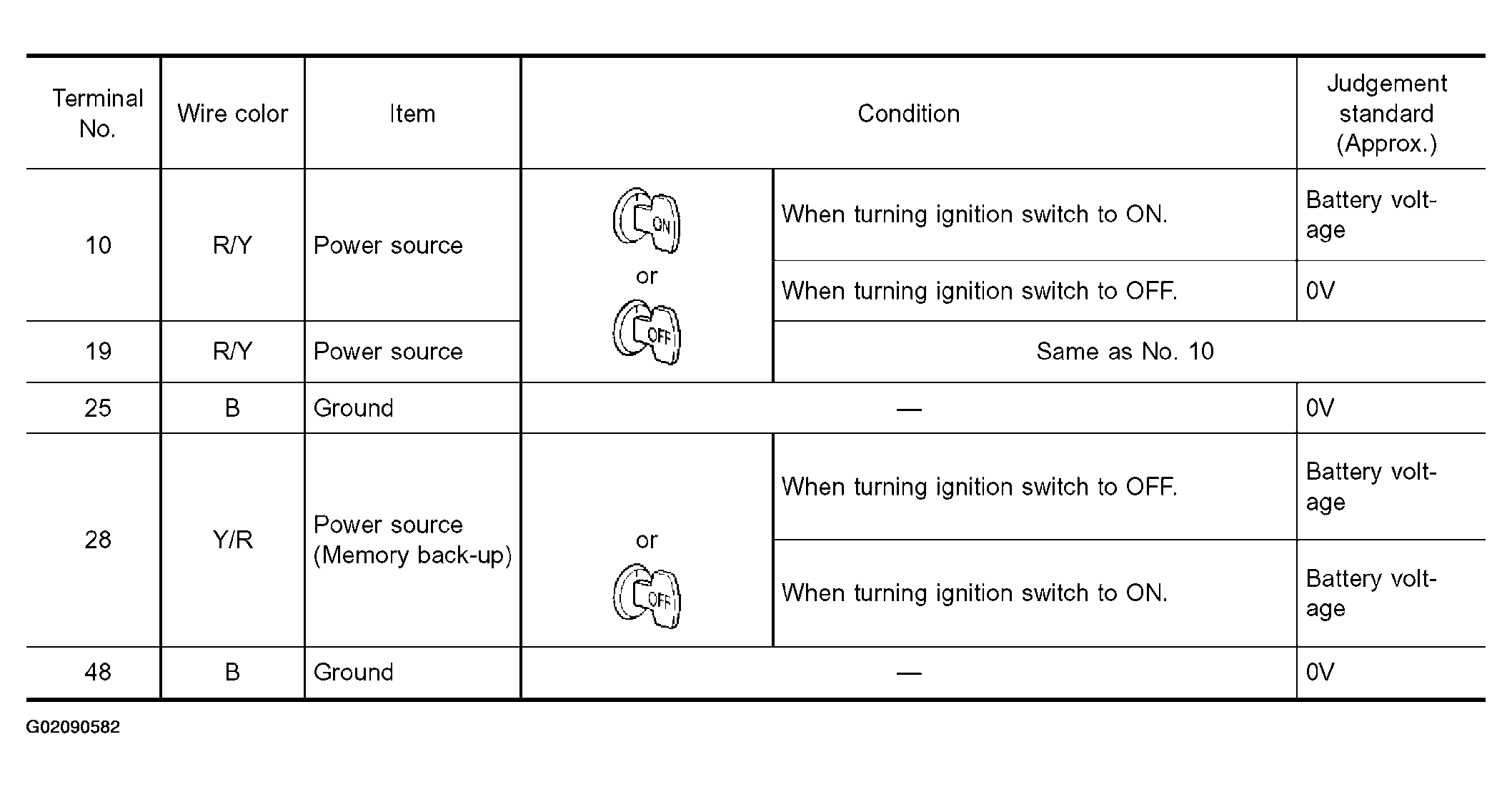

Fig 1: Identifying TCM Terminals & Reference Value Chart
G02090582Courtesy of NISSAN MOTOR CO., U.S.A.
