Operation Procedure

Connect CONSULT-II and CONSULT-II CONVERTER to data link connector and start the engine.
Touch "START" on the display.
Touch "VDC" and "ACTIVE TEST".

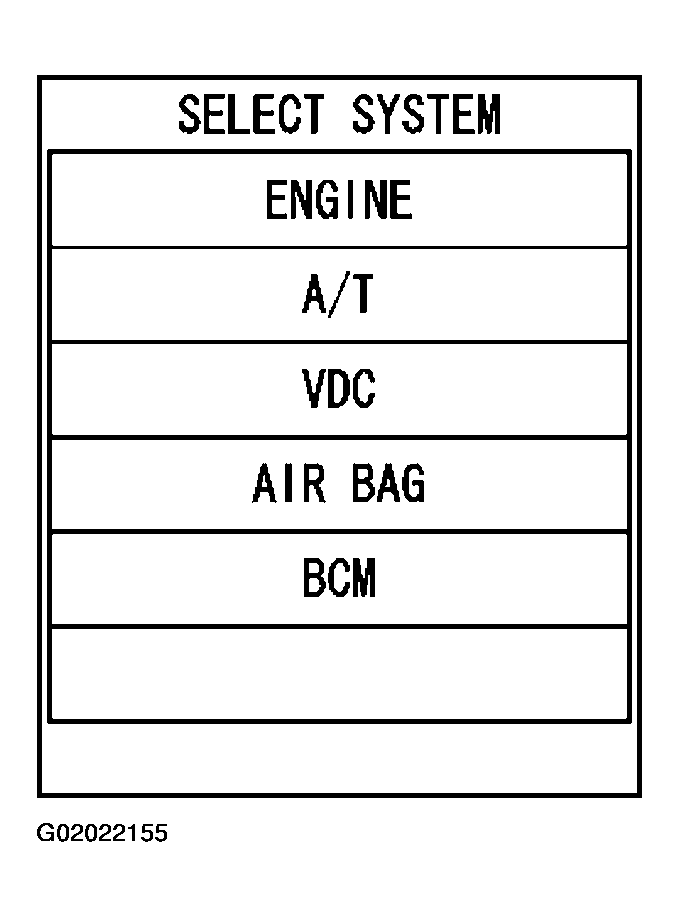

Fig 1: CONSULT-II Active Test Operation Procedure (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

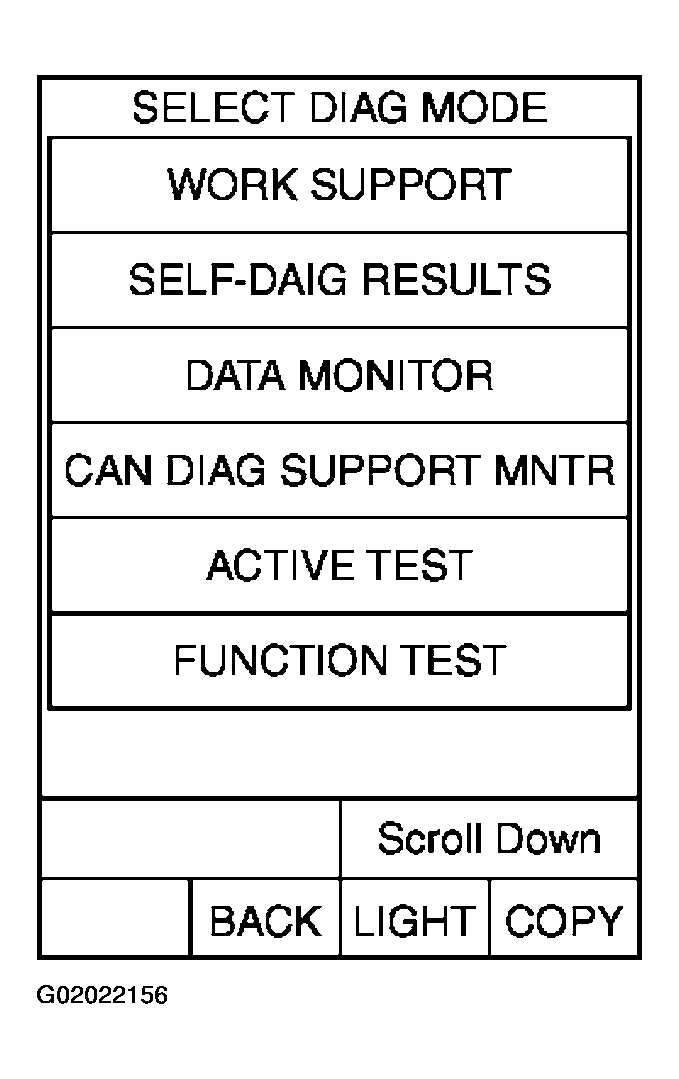

Fig 2: CONSULT-II Active Test Operation Procedure (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Test item selection screen is displayed.
Touch necessary test item.

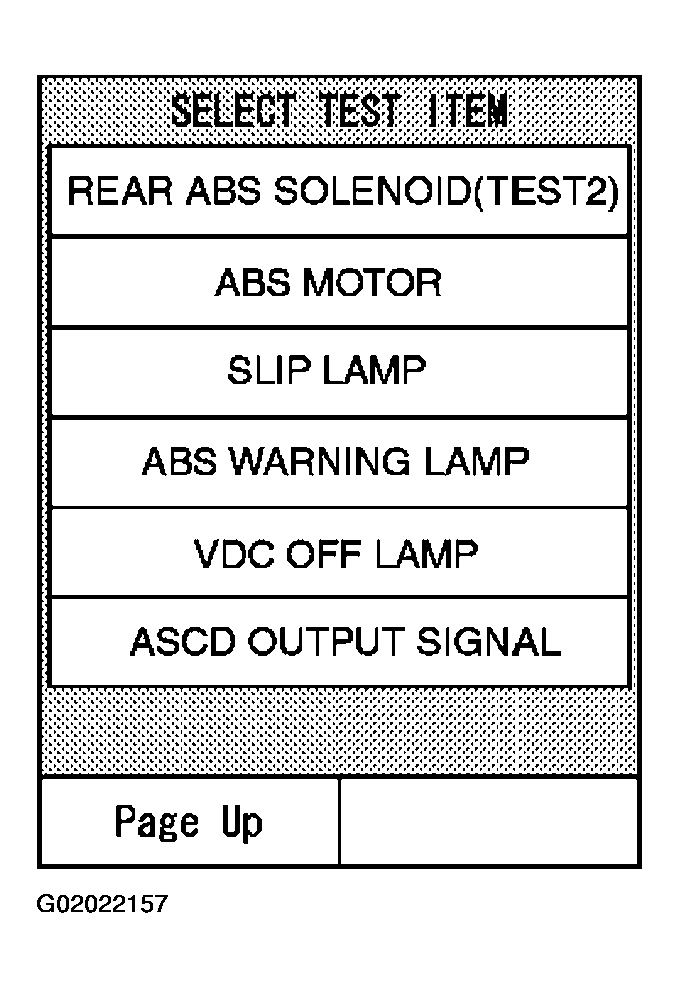

Fig 3: CONSULT-II Active Test Operation Procedure (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START" with "MAIN SIGNALS" line inverted.

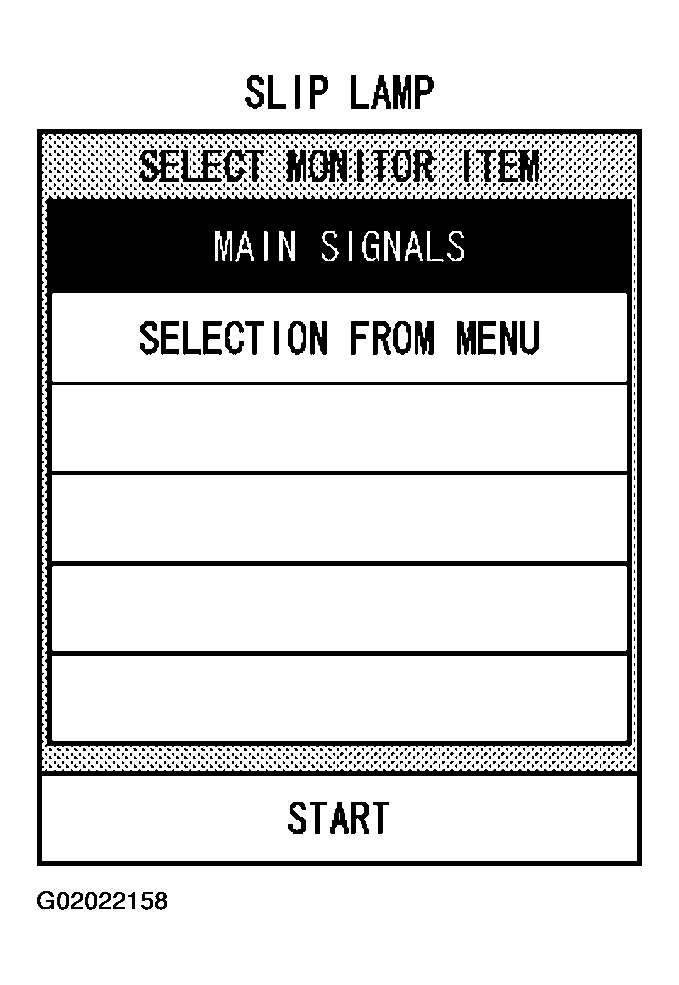

Fig 4: CONSULT-II Active Test Operation Procedure (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Active test screen is displayed.

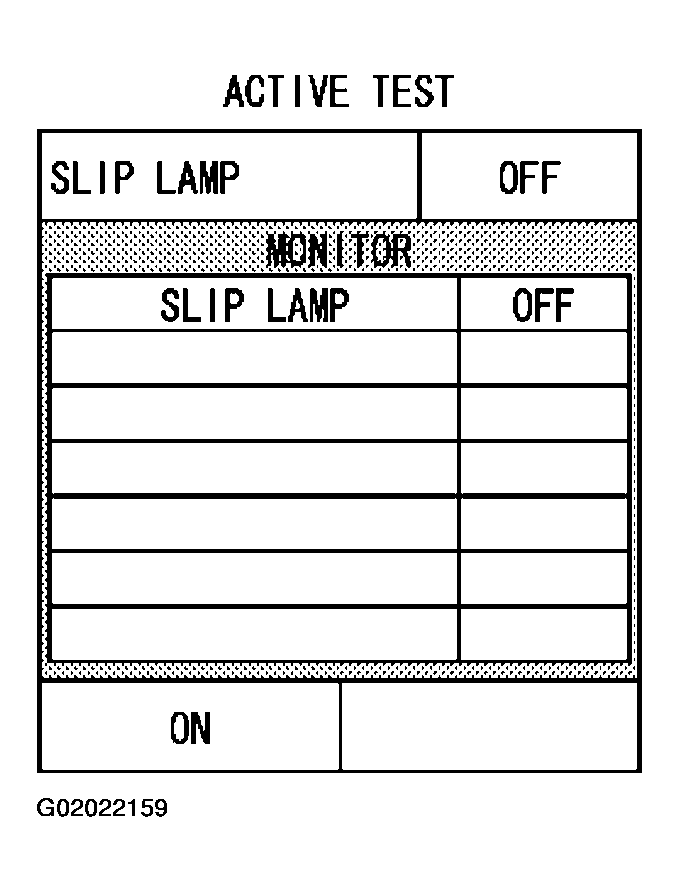

Fig 5: CONSULT-II Active Test Operation Procedure (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
