Component Locations

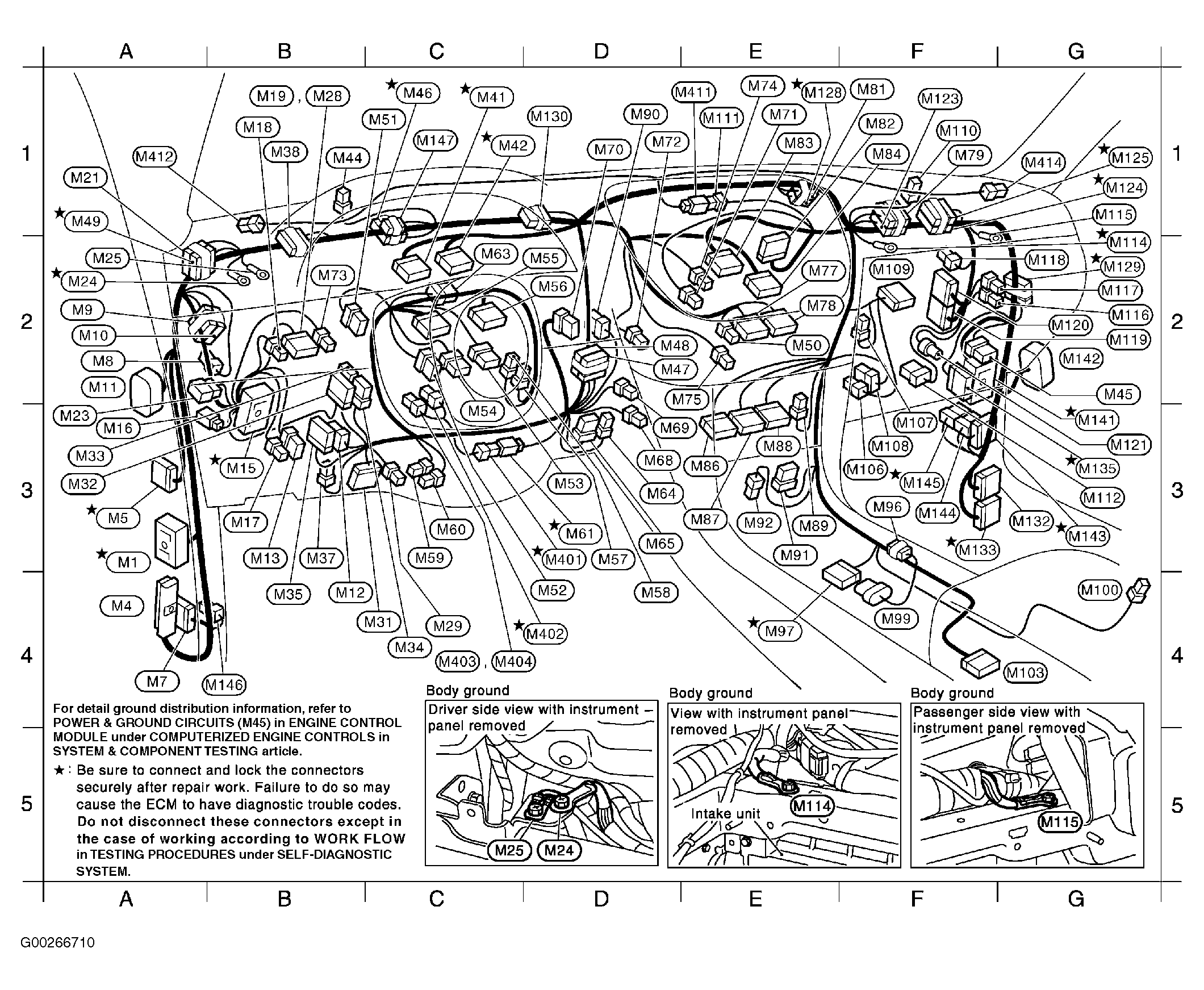

Fig 1: Locating Main Harness Connectors (1 Of 3)
G00266710Courtesy of NISSAN MOTOR CO., U.S.A.

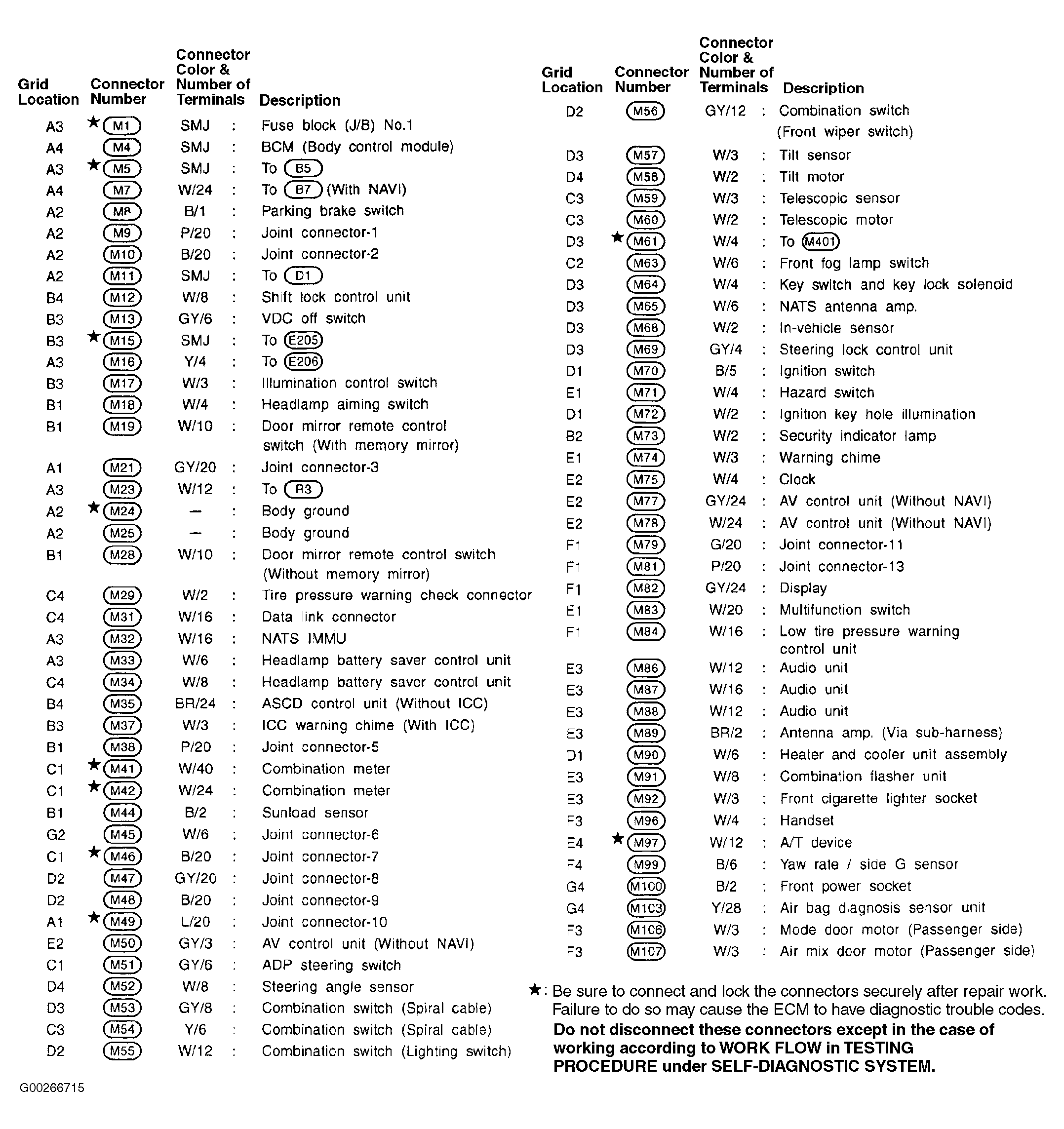

Fig 2: Locating Main Harness Connectors (2 Of 3)
G00266715Courtesy of NISSAN MOTOR CO., U.S.A.

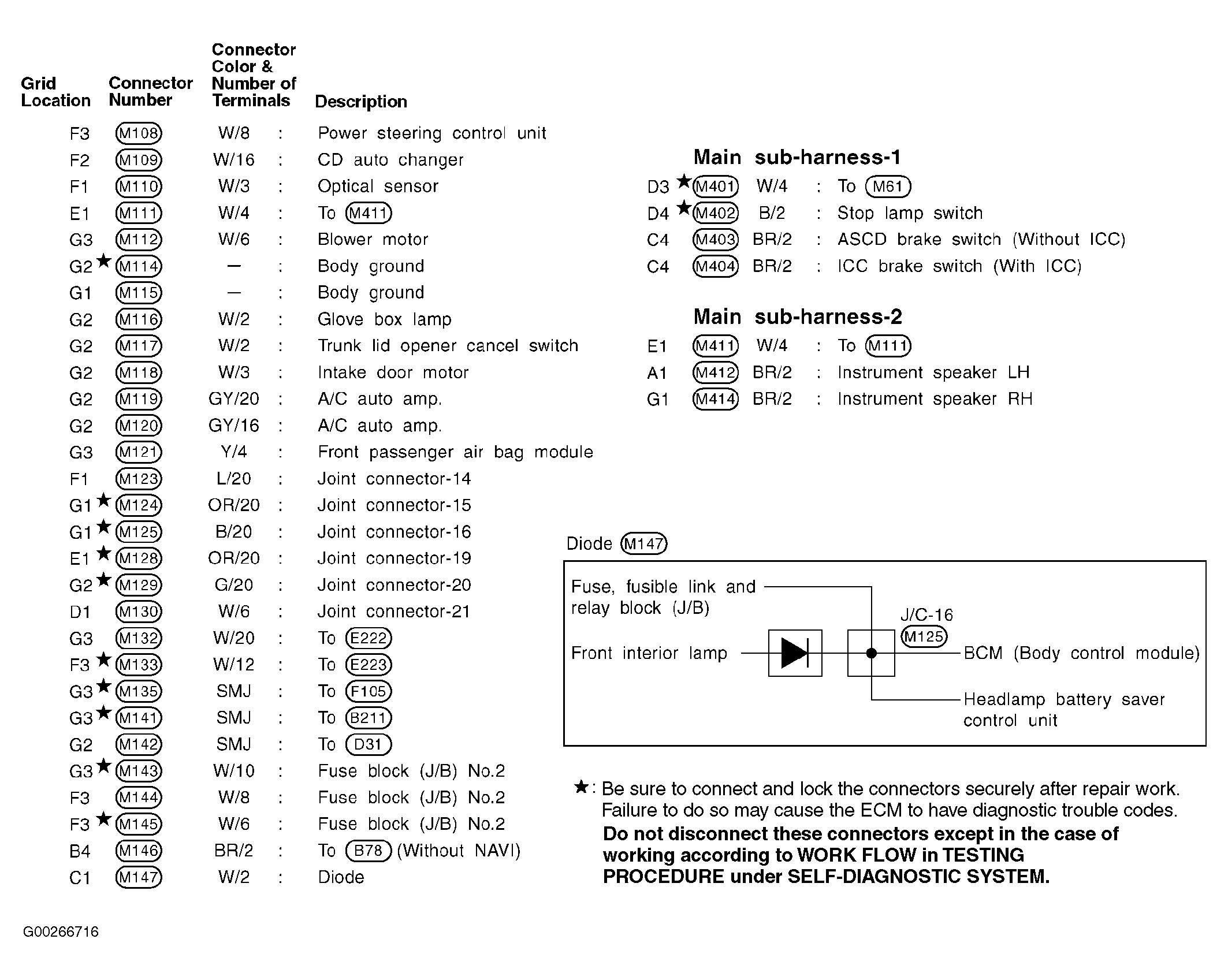

Fig 3: Locating Main Harness Connectors (3 Of 3)
G00266716Courtesy of NISSAN MOTOR CO., U.S.A.

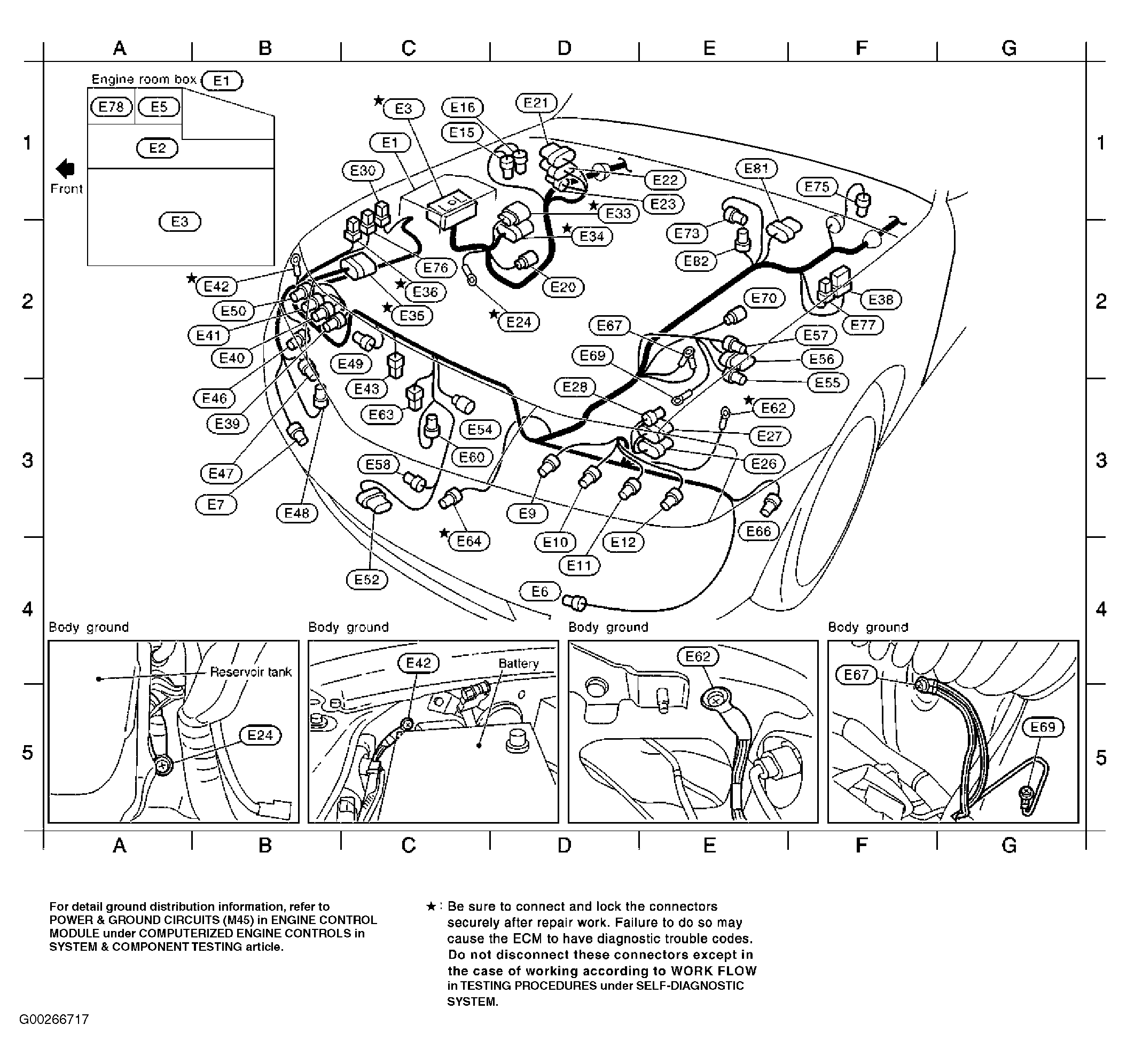

Fig 4: Locating Engine Compartment Harness Connectors (1 Of 2)
G00266717Courtesy of NISSAN MOTOR CO., U.S.A.

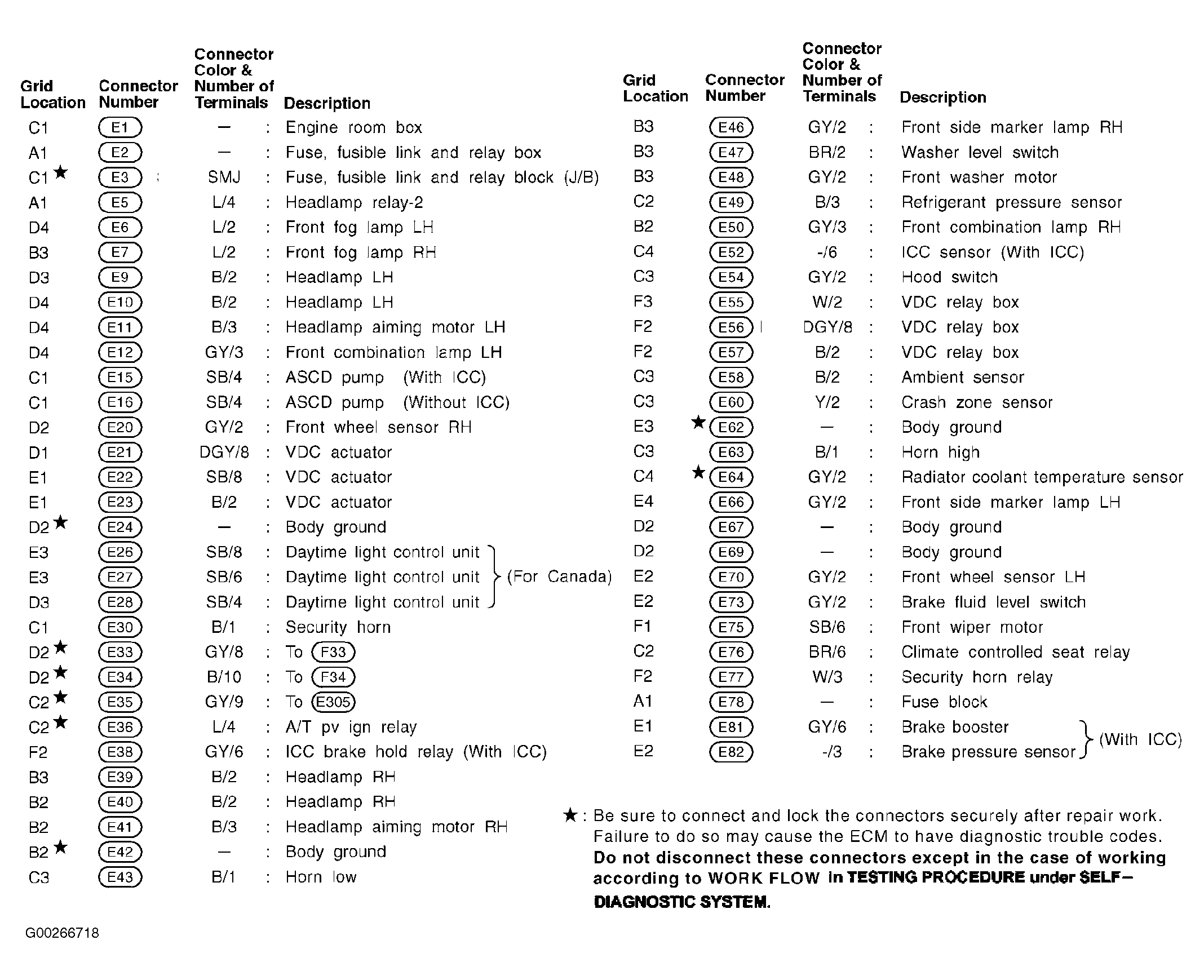

Fig 5: Locating Engine Compartment Harness Connectors (2 Of 2)
G00266718Courtesy of NISSAN MOTOR CO., U.S.A.

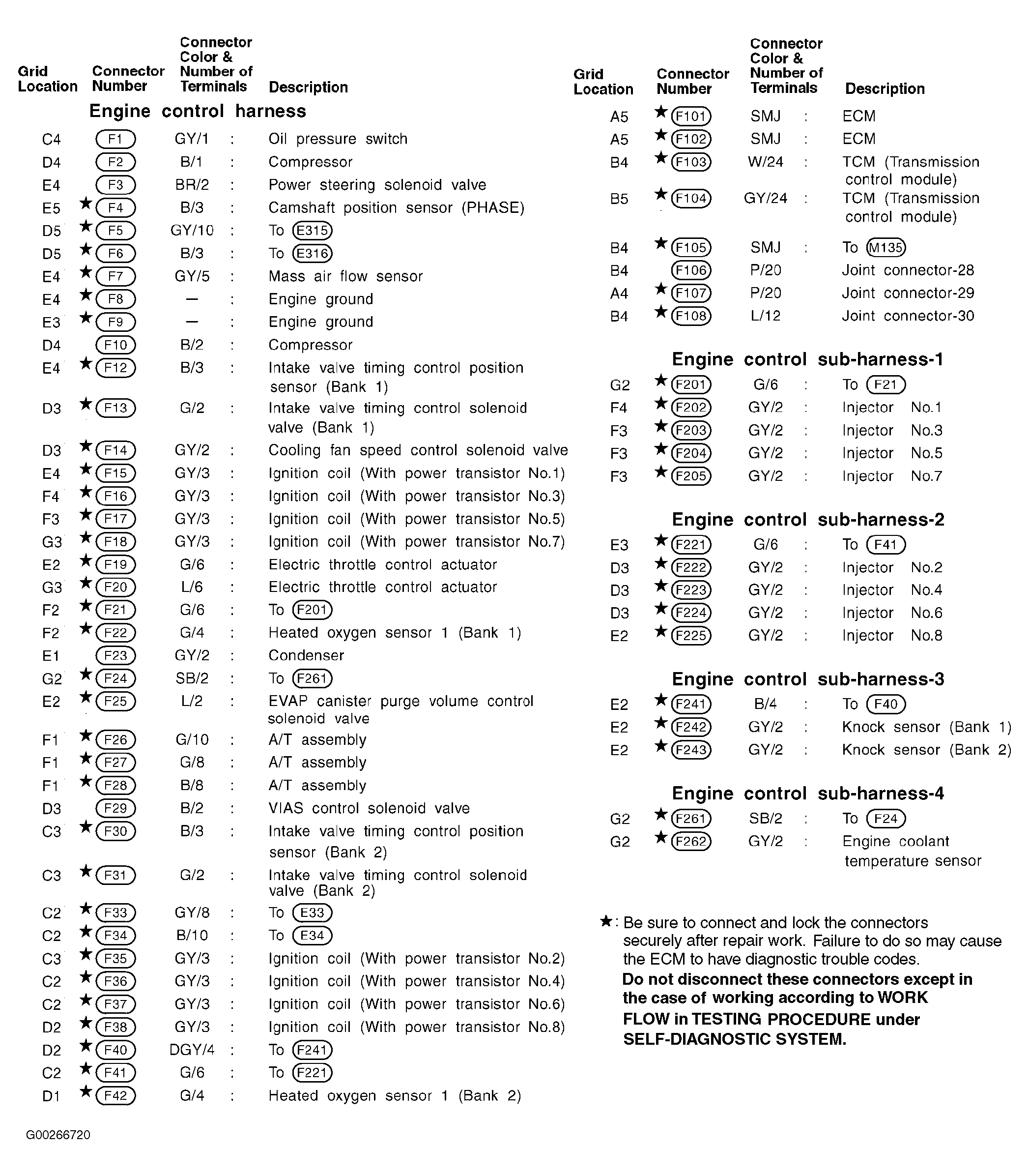

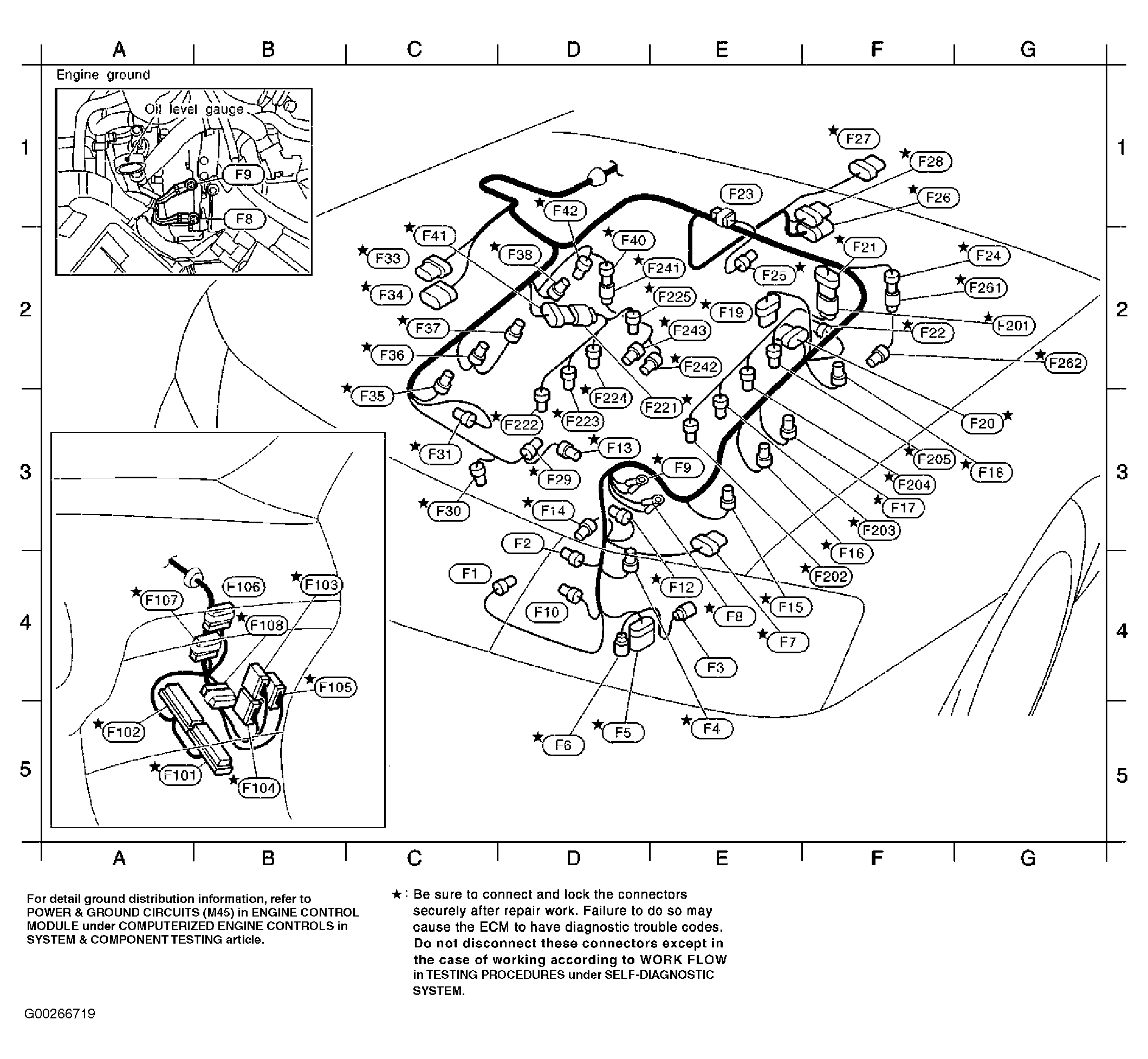

Fig 6: Locating Engine Control Harness Connectors (1 Of 2)
G00266719Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 7: Locating Engine Control Harness Connectors (2 Of 2)
G00266720Courtesy of NISSAN MOTOR CO., U.S.A.

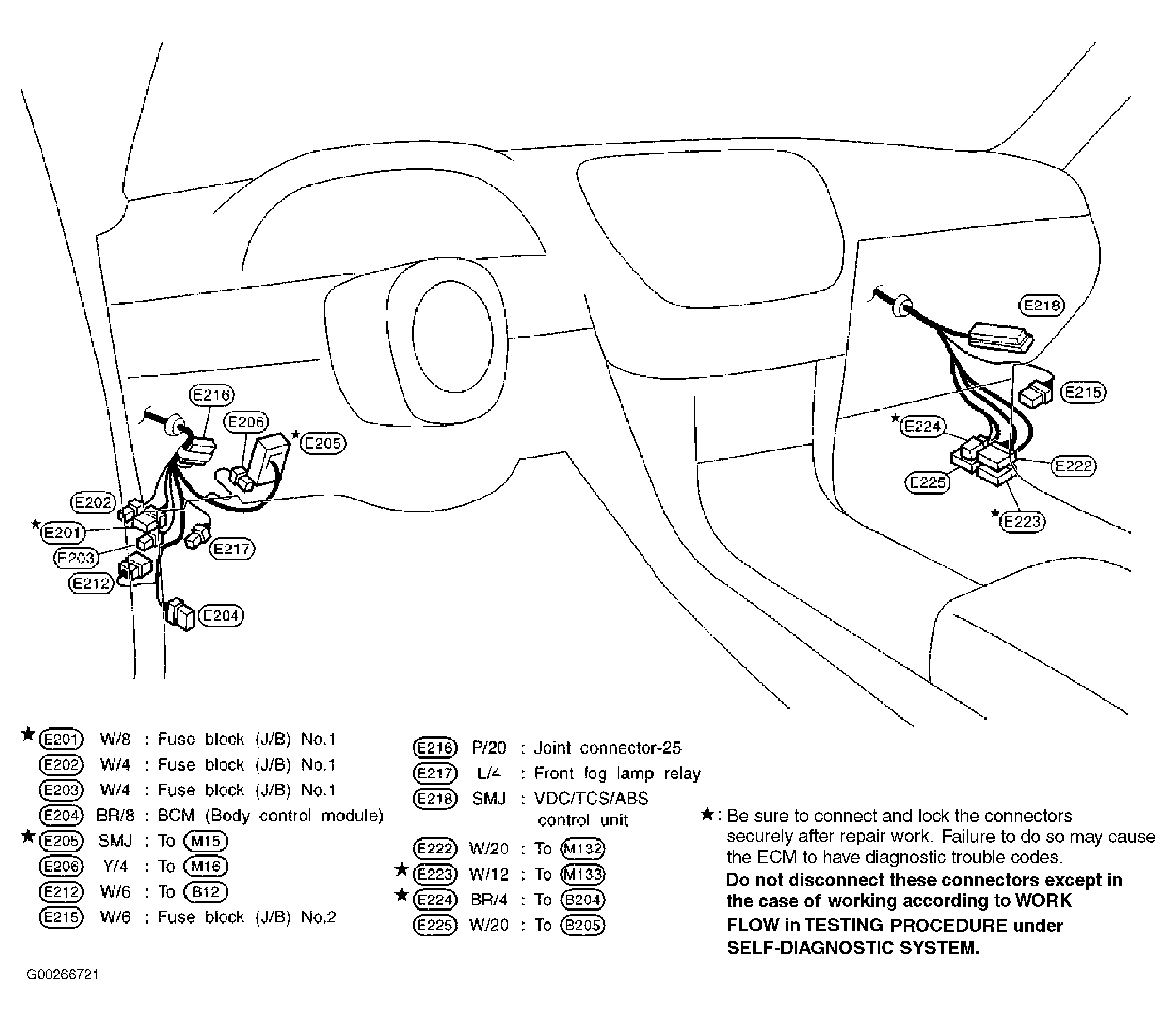

Fig 8: Locating Passenger Compartment Engine Control Related Component Connectors
G00266721Courtesy of NISSAN MOTOR CO., U.S.A.

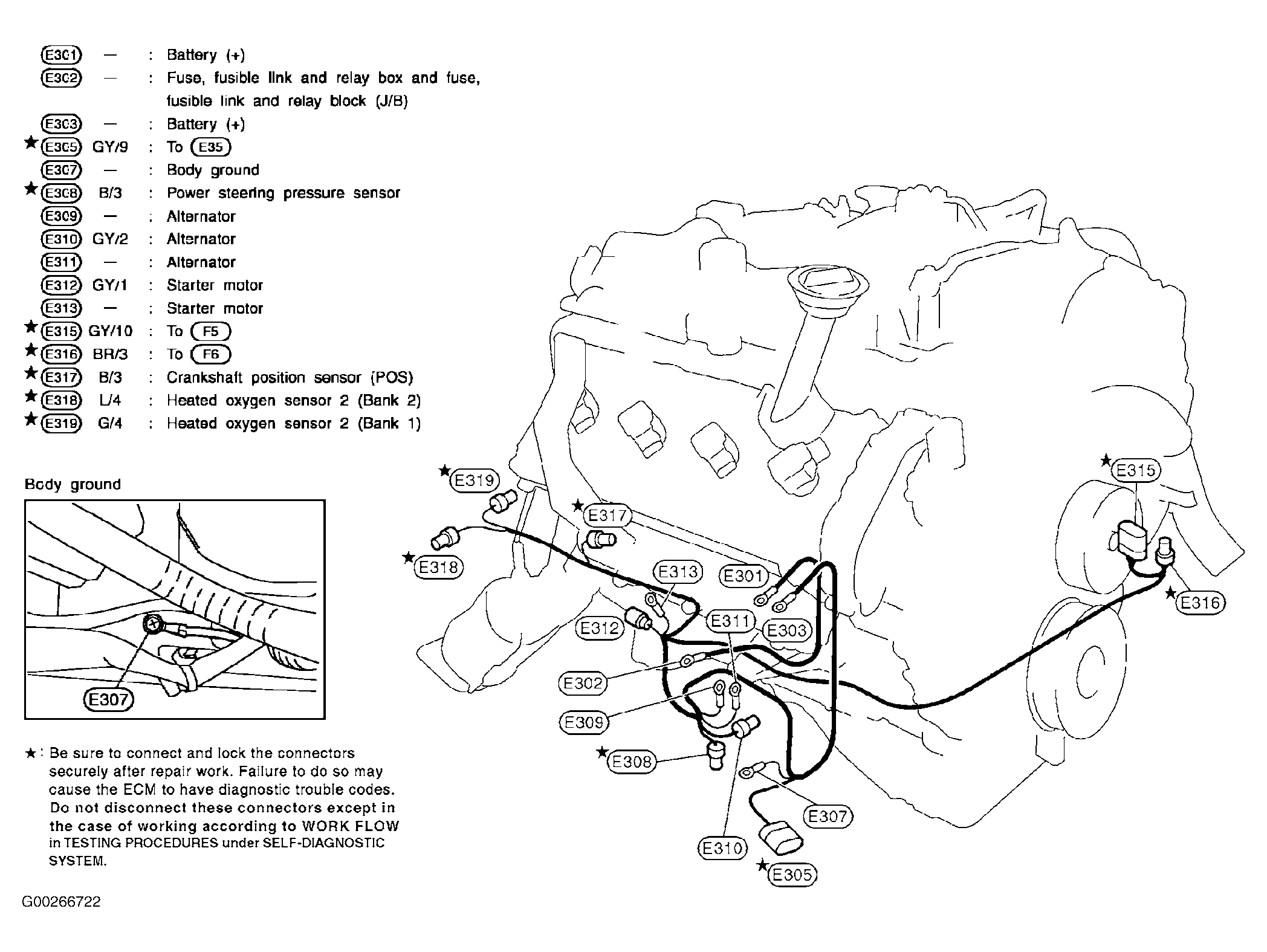

Fig 9: Locating Engine Harness Connectors
G00266722Courtesy of NISSAN MOTOR CO., U.S.A.
