Overall Function Test
For overall function test, see
Fig 1
.

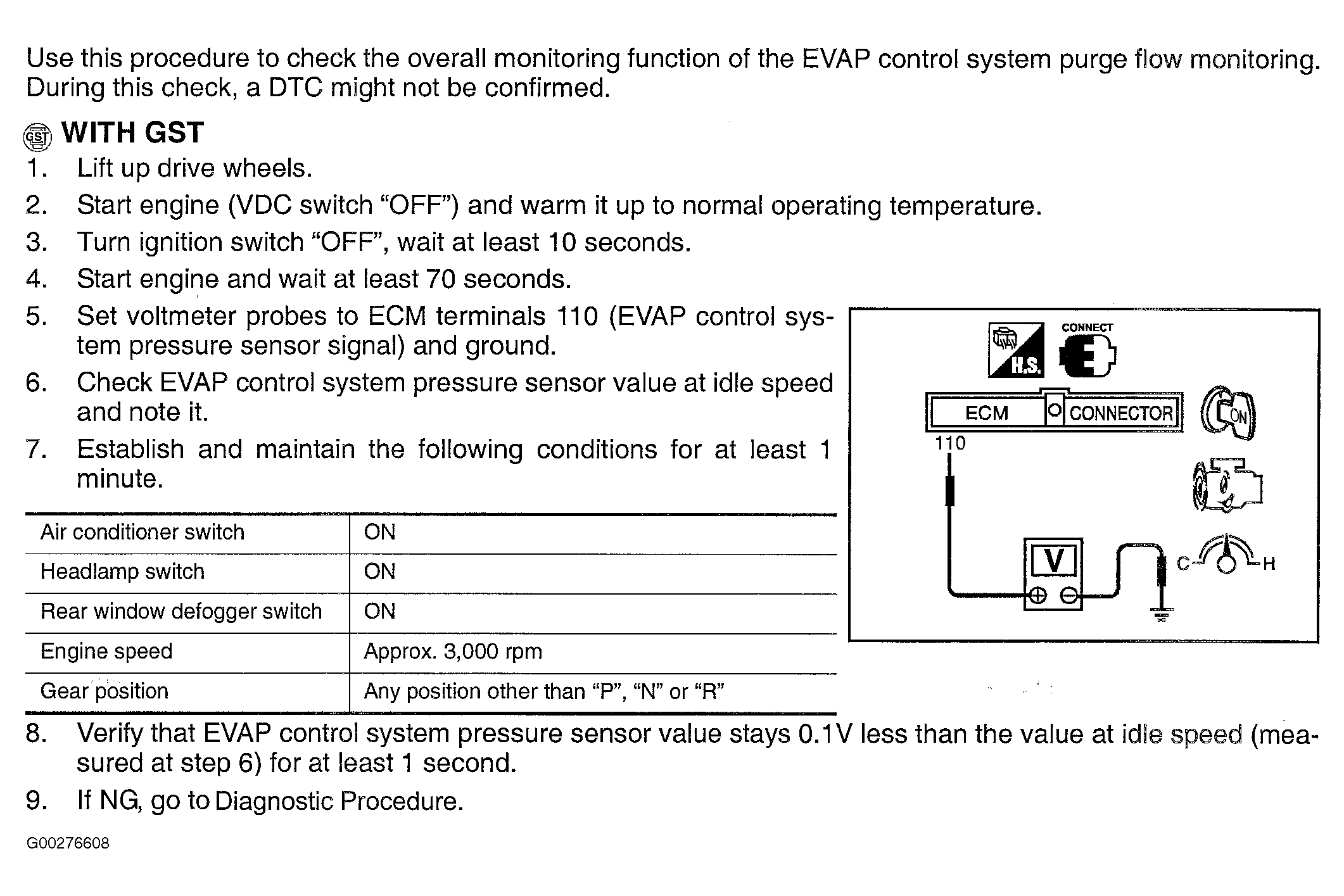

Fig 1: Overall Function Test
Courtesy of NISSAN MOTOR CO., U.S.A.
