DTC P0441: EVAP Control System
>>
System Description
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Description
For system description, see
Fig 1
.

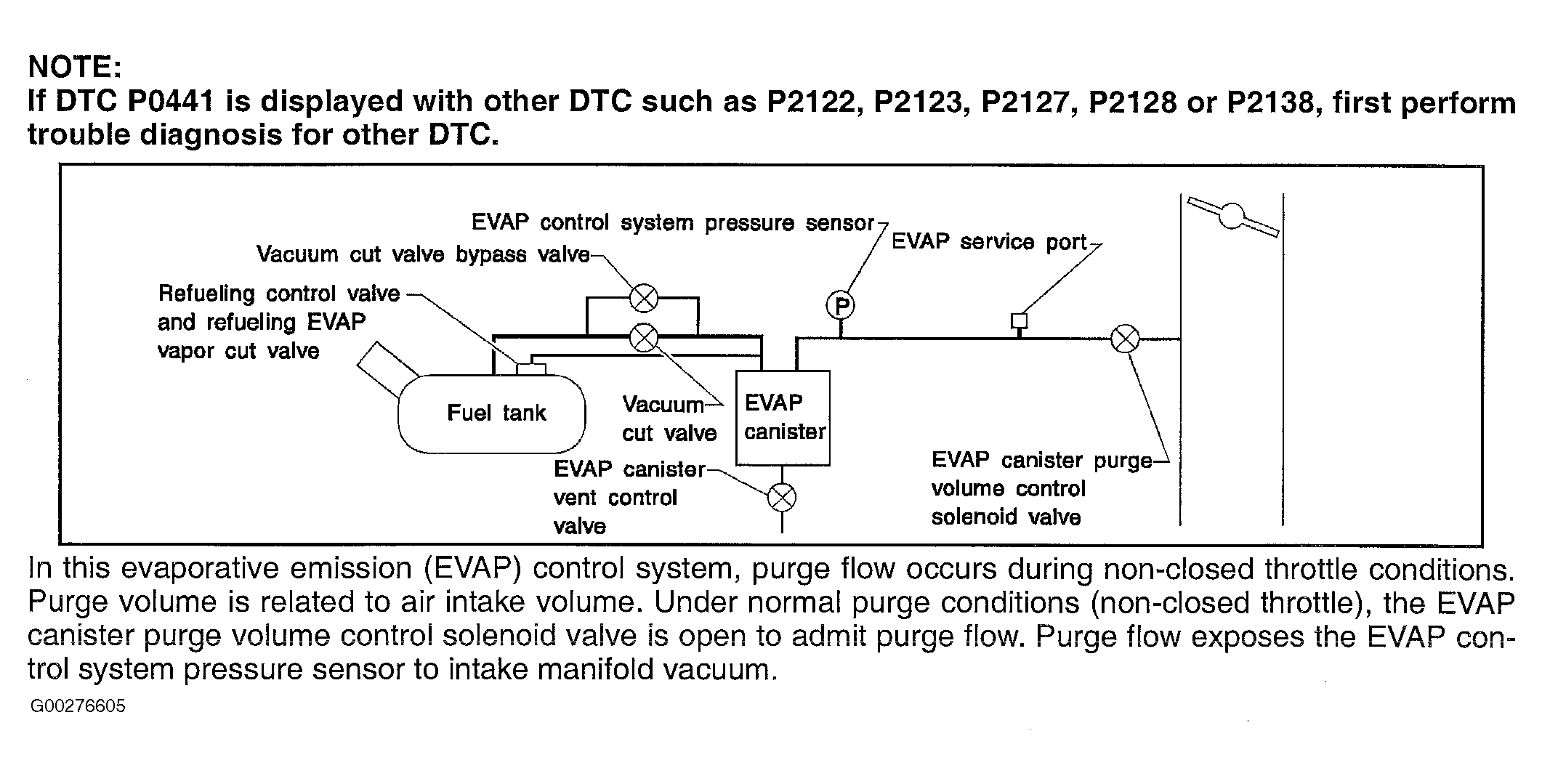

Fig 1: System Description
Courtesy of NISSAN MOTOR CO., U.S.A.
