DTC P0461: Fuel Level Sensor Function
>>
Overall Function Check
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Overall Function Check
For overall function check, see
Fig 1
.

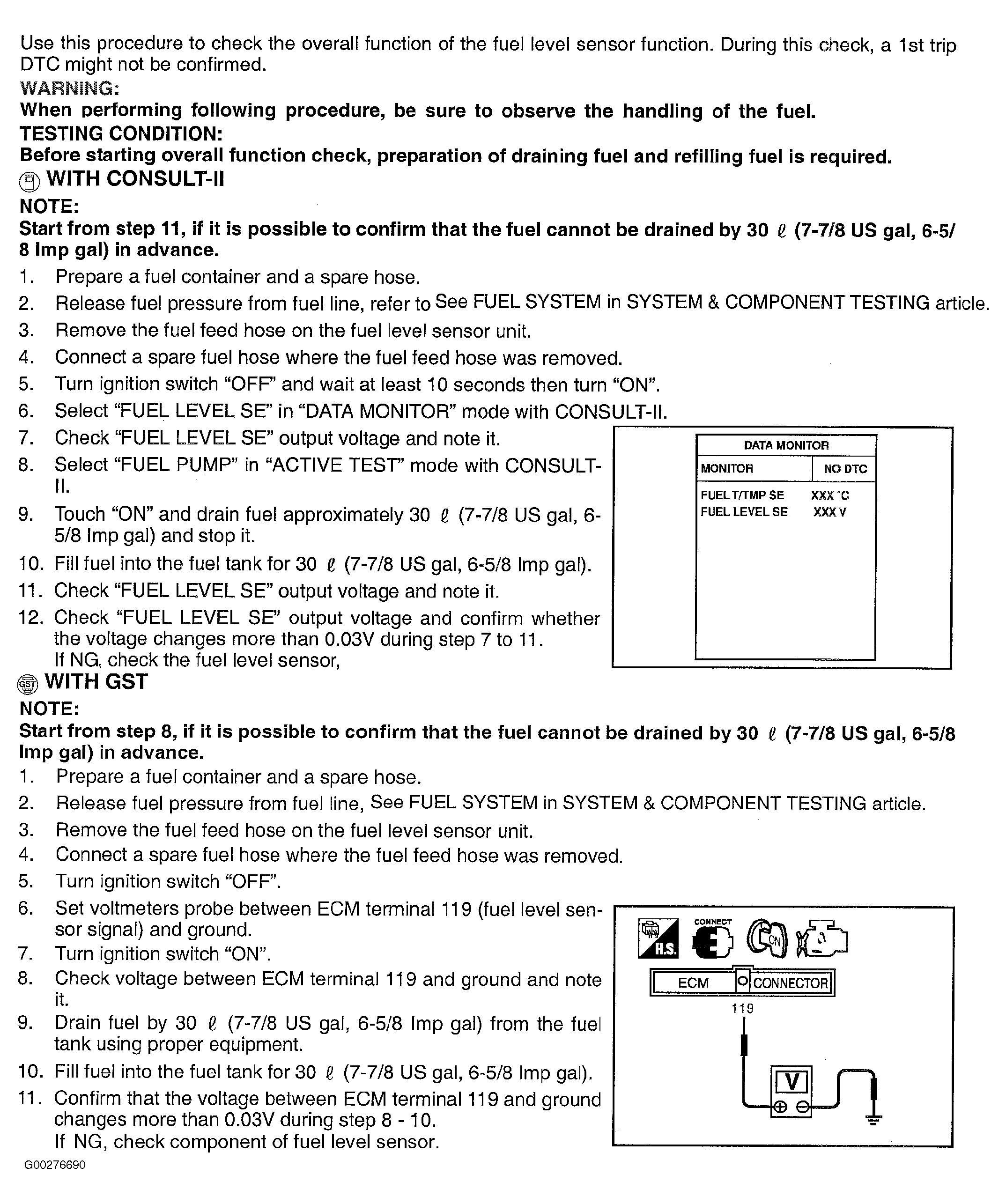

Fig 1: Overall Function Check
Courtesy of NISSAN MOTOR CO., U.S.A.
