DTC P0500: Vehicle Speed Sensor
>>
Overall Function Check & Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Overall Function Check & Diagnostic Procedure
For overall function check and diagnostic procedure, see

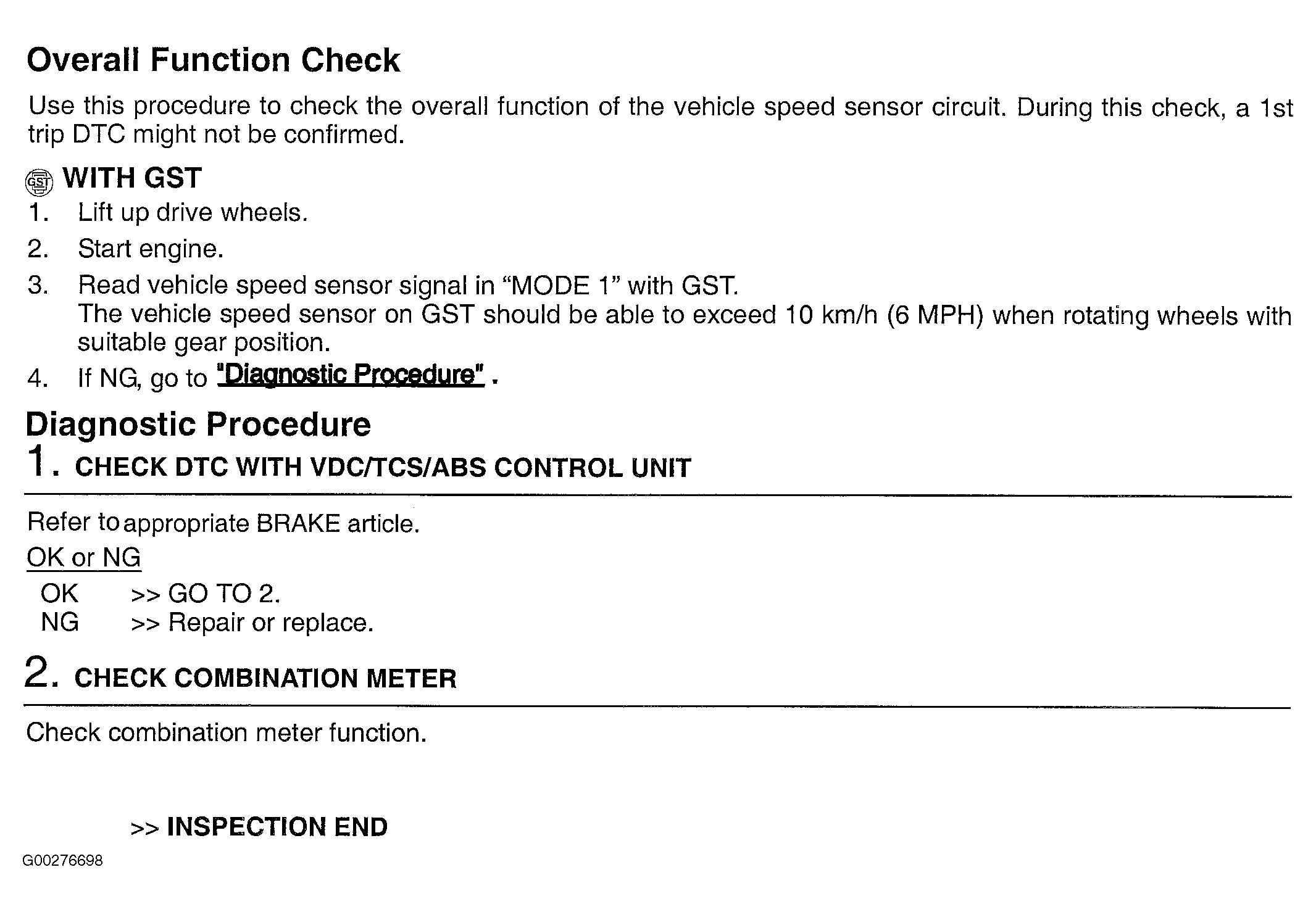

Fig 1
.
Fig 1: Overall Function Check & Diagnostic Procedure
Courtesy of NISSAN MOTOR CO., U.S.A.
