Component Inspection
For component inspection, see

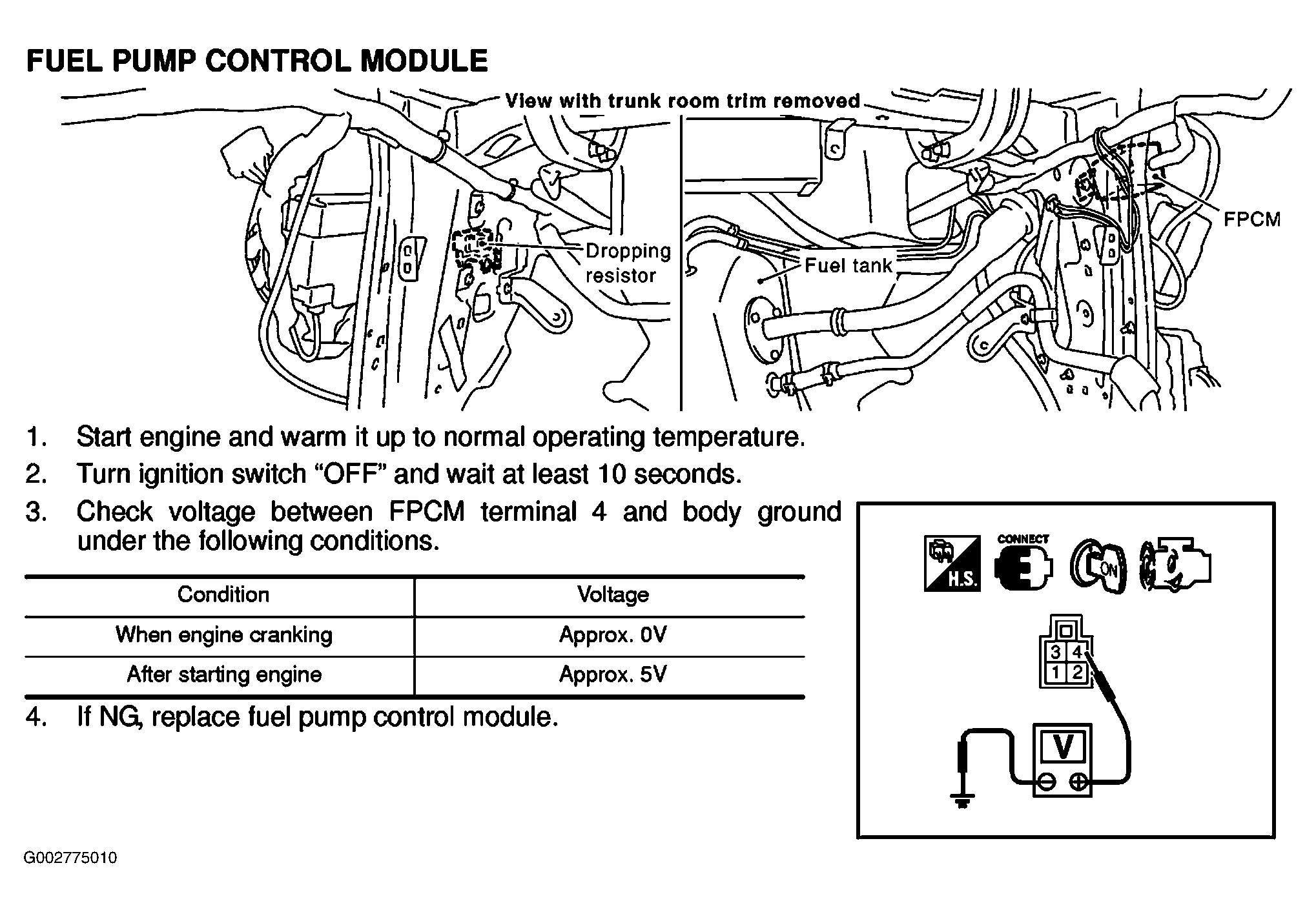

Fig 1
.
Fig 1: Component Inspection
Courtesy of NISSAN MOTOR CO., U.S.A.
